| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

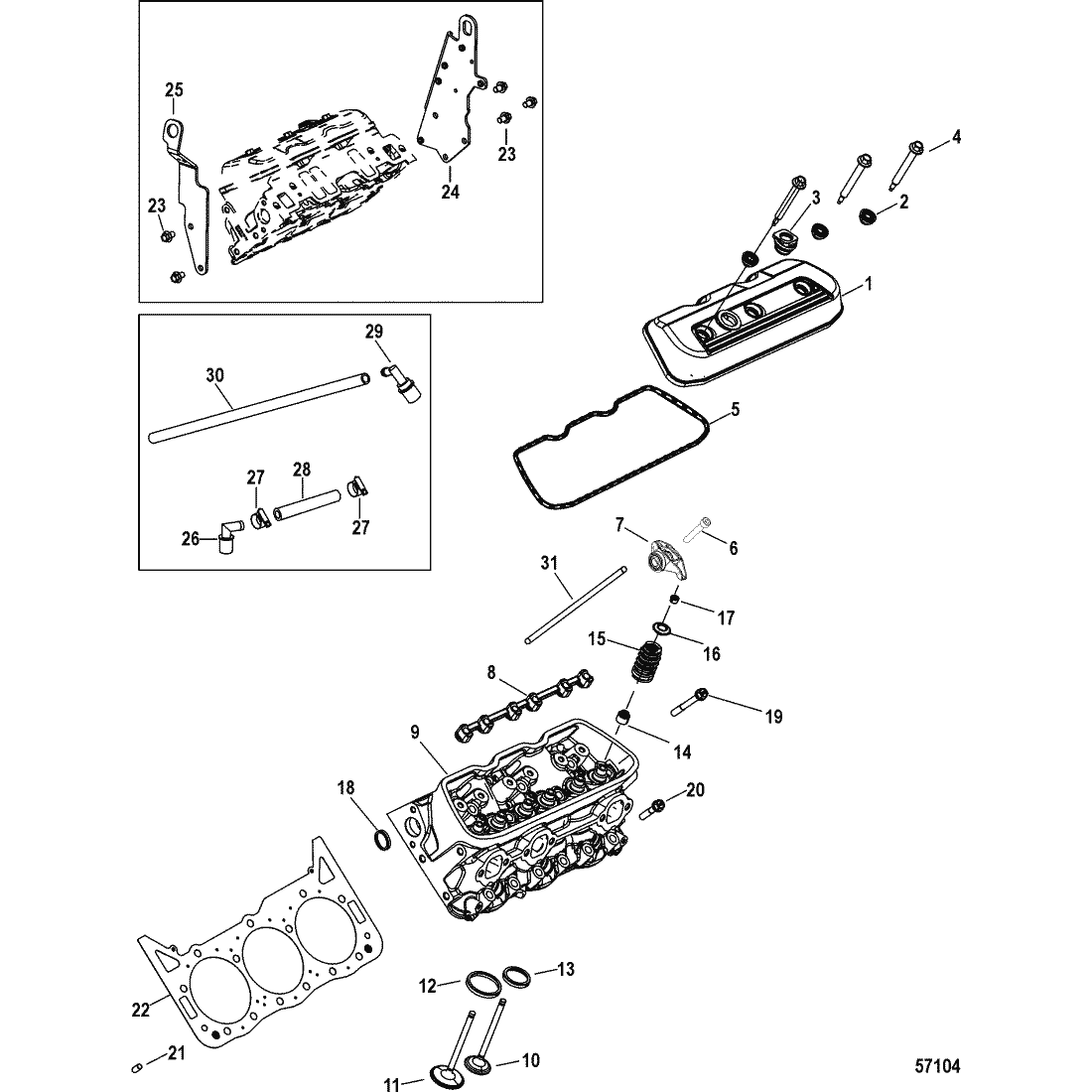

| 1 | 8M0095933 | COVER ASSEMBLY, Rocker | ACT |
|
$129.49 | $116.67 | 2 | ||
| 2 | 8M0069613 | --GROMMET | ACT | $3.69 | $3.59 | 6 | |||
| 3 | 8M0070507 | --GROMMET | ACT | $5.19 | $5.08 | 2 | |||
| 4 | 8M0069612 | --SCREW | ACT | $3.59 | $3.50 | 6 | |||
| 5 | 8M0069616 | --SEAL | ACT | $18.29 | $17.92 | 2 | |||
| 6 | 8M2024045 | SCREW, (M8 x 45) | ACT | $1.80 | $1.76 | 12 | |||
| 7 | 8M0095926 | ROCKER ARM | ACT | $36.49 | $35.85 | 12 | |||
| 8 | 8M0068783 | ALIGNMENT BAR | ACT | $9.89 | $9.66 | 2 | |||
| 9 | 8M0116266 | CYLINDER HEAD ASSEMBLY | 8M0095925 | SS |
|
$1,633.99 | $1,463.18 | 2 | |
| 10 | 8M0074362 | --VALVE, Exhaust | ACT | $21.99 | $21.53 | 6 | |||
| 11 | 8M0098000 | --VALVE, Intake | 8M0074361 | SS |
|
$18.29 | $17.92 | 6 | |
| 12 | NSS | --NOT SOLD SEPARATE, Valve Seat (Intake) |
|
$0.00 | $0.00 | 6 | |||
| 13 | NSS | --NOT SOLD SEPARATE, Valve Seat (Exhaust) |
|
$0.00 | $0.00 | 6 | |||
| 14 | 8M6004772 | --SEAL ASSEMBLY, Valve | 8M6055000 | SS |
|
$8.49 | $8.29 | 12 | |
| 15 | 8M6002386 | --SPRING | ACT | $7.09 | $6.93 | 12 | |||
| 16 | 8M6002848 | --RETAINER | 8M0076210 | NLA |
|
$5.69 | $5.56 | 12 | |
| 17 | 8M6002848 | --LOCK, Valve Stem | 8M0076211 | NLA |
|
$5.69 | $5.56 | 24 | |
| 18 | 8M6002071 | --PLUG, Expansion | ACT | $1.80 | $1.76 | 2 | |||
| 19 | 8M0074833 | SCREW, (M10 x 1.5 x 86) | ACT | $3.19 | $3.11 | 14 | |||
| 20 | 8M0074832 | SCREW, (M10 x 1.5 x 49) | ACT | $2.79 | $2.72 | 12 | |||
| 21 | 23784 | PIN, Dowel | ACT | $5.19 | $5.08 | 4 | |||
| 22 | 8M6002404 | GASKET | ACT | $37.99 | $37.32 | 2 | |||
| 23 | 8M0083541 | SCREW, (M10 x 16), Port Lifting Eye | ACT | $7.59 | $7.42 | 2 | |||
| 23 | 8M0083541 | SCREW, (M10 x 16), Starboard Lifting Eye | ACT | $7.59 | $7.42 | 3 | |||
| 23 | 8M0083541 | SCREW, (M10 x 16), Alignment Eye | ACT | $7.59 | $7.42 | 2 | |||
| NS | 8M0091684 | BRACKET, Port Front Lifting Eye | ACT | $33.99 | $33.31 | 1 | |||
| 24 | 8M0095440 | BRACKET, Starboard Rear Lifting Eye | ACT | $37.49 | $36.71 | 1 | |||
| 25 | 8M0091592 | BRACKET, Starboard Front Alignment Eye | ACT | $15.99 | $15.61 | 1 | |||
| 26 | 97850T | ELBOW, 90 Degree | ACT | $5.69 | $5.56 | 1 | |||
| 27 | 815504105 | CLAMP, Worm Gear (11-18 mm) | SS |
|
$0.00 | $0.00 | 2 | ||
| 28 | 8M0086022 | TUBING, (20.00 Inches Bulk) | 1589431 | SS |
|
$36.49 | $35.68 | 1 | |
| 29 | 8M2017060 | VALVE, PCV | ACT | $13.19 | $12.88 | 1 | |||
| 30 | 8M0105232 | HOSE, (.375 ID x .62) | 8M0096213 | NLA |
|
$6.99 | $6.83 | 1 | |
| 31 | 8M6002874 | PUSH ROD | ACT | $5.99 | $5.86 | 12 | |||
| - | 8M0114790 | LONGBLOCK ASSEMBLY | 8M0095517 | SS |
|
$9,857.14 | $8,828.56 | 1 |
