| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

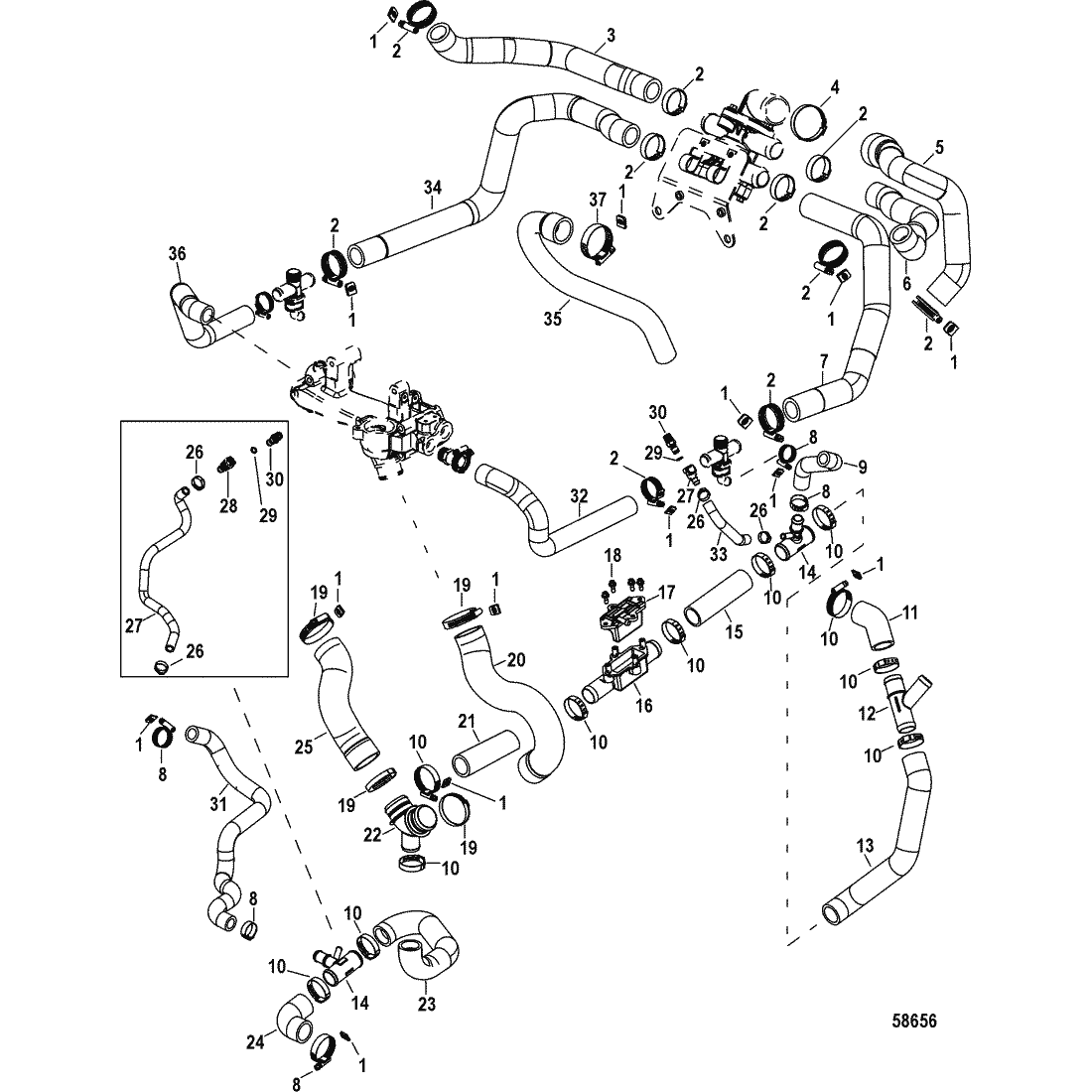

| 1 | 8M0074364 | CAP | ACT | $3.29 | $3.21 | AR | |||
| 2 | 815504216 | CLAMP, Worm Gear (1.56 Diameter) | ACT | $18.69 | $18.24 | 9 | |||
| 3 | 8M2023900 | HOSE, Connects to Upper Poppet Valve | ACT | $27.29 | $26.76 | 1 | |||
| 4 | 815504232 | CLAMP, Worm Gear | 815504226 | SS |
|
$8.89 | $8.68 | 1 | |
| 5 | 8M2023916 | HOSE, Y Fitting to Poppet Valve Cover | ACT | $24.49 | $23.98 | 1 | |||
| 6 | 8M0100541 | HOSE, Connects to Upper Poppet Valve | 8M0078725 | SS |
|
$21.49 | $21.03 | 1 | |
| 7 | 8M0078557 | HOSE, Connects to Lower Poppet Valve | ACT | $30.29 | $29.71 | 1 | |||
| 8 | 815504212 | CLAMP, Worm Gear | ACT | $5.89 | $5.76 | 5 | |||
| 9 | 8M0086961 | HOSE, Port Drain to Drain Fitting | ACT | $10.99 | $10.73 | 1 | |||
| 10 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter) | 815504222 | SS |
|
$5.69 | $5.56 | 12 | |
| 11 | 8M0116960 | HOSE, Steering Cooler to Y Fitting | 8M0082286 | SS |
|
$10.69 | $10.44 | 1 | |
| 12 | 8M2003728 | Y-FITTING | ACT | $7.99 | $7.81 | 1 | |||
| 13 | 8M0086924 | HOSE, Y Fitting to Drain Fitting | ACT | $26.79 | $26.27 | 1 | |||
| 14 | 8M0088893 | FITTING, Drain | ACT | $20.99 | $20.62 | 2 | |||
| 15 | 8M0087261 | HOSE, Drain Fitting to Strainer | ACT | $11.49 | $11.22 | 1 | |||
| 16 | 8M0095457 | STRAINER ASSEMBLY | ACT |
|
$52.49 | $50.26 | 1 | ||
| 17 | 8M0097249 | --COVER | ACT | $24.59 | $24.14 | 1 | |||
| 18 | 8M0086279 | SCREW, (M6) | ACT | $1.99 | $1.95 | 4 | |||
| 19 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.89 | $8.68 | 4 | |||
| 20 | 8M2023913 | HOSE, Y Fitting to Crossover | ACT | $37.99 | $37.20 | 1 | |||
| 21 | 8M0087038 | HOSE, Strainer to Distribution Housing | ACT | $12.19 | $11.90 | 1 | |||
| 22 | 863456A1 | HOSE ASSEMBLY | ACT | $112.99 | $106.02 | 1 | |||
| 23 | 8M2023909 | HOSE, Drain Fitting to Y Fitting | ACT | $31.39 | $30.77 | 1 | |||
| 24 | 8M0080675 | HOSE, Distribution Housing to Drain Fitting | ACT | $9.49 | $9.27 | 1 | |||
| 25 | 8M0117030 | HOSE, Y Fitting to Circ. Pump | 8M2023914 | SS |
|
$23.49 | $23.00 | 1 | |
| 26 | 815504210 | CLAMP, Worm Gear | ACT | $4.19 | $4.10 | 4 | |||
| 27 | 8M0080748 | HOSE, Starboard Drain Fitting | ACT | $10.19 | $9.95 | 1 | |||
| 28 | 862225 | FITTING | ACT | $19.09 | $18.63 | 2 | |||
| 29 | 627021 | O-RING, (.301 x .070) | ACT | $1.70 | $1.66 | 2 | |||
| 30 | 8M0180470 | FITTING | 862603 | SS |
|
$8.19 | $8.00 | 2 | |
| 31 | 8M0090099 | HOSE, Exhaust Manifold to Drain Fitting | ACT | $25.99 | $25.45 | 1 | |||
| 32 | 8M0088868 | HOSE, Crossover to Port Manifold | ACT | $24.89 | $24.39 | 1 | |||
| 33 | 8M0086911 | HOSE, Drain Fitting | ACT | $7.79 | $7.61 | 1 | |||
| 34 | 8M2023901 | HOSE, Connects to Poppet Valve; Stbd. Bottom | ACT | $40.99 | $40.26 | 1 | |||
| 35 | 807661 | HOSE, Transom to Cooler | ACT |
|
$66.99 | $64.29 | 1 | ||
| 36 | 8M0118129 | HOSE | 8M0078393 | SS |
|
$25.49 | $24.96 | 1 | |
| 37 | 815504220 | CLAMP, Worm Gear | ACT | $7.59 | $7.42 | 1 |
