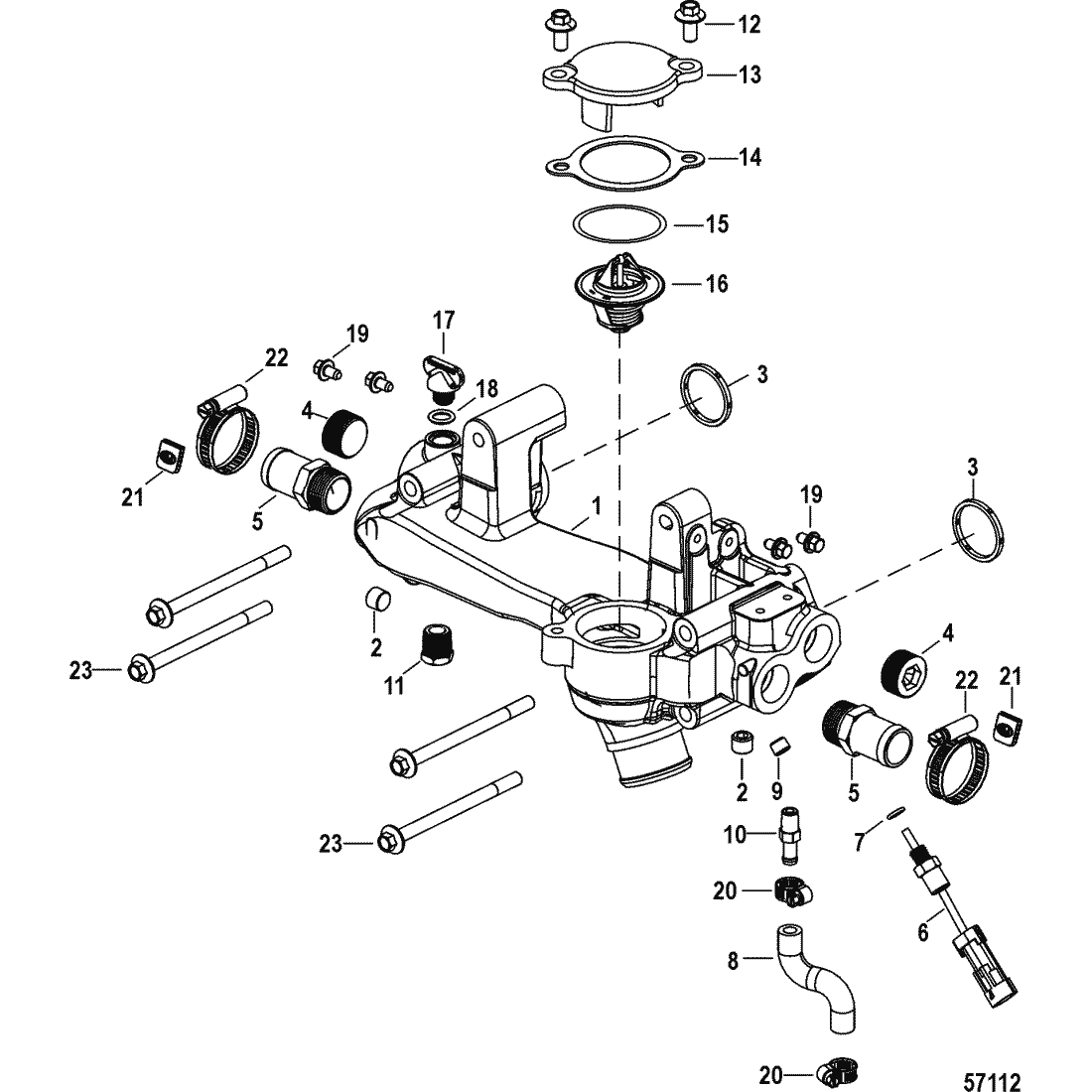

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0107034 | CROSSOVER | 8M0099057 | SS |
|
$477.49 | $456.15 | 1 | |
| 2 | 8M0180564 | --PLUG, (.250-18) | 73379 | SS |
|
$7.59 | $7.42 | 2 | |
| 3 | 8M0081836 | SEAL | ACT | $1.00 | $0.98 | 2 | |||
| 4 | 8M0204679 | FITTING, Pipe - Brass (.750-14) | 428611 | SS |
|
$10.99 | $10.73 | 2 | |
| 5 | 866725 | FITTING, Straight (.750-14) | ACT | $18.29 | $17.85 | 2 | |||
| 6 | 8M0148668 | SENSOR ASSEMBLY | 885342002 | SS |
|
$47.49 | $46.67 | 1 | |
| 7 | 896699 | --O-RING, (1.78 mm x .08 mm) | ACT | $12.49 | $12.19 | 1 | |||
| 8 | 8M0090430 | HOSE, FSM to Crossover | ACT | $5.29 | $5.17 | 1 | |||
| 9 | 390721 | PLUG, Pipe (.125-27) Brass | ACT | $9.29 | $9.07 | 1 | |||
| 10 | 8M0085864 | FITTING | ACT | $6.59 | $6.44 | 1 | |||
| 11 | 8M0180565 | PLUG, Pipe (.375-18) Brass | 32803 | SS |
|
$7.99 | $7.81 | 1 | |
| 12 | 8M0153661 | SCREW, (M8 x 16) | 4009516 | SS |
|
$2.39 | $2.33 | 2 | |
| 13 | 8M0073879 | CAP | ACT | $27.39 | $26.84 | 1 | |||
| 14 | 8M0079167 | GASKET | ACT | $1.20 | $1.18 | 1 | |||
| 15 | 8M0238323 | GASKET | 806871 | SS |
|
$10.20 | $9.95 | 1 | |
| 16 | 8M0089715 | THERMOSTAT, 60 Degree C (140 Degree F) | ACT | $27.69 | $27.17 | 1 | |||
| 17 | 8M0119211 | PLUG ASSEMBLY, (.500-13) Blue | 806608A02 | SS |
|
$10.19 | $9.95 | 1 | |
| 18 | 26802 | --O-RING, (.424 x .103) | ACT | $2.89 | $2.82 | 1 | |||
| 19 | 8M2600010 | SCREW, (M6 x 10), RWC Cover Bracket | 892454010 | SS |
|
$1.00 | $0.98 | 4 | |
| 20 | 8M0188618 | CLAMP, Worm Gear (11-18 mm) | 815504105 | SS |
|
$4.09 | $4.00 | 2 | |
| 21 | 8M0074364 | CAP | ACT | $3.29 | $3.21 | AR | |||
| 22 | 815504216 | CLAMP, Worm Gear (1.56 Diameter) | ACT | $18.69 | $18.24 | 4 | |||
| 23 | 40095110 | SCREW, (M8 x 110) | ACT | $2.39 | $2.33 | 4 |
