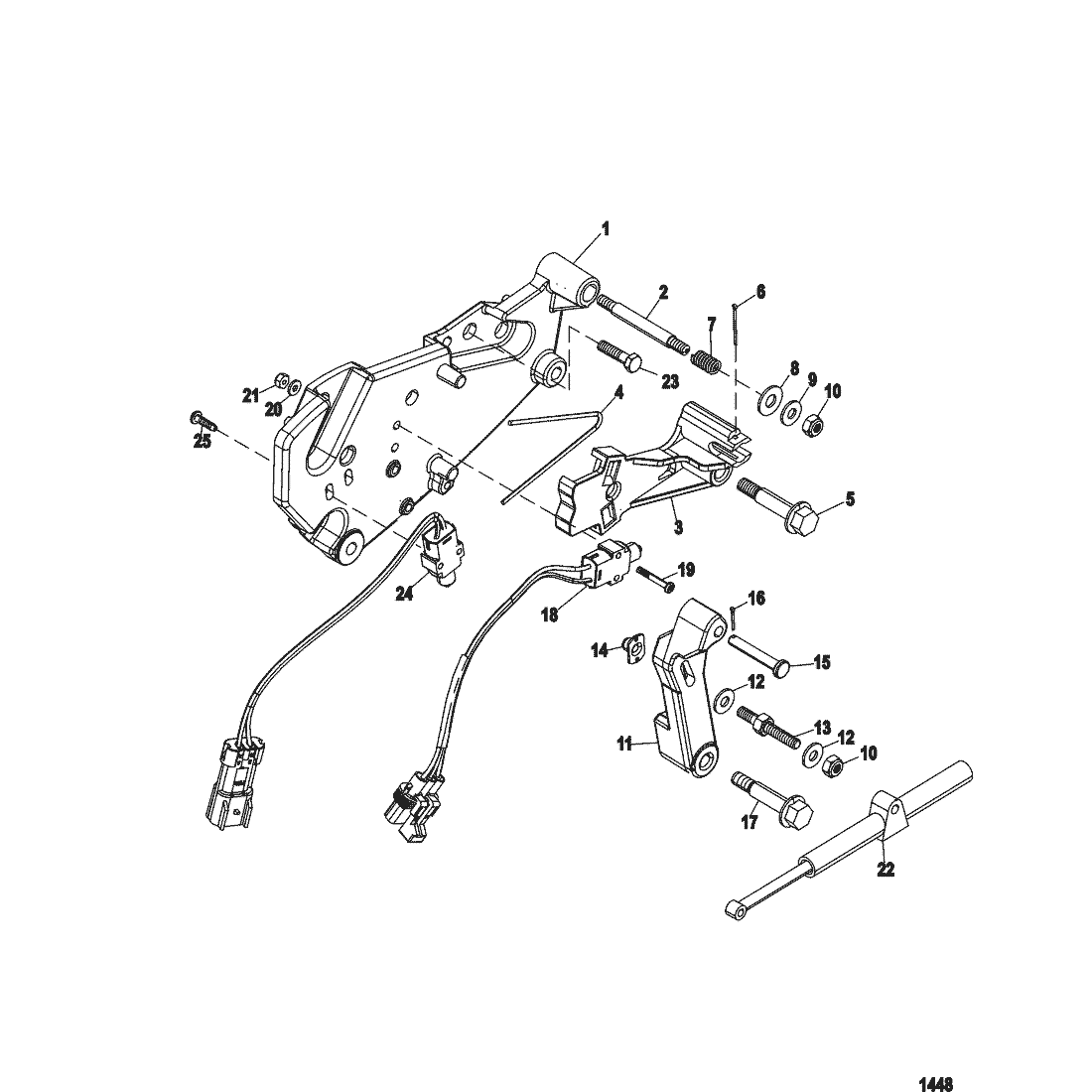

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807962A15 | BRACKET ASSEMBLY | 807962A10 | SS |
|
$166.99 | $150.18 | 1 | |
| 2 | 865149A02 | --STUD, (.250 x 2.870) | 8140021 | SS |
|
$10.69 | $10.44 | 1 | |
| 3 | 865433A02 | LEVER ASSEMBLY, Actuating | 13051A8 | SS |
|
$39.99 | $39.26 | 1 | |
| 4 | 862850 | --SPRING | ACT | $19.69 | $19.21 | 1 | |||
| 5 | 8M0207774 | --SCREW, (.312-18 x 1.843), Shoulder | 13743 | SS |
|
$10.69 | $10.44 | 1 | |
| 6 | 8M0214922 | COTTER PIN | 32857 | SS |
|
$3.79 | $3.69 | 1 | |
| 7 | 8M0207784 | SPRING | 98880 | SS |
|
$8.29 | $8.10 | 1 | |
| 8 | 56720 | WASHER, (.330 x .750 x .060) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 9 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 10 | 8267119 | NUT, (.250-28) | ACT | $2.59 | $2.53 | 2 | |||
| 11 | 13898T06 | LEVER ASSEMBLY, Shift | 863911A4 | SS |
|
$58.99 | $55.33 | 1 | |
| 12 | 35462 | --WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 2 | |||
| 13 | 865393A02 | --STUD, (.250-28 x 1.90) | 961123 | SS |
|
$8.39 | $8.20 | 1 | |
| 14 | 63341 | --TEE NUT | ACT | $2.79 | $2.72 | 1 | |||
| 15 | 814001 | --PIN, Clevis | ACT | $13.89 | $13.56 | 1 | |||
| 16 | 210711 | --COTTER PIN | 21071 | SS |
|
$3.69 | $3.59 | 1 | |
| 17 | 8M0207774 | SCREW, (.312-18 x 1.843), Shoulder | 13743 | SS |
|
$10.69 | $10.44 | 1 | |
| 18 | 8M0052935 | SWITCH ASSEMBLY, Shift Interrupt | 808009A2 | SS |
|
$64.49 | $60.68 | 1 | |
| 19 | 860077 | SCREW, (#6-32 x 1.00) | ACT | $1.70 | $1.66 | 2 | |||
| 20 | 11303 | WASHER | ACT | $4.09 | $4.00 | 2 | |||
| 21 | 8M0207777 | NUT, (#6-32) | F1669 | SS |
|
$6.59 | $6.44 | 2 | |
| 22 | 813995A1 | GUIDE ASSEMBLY, Spring | ACT | $46.99 | $45.99 | 1 | |||
| 23 | 657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | ACT | $1.70 | $1.66 | 3 | |||
| 24 | 8M0052936 | SWITCH ASSEMBLY, Gear Indication | 808009A3 | SS |
|
$59.99 | $56.35 | 1 | |
| 25 | 88904 | SCREW, (#8-18 x .620) | ACT | $1.82 | $1.79 | 2 |
