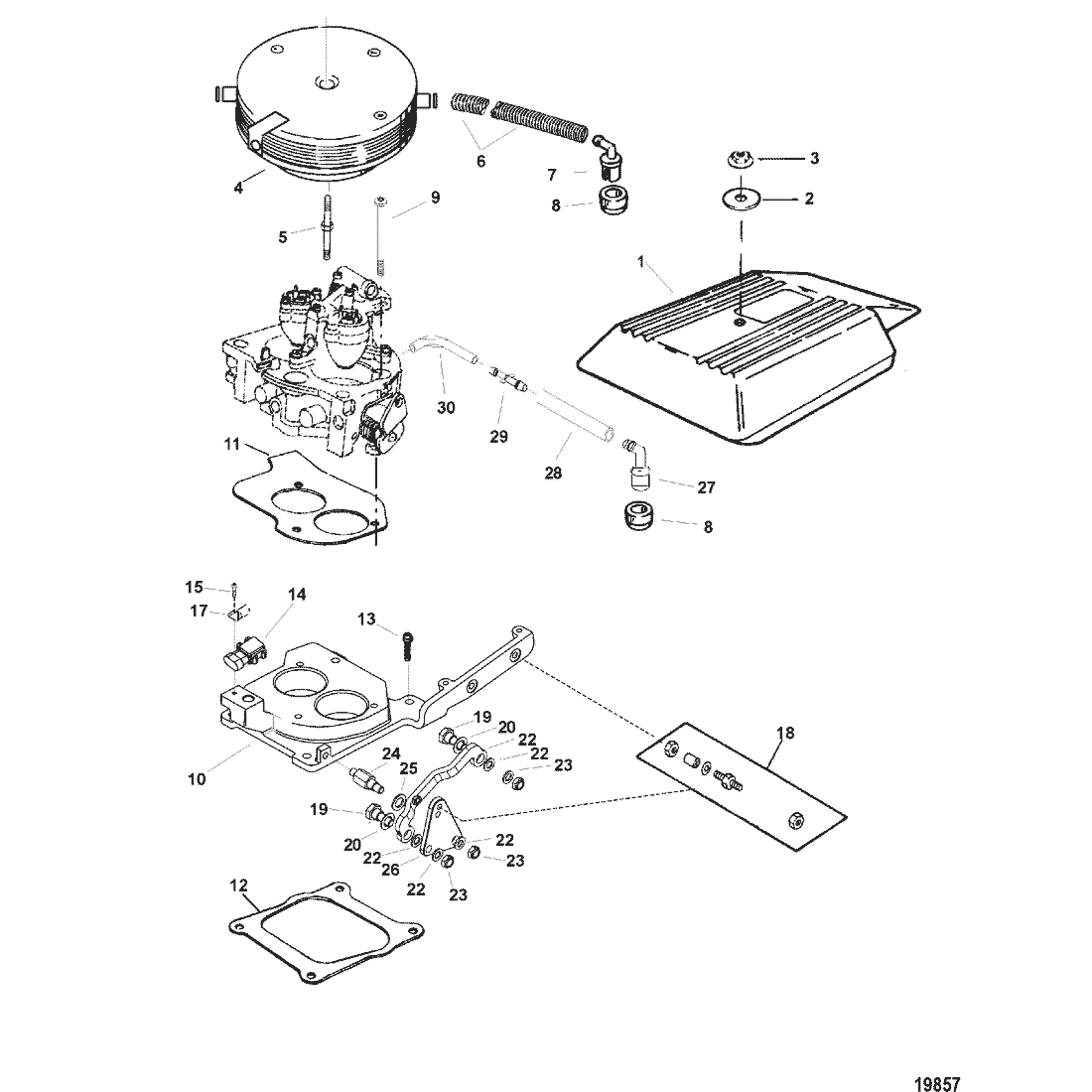

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18484A3 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 3 | 826709109 | NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 4 | 806637A1 | FLAME ARRESTOR | 807693T | SS |
|
$0.00 | $0.00 | 1 | |
| 4 | 806637A1 | FLAME ARRESTOR | 806637T1 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 806703 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0086022 | HOSE, (16.50 Inches Bulk) | 1589424 | SS |
|
$36.49 | $35.68 | 1 | |
| 7 | 97850T | ELBOW, 90 Degree, Breather | 97850 | SS |
|
$5.69 | $5.56 | 1 | |
| 8 | 827152 | GROMMET | ACT | $17.89 | $17.52 | 2 | |||
| 9 | 805390 | SCREW, (.312-18 x 2.250) | ACT | $8.79 | $8.59 | 3 | |||
| 10 | 861197A2 | ADAPTOR ASSEMBLY, TBI | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 806640 | --GASKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 807756 | --GASKET | ACT | $10.89 | $10.63 | 1 | |||
| 13 | 807717 | SCREW, (.312-18 x .750) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 14 | 8M0186195 | SENSOR ASSEMBLY, Manifold Air Pressure | 861249A1 | NLA |
|
$317.49 | $298.84 | 1 | |
| 15 | 821579 | SCREW, (#10-24 x .500) | ACT | $4.79 | $4.69 | 1 | |||
| 16 | 861198 | CLIP | ACT | $5.99 | $5.86 | 1 | |||
| 17 | 97477A3 | STUD KIT | ACT | $33.19 | $32.57 | 2 | |||
| 18 | 806946 | BOLT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 861854 | WASHER, (.453 x .750 x .032) Stainless Steel | ACT | $4.19 | $4.10 | 2 | |||
| 20 | 807097T | CONNECTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 5 | |||
| 22 | 826709111 | NUT, (.312-24) | 45592 | SS |
|
$4.49 | $4.39 | 3 | |
| 23 | 806915 | SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 79552 | WASHER, (.453 x .750 x .062) Stainless Steel | ACT | $2.97 | $2.92 | 1 | |||
| 25 | 806916T | PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 806118 | VALVE, PVC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 8M0062321 | HOSE, (33.00 Inches Bulk) (3/8 IN. I.D.) | 86197763 | SS |
|
$53.49 | $51.38 | 1 | |
| 28 | 808061 | CONNECTOR, Hose | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 8M0214996 | HOSE, (.2187 x .440) (7/32 IN. I.D.) | 80804762 | SS |
|
$30.79 | $30.20 | 1 | |
| - | 807756A96 | GASKET SET, Engine Overhaul | ACT | $690.99 | $649.96 | 1 |
