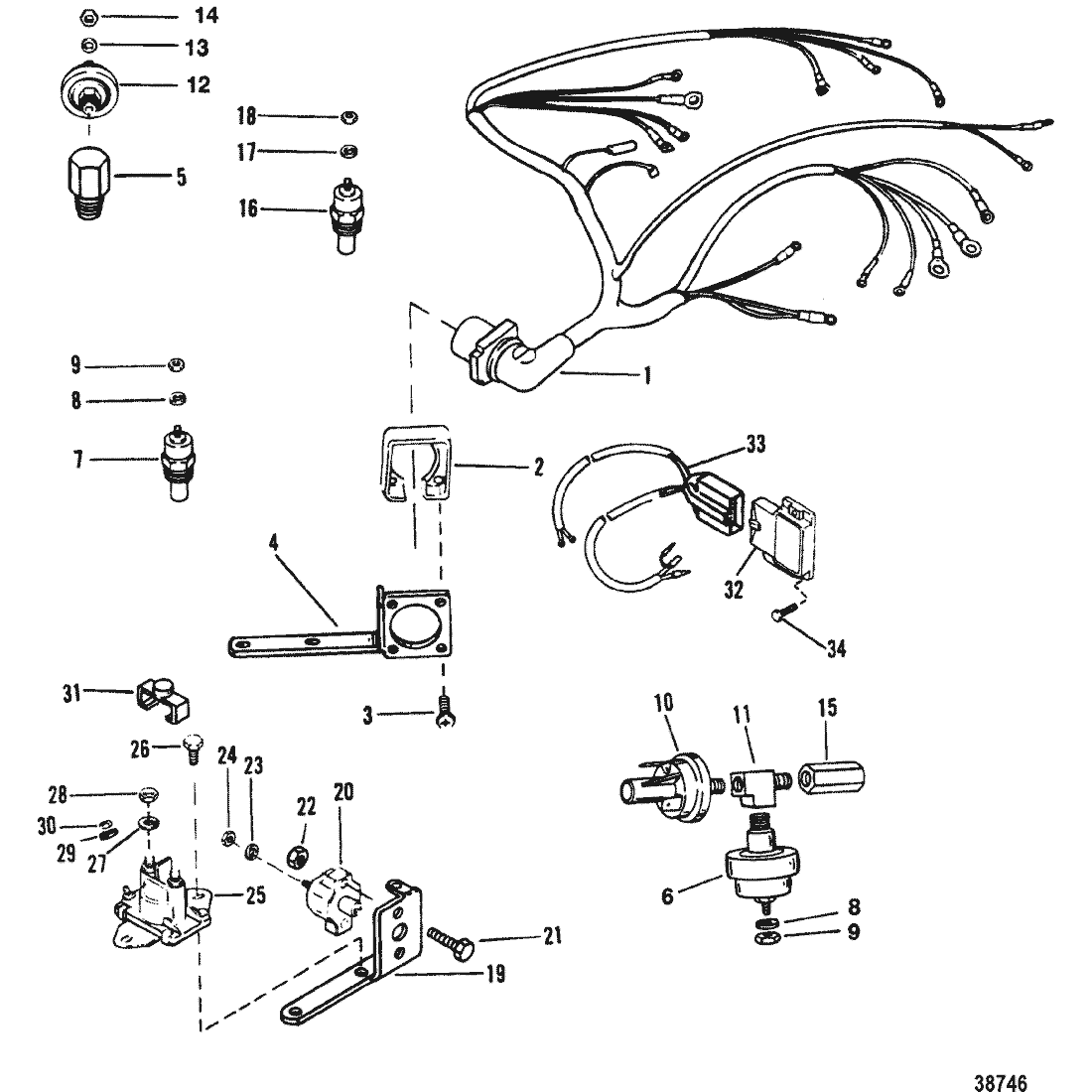

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805369A5 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 806217A8 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 26079A2 | PLATE KIT, Wire Harness Mount | ACT |
|
$29.99 | $29.38 | 1 | ||
| 3 | 15001 | --SCREW, (#8-16 x .875) | ACT | $3.29 | $3.21 | 4 | |||
| 4 | 805383T | BRACKET, Harness Mounting | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8053281 | FITTING, Elbow (90 Degree - .125) | ACT | $18.09 | $17.65 | 1 | |||
| 6 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 815425 | SS |
|
$133.49 | $125.49 | 1 | |
| 6 | 37293T | SENDER ASSEMBLY, Oil Pressure (DUAL) | 37293 | SS |
|
$205.99 | $193.68 | OPT. | |
| 7 | 806490T | SENDER ASSEMBLY, Water Temperature | 97257A1 | SS |
|
$41.49 | $40.58 | 1 | |
| 7 | 49734 | SENDER ASSEMBLY, Water Temperature (DUAL) | 49734A1 | SS |
|
$90.49 | $86.97 | OPT. | |
| 8 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 9 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 10 | 8M0210755 | SWITCH, Oil Pressure (FUEL SYSTEM) | 805024 | SS |
|
$58.99 | $56.75 | 1 | |
| 11 | 286241 | FITTING, T | 28624 | SS |
|
$15.09 | $14.73 | 1 | |
| 12 | 805605A1 | SWITCH ASSEMBLY (AUDIO WARNING SYSTEM) | ACT |
|
$42.49 | $41.65 | 1 | ||
| 13 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 1 | |||
| 14 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 1 | |||
| 15 | 805059 | FITTING | ACT | $18.19 | $17.75 | 1 | |||
| 16 | 48952 | SWITCH, Water Temperature (PUSH-ON CONNECTION) | 806951 | SS |
|
$137.99 | $129.72 | 1 | |
| 16 | 48952 | SWITCH ASSEMBLY (NUT CONNECTION) | ACT | $137.99 | $129.72 | 1 | |||
| 17 | 26996 | LOCKWASHER, (#10) Stainless Steel (NUT CONNECTION) | ACT | $1.20 | $1.18 | 1 | |||
| 18 | 45076 | NUT, (#10-32) Brass | ACT | $1.80 | $1.76 | 1 | |||
| 19 | 899719T01 | BRACKET, Electrical | 805368T | SS |
|
$44.99 | $44.04 | 1 | |
| 20 | 11178A01 | BREAKER, Circuit - 50 Ampere | 11178 | SS |
|
$121.49 | $114.19 | 1 | |
| 21 | 45862 | SCREW, (#10-32 x .875) | ACT | $1.40 | $1.37 | 2 | |||
| 22 | 61356 | NUT, (#10-32) Reduced Hex | ACT | $3.29 | $3.21 | 2 | |||
| 23 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 24 | 68219 | NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 25 | 8M0185622 | SOLENOID, Starter | 96158 | SS |
|
$41.99 | $41.07 | 1 | |
| 26 | 805564 | SCREW, (.250-20 x .750) | ACT | $1.70 | $1.66 | 3 | |||
| 27 | 26992 | LOCKWASHER, (.250) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 28 | 94330 | NUT, (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 29 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 30 | 68219 | NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 31 | 97861 | INSULATOR | ACT | $5.19 | $5.08 | 1 | |||
| 32 | 15247T02 | IGNITION MODULE | 805361T1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 33 | 805363A1 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 12110 | SCREW, (#6-32 x .750) | ACT | $1.80 | $1.76 | 2 |
