- Change: The latest replacement standard pistons (PN 735-9686) for these engines uses a different set of piston rings. The latest piston's oil ring groove is not as deep as the older version.
- Replacement Parts: The latest replacement piston will be shipped with a set of piston rings.

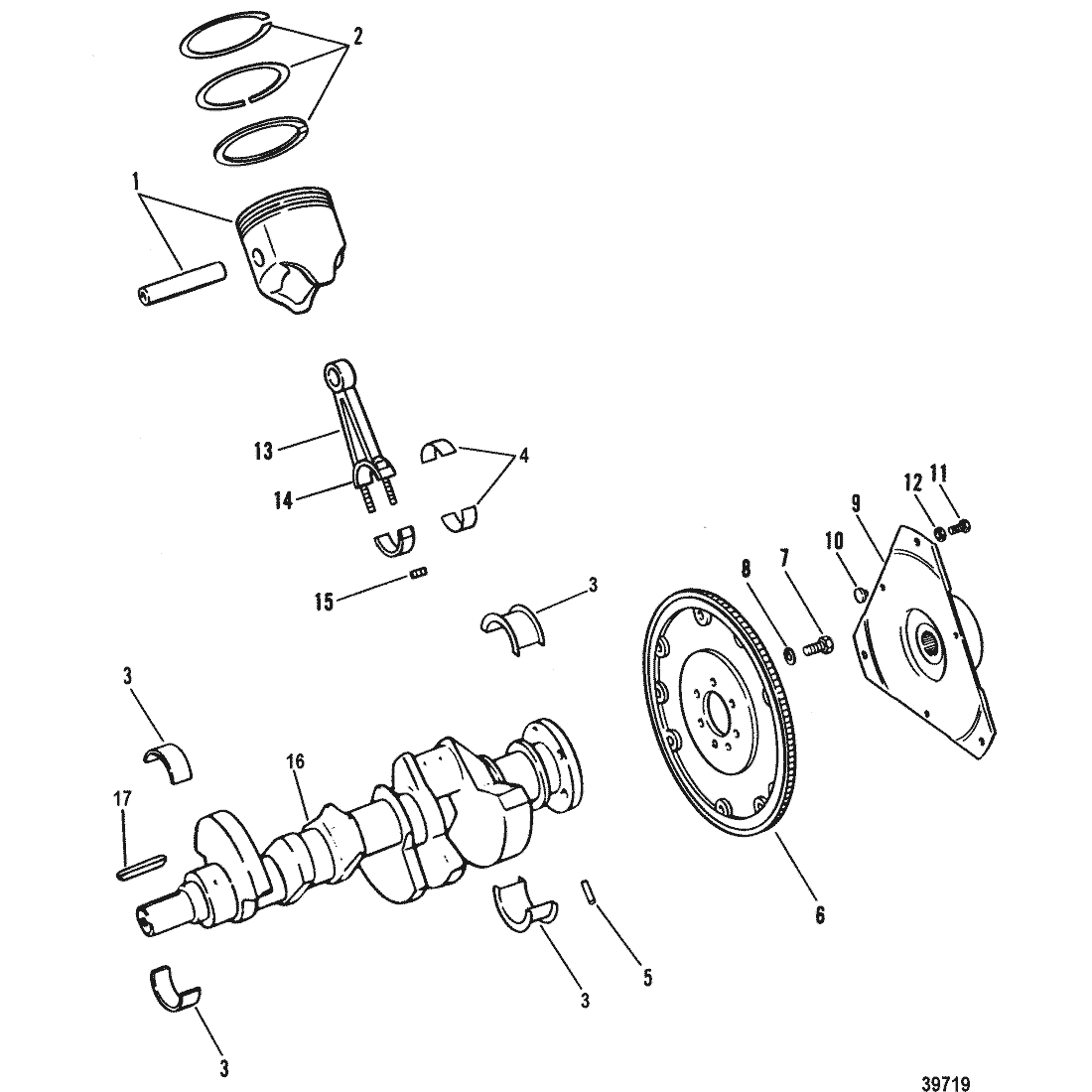

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 850097 | PISTON ASSEMBLY (Standard) | SS |
 |
$0.00 | $0.00 | 6 | ||
| 1 | 850098 | PISTON ASSEMBLY (.030 O.S.) | SS |
|
$0.00 | $0.00 | AR | ||
| 2 | 17464 | RING SET, Piston (Standard) | ACT |
|
$49.42 | $48.53 | 6 | ||
| 2 | 17465 | RING, Piston (.030 O.S.) | ACT | $38.58 | $37.89 | AR | |||
| 3 | 818465 | BEARING SET, 5 Pair (Standard) | ACT | $157.42 | $148.24 | 1 | |||
| 3 | 818466 | BEARING SET, 5 Pair (.001 U.S.) | ACT | $116.58 | $109.79 | AR | |||
| 3 | 818467 | BEARING SET, 5 Pair (.010 U.S.) | ACT | $129.17 | $121.64 | AR | |||
| 3 | 818468 | BEARING SET, 5 Pair (.020 U.S.) | ACT | $116.58 | $109.79 | AR | |||
| 4 | 11992 | BEARING (Standard - PAIR) | SS |
|
$0.00 | $0.00 | 6 | ||
| 4 | 11993 | BEARING (.001 U.S. - PAIR) | ACT | $110.42 | $103.98 | AR | |||
| 4 | 811858 | BEARING (.010 U.S. - PAIR) | SS |
|
$0.00 | $0.00 | AR | ||
| 4 | 811859 | BEARING (.020 U.S. - PAIR) | ACT | $25.08 | $24.63 | AR | |||
| 5 | 843378 | PIN, Dowel (1/4 n. Diameter) | 35312 | SS/ACT |
|
$15.40 | $15.02 | 2 | |
| 6 | 9518 | FLYWHEEL | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 8M0214958 | SCREW, (.437-20 x 1.00) | 49845 | SS/ACT |
|
$5.70 | $5.56 | 6 | |
| 8 | 39131 | LOCKWASHER, (.437) | ACT | $1.00 | $0.98 | 6 | |||
| 9 | 18643A7 | COUPLING ASSEMBLY | 18643A2 | SS/ACT |
|
$528.50 | $497.22 | 1 | |
| 10 | 18644 | --BUMPER, Rubber | ACT | $3.70 | $3.61 | 3 | |||
| 11 | 8M0204643 | --SCREW, (.375-16 x 1.12) | 14883 | SS/ACT |
|
$1.80 | $1.76 | 3 | |
| 12 | 13510 | --WASHER | ACT | $9.10 | $8.88 | 3 | |||
| 13 | 811839T02 | CONNECTING ROD | 811839 | SS/ACT |
|
$360.93 | $345.00 | 6 | |
| 14 | 11969 | --BOLT | ACT | $21.40 | $20.87 | 12 | |||
| 15 | 37493 | --NUT, (.375-24) | ACT | $4.90 | $4.78 | 12 | |||
| 16 | 9517A1 | CRANKSHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 818485 | --KEY | SS |
|
$0.00 | $0.00 | 1 |
