Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

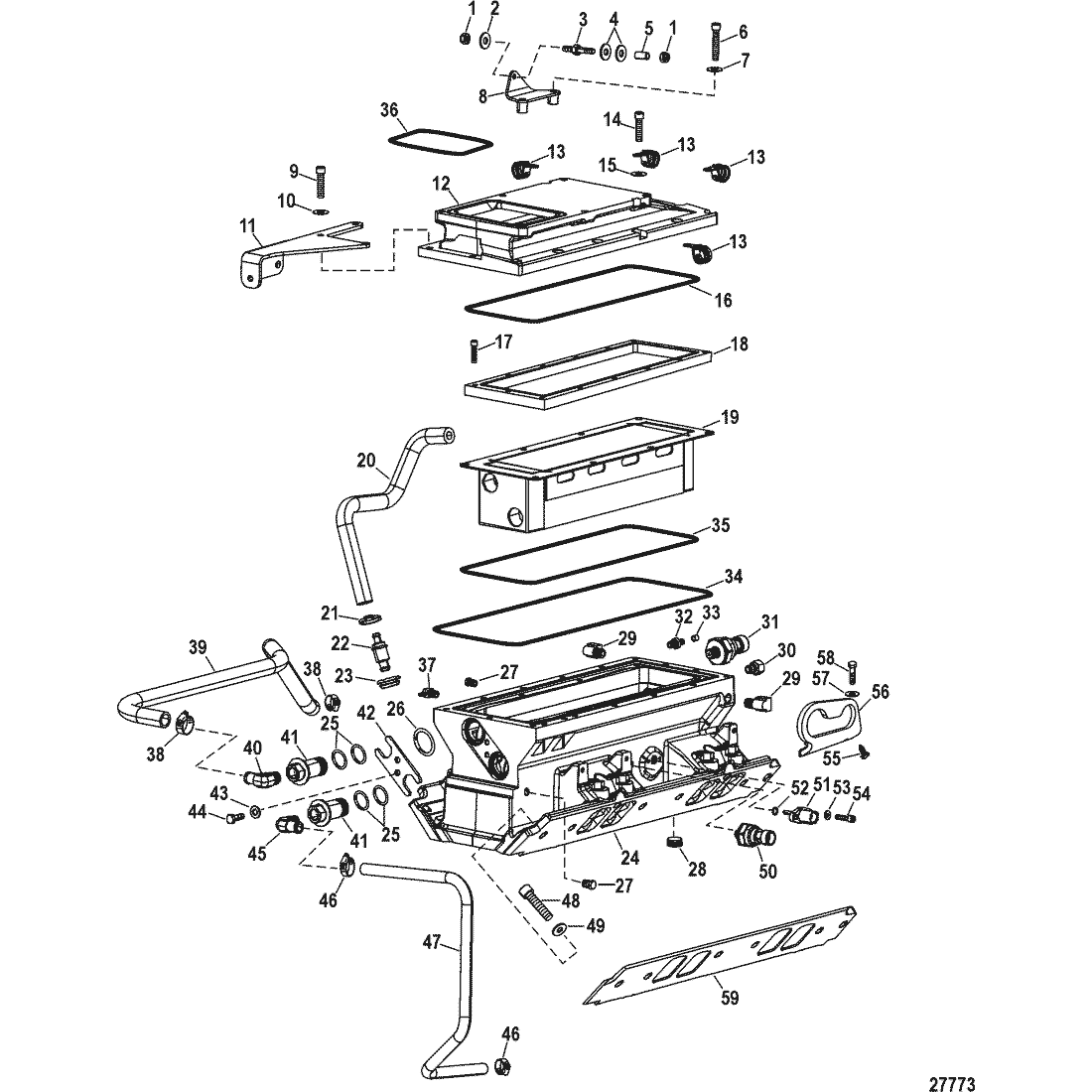

1 826709109 NUT, (.250-28) Stainless Steel ACT $3.59 $3.50 2
2 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 1
3 8M0113178 STUD, (.250-28 x 2.00) 96112 SS $3.09 $3.01 1
4 69056 WASHER, (.255 x .620 x .030) Stainless Steel ACT $1.80 $1.76 2
5 31866 SPACER, (.256 x .313 x .625) ACT $5.69 $5.56 1
6 821281 SCREW, (.312-18 x 2.500) Stainless Steel ACT $4.11 $4.06 2
7 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 2
8 843941 BRACKET, Cable Atachment ACT $203.74 $188.57 1
9 8M0000148 SCREW, (.312-18 x 2.120) Stainless Steel ACT $32.08 $31.63 3
10 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 3
11 842509 BRACKET, Support - Black ACT $119.07 $110.20 1
12 8M8000300 MANIFOLD, Supercharger - Blue ACT $2,291.07 $2,051.39 1
13 843943 J CLIP ACT $20.88 $20.58 4
14 30559 SCREW, (.312-18 x 1.750) Stainless Steel ACT $3.09 $3.01 10
15 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 10
16 843089 O-RING, (14.205 x .103) ACT $34.87 $34.37 1
17 861846 SCREW, (.312-18 x .750) Stainless Steel ACT $1.50 $1.47 8
18 846205 ADAPTER, Supercharger ACT $510.11 $464.42 1
19 8M0047380 INTERCOOLER 846203 SS $18,842.40 $16,417.55 1
20 8M0001453 HOSE, Molded, Valve To Throttle Body ACT $23.89 $23.56 1
21 848763 CLAMP, (19.8 mm) ACT $2.99 $2.95 1
22 8M0099429 VALVE ASSEMBLY, Crankcase Vent 848578 SS $31.09 $30.53 1
23 811553 GROMMET ACT $83.49 $78.40 1
24 842469A05 MANIFOLD ASSEMBLY, Intake - Blue ACT $5,680.32 $5,086.06 1
24 842469A08 MANIFOLD ASSEMBLY, Intake - Black ACT $5,680.32 $5,086.06 1
25 8M0204645 --O-RING, (.796 x .139) 21836 SS $2.39 $2.33 4
26 35480 --O-RING, (1.237 x .103) ACT $3.19 $3.11 2
27 328022 --PLUG, Pipe (.125-27) Brass ACT $7.59 $7.42 2
28 8M0189712 --PLUG, Pipe (1.00-11) Brass 823465 NLA $153.99 $138.76 1
29 93385 --FITTING, (90 Degree) ACT $13.19 $12.88 2
30 33821 --CONNECTOR ACT $9.69 $9.46 1
31 881879T11 --SENSOR, Pressure (0 - 100 PSI) 881879011 SS $196.99 $177.45 1
32 840971A1 --VALVE ASSEMBLY, Shrader ACT $35.32 $34.82 1
33 8M0046566 ----CAP, Shrader Valve - Brass 805515 NLA $4.69 $4.59 1
34 843089 --O-RING, (14.205 x .103) ACT $34.87 $34.37 1
35 843088 --O-RING, (12.570 x .103) ACT $28.45 $28.05 1
36 843092 --O-RING, (6.080 x .103) ACT $29.75 $29.33 1
37 993211 FITTING ACT $18.79 $18.42 1
38 815504310 CLAMP, Worm Gear ACT $17.99 $17.56 2
39 842260 HOSE, Molded ACT $44.47 $43.84 1
40 842491 FITTING, (.375-18) 90 Degree ACT $71.57 $68.39 1
41 843090 COUPLER, Intercooler ACT $121.01 $111.99 2
42 843091 RETAINER, Intercooler Coupler ACT $13.42 $13.23 1
43 8M0204690 WASHER, (.344 x .688 x .065) Stainless Steel 814806 SS $1.80 $1.76 2
44 28782 SCREW, (.312-18 x .880) Stainless Steel ACT $2.99 $2.92 2
45 842501 FITTING, 90 Degree ACT $84.67 $80.91 1
46 815504310 CLAMP, Worm Gear ACT $17.99 $17.56 2
47 8M0007846 HOSE, (38.00 Inches) ACT $37.65 $37.12 1
48 848160 SCREW, (.375-16 x 1.375) Stainless Steel ACT $9.89 $9.66 16
49 842504 WASHER, (.410 x .720 x .093) Stainless Steel ACT $2.42 $2.39 16
50 8M6000628 SENSOR ASSEMBLY, Pressure (0 - 30 PSI) 881879018 SS $167.93 $155.41 1
51 891663001 SENSOR ASSEMBLY, Temperature, Air Charge ACT $228.49 $205.70 1
52 892317001 --O-RING ACT $23.19 $22.75 1
53 30164 WASHER, (.192 x .375 x .0312) Stainless Steel ACT $2.49 $2.43 2
54 90188 SCREW, (#10-24 x .500) Stainless Steel ACT $1.70 $1.66 2
55 828991T CLIP ACT $5.09 $4.98 1
56 8M8000050 BRACKET, Lift ACT $145.17 $134.36 1
57 8M0204690 WASHER, (.344 x .688 x .065) Stainless Steel 814806 SS $1.80 $1.76 2
58 37562 SCREW, (.312-18 x 1.00) Stainless Steel ACT $2.99 $2.92 2
59 843073 GASKET, Intake Manifold Mount ACT $90.31 $86.30 2
- 843073A05 GASKET/SEAL SET, Engine Overhaul ACT $1,506.15 $1,348.59 1
