Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

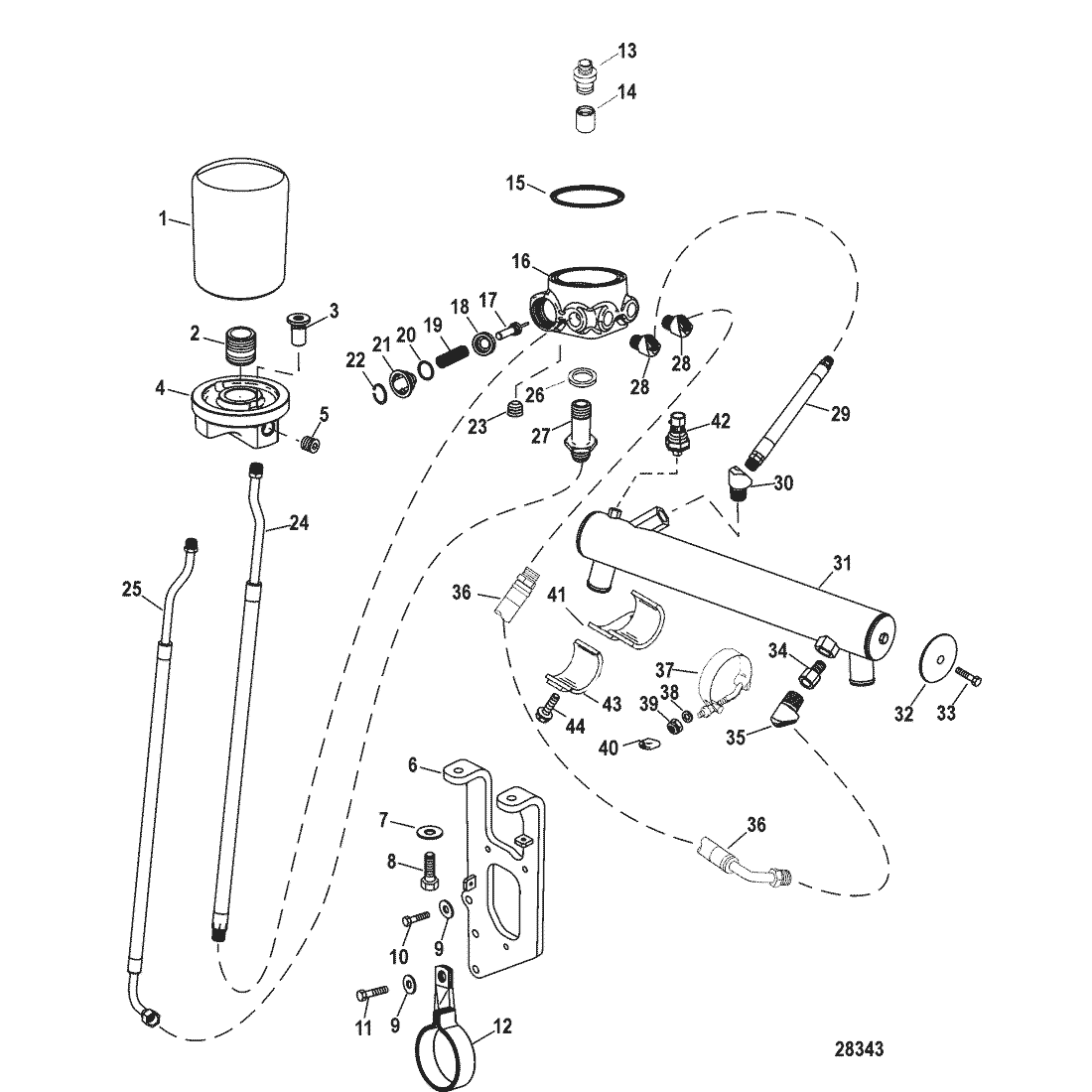

1 881126K01 FILTER, Oil ACT $27.02 $26.64 1
2 805632 CONNECTOR, Oil Fitler Base ACT $47.99 $47.00 1
3 807211 VALVE, Relief, Oil By Pass - 30 PSI ACT $25.79 $25.29 1
4 8M0021768 BASE, Oil Filter ACT $287.73 $266.29 1
5 8M0087451 PLUG, (18 MM) 8M0047995 SS $7.79 $7.61 1
6 8M8020302 BRACKET, Oil Filter Base ACT $267.74 $247.79 1
7 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 2
8 35047 SCREW, (.375-16 x 1.250) Stainless Steel ACT $3.79 $3.69 2
9 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 3
10 35047 SCREW, (.375-16 x 1.250) Stainless Steel ACT $3.79 $3.69 2
11 846294 SCREW, (.375-16 x 1.500) Stainless Steel ACT $5.96 $5.88 1
12 8M0011102 CLIP, Hose Support ACT $16.67 $16.44 1
13 805632 CONNECTOR, Oil Filter ACT $47.99 $47.00 1
14 841870 CONNECTOR, Oil Thermostat Housing ACT $58.59 $55.99 1
15 32507 O-RING, (3.359 x .139) ACT $5.19 $5.08 1
16 849885A04 HOUSING ASSEMBLY, Oil Thermostat ACT $568.61 $517.69 1
16 849885T2 --HOUSING, Oil Thermostat ACT $504.67 $459.47 1
17 8M0231826 --THERMOSTAT 8161631 SS $84.38 $80.64 1
18 8M0231826 --PISTON, Oil Thermostat 849983 SS $84.38 $80.64 1
19 816162 --SPRING ACT $8.49 $8.29 1
20 864701 --O-RING, (1.112 x .103) ACT $3.59 $3.50 1
21 8M0096522 --COVER, Oil Thermostat 8161651 SS $31.00 $30.57 1
22 848571 --RING, Retaining ACT $19.74 $19.46 1
23 8M0204652 --PLUG, Pipe - Allen Head (.250-18) 32561 SS $6.79 $6.64 1
24 8M0007770 HOSE ASSEMBLY, Oil (35.50 Inches), Filter Base To Filter ACT $91.55 $87.49 1
25 8M0007771 HOSE ASSEMBLY, Oil (39.26 Inches), Filter To Base ACT $91.93 $87.85 1
26 42077 SEAL ACT $12.49 $12.19 1
27 8M0007144 FITTING, Oil Filter Base ACT $84.79 $81.02 1
28 48872 FITTING, 45 Degree Elbow ACT $84.99 $79.97 2
29 8M0024516 HOSE ASSEMBLY, Oil (29.25 Inches), Cooler To Filter Base ACT $95.43 $91.19 1
30 48872 FITTING, 45 Degree Elbow ACT $84.99 $79.97 1
31 879330T34 COOLER ASSEMBLY, Oil ACT $921.53 $838.98 1
32 8M0036570 --GASKET 842785 SS $18.73 $18.47 2
33 39349 --SCREW, (.312-18 x .750) Stainless Steel ACT $1.80 $1.76 2
34 8M0026386 FITTING, (.500-14) ACT $18.67 $18.41 1
35 48872 FITTING, 45 Degree Elbow ACT $84.99 $79.97 1
36 8M0024537 HOSE ASSEMBLY, Oil, Filter Base To Cooler ACT $79.25 $75.74 1
37 844664 CLAMP, T Bolt Band ACT $31.96 $31.51 2
38 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 2
39 35888 NUT, (.250-28) Stainless Steel ACT $6.89 $6.73 2
40 8M0074364 COVER, Hose Clamp End - Clamp Stud (.375) 8079923 SS $3.29 $3.21 2
NS 8M0074364 COVER, Hose Clamp End 8M6500037 SS $3.29 $3.21 19
41 849908T BRACKET, Oil Cooler ACT $173.41 $160.49 2
42 881879T11 SENSOR, Pressure (0 - 100 PSI) ACT $196.99 $177.45 1
43 845459T BRACKET, Oil Cooler ACT $455.64 $421.68 2
44 805559 SCREW, (.375-16 x .875) Stainless Steel ACT $10.29 $10.05 2
- 843073A05 GASKET/SEAL SET, Engine Overhaul ACT $1,506.15 $1,348.59 1
- 8M0065565 PARTIAL ENGINE ASSEMBLY ACT $30,417.44 $26,502.98 1
