| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

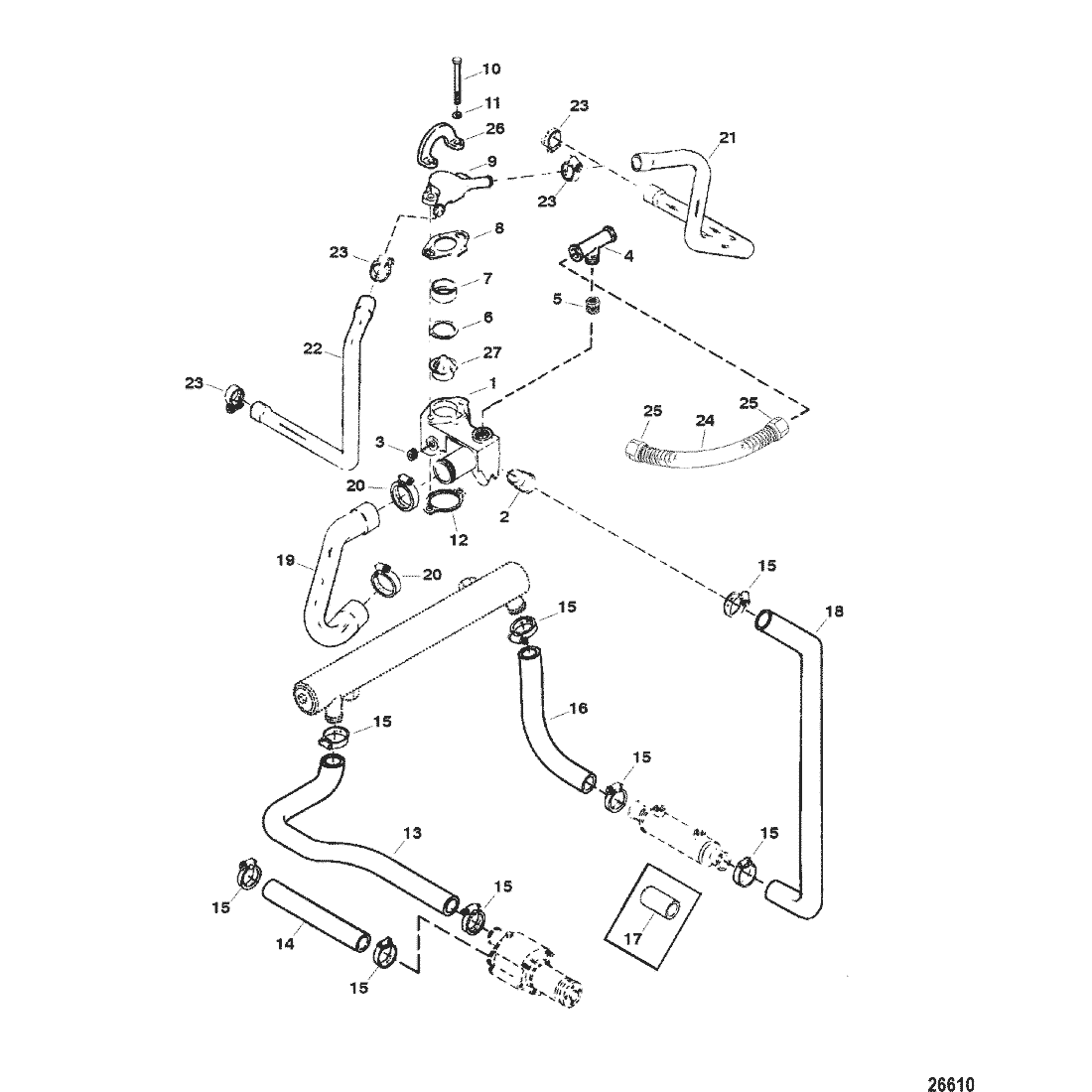

| 1 | 817131A1 | HOUSING ASSEMBLY, Thermostat | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 47511 | --SLEEVE | ACT | $43.99 | $43.13 | 1 | |||
| 3 | 8M0204657 | --PLUG, Hex Steel (.375-18) | 36373 | SS |
|
$5.69 | $5.56 | 1 | |
| 4 | 98477A2 | --VALVE ASSEMBLY | ACT |
|
$108.99 | $102.34 | 1 | ||
| NS | 98475 | ----BALL, Nylon | ACT | $11.19 | $10.93 | 2 | |||
| NS | 75533 | ----SPRING | ACT | $2.99 | $2.92 | 2 | |||
| NS | 8M0204718 | ----NUT, (#10-32) | 29488 | SS |
|
$4.69 | $4.59 | 1 | |
| 5 | 847768 | --FITTING, Adaptor | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 47510 | GASKET, Thermostat | ACT | $3.39 | $3.30 | 1 | |||
| 7 | 47508T | SLEEVE, Thermostat | 47508 | SS |
|
$17.49 | $17.11 | 1 | |
| 8 | 418122 | GASKET, Thermostat Cover | ACT | $16.24 | $16.01 | 1 | |||
| 9 | 47441A1 | COVER, Thermostat | ACT | $99.49 | $95.62 | 1 | |||
| 10 | 14164 | SCREW, (.375-16 x 4.37) | ACT | $17.29 | $16.94 | 2 | |||
| 11 | 20553 | WASHER, (.406 x .734 x .063) | ACT | $1.50 | $1.47 | 2 | |||
| 12 | 530451 | GASKET, Thermostat Housing | ACT | $5.69 | $5.56 | 1 | |||
| 13 | 848178 | HOSE, Pump To Cooler | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 1743565 | HOSE, (38.00 Inches Bulk), Cut As Required - Sea Pump To Drive Unit | ACT |
|
$100.99 | $94.96 | 1 | ||
| 14 | 13556A1 | HOSE KIT, (10.00 Feet), Cut As Required | ACT |
|
$868.19 | $816.55 | 1 | ||
| 15 | 180765 | --CLAMP, Worm Gear | ACT | $11.65 | $11.48 | 2 | |||
| 15 | 180766 | CLAMP, Worm Gear | ACT |
|
$15.09 | $14.73 | 8 | ||
| 16 | 8m0171261 | HOSE, Molded, Oil Cooler To Oil Cooler | 848956 | SS |
|
$73.75 | $71.59 | 1 | |
| 17 | 13177 | TUBE, Water Hose | ACT |
|
$21.83 | $21.53 | 1 | ||
| 18 | 816344 | HOSE, Oil Cooler To Thermostat Housing | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 847677A01 | HOSE, Thermostat Housing To Water Pump | 822524 | SS |
|
$0.00 | $0.00 | 1 | |
| 20 | 180768 | CLAMP, Worm Gear | ACT | $15.69 | $15.31 | 2 | |||
| 21 | 816347 | HOSE, Thermostat Cover | ACT |
|
$53.90 | $52.32 | 1 | ||
| 22 | 848957 | HOSE, Thermostat Cover | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 180764 | CLAMP, Worm Gear | ACT | $13.49 | $13.17 | 4 | |||
| 24 | 847764A1 | HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 847764A2 | HOSE ASSEMBLY, (17.00 Inches) Stainless Steel Braided | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 847764A1 | HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided | NLA |
|
$0.00 | $0.00 | 2 | ||
| 25 | 84775218 | --CLAMP/HOSE COVER, Hose | NLA |
|
$0.00 | $0.00 | 4 | ||
| 26 | 12552 | LIFTING EYE | ACT | $19.89 | $19.41 | 1 | |||
| 27 | 8M0089715 | THERMOSTAT, 140 Degrees | 8072521 | SS |
|
$27.69 | $27.17 | 1 | |
| - | 827014A98 | GASKET SET, Engine Overhaul | 827014A97 | SS |
|
$0.00 | $0.00 | 1 |
