Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

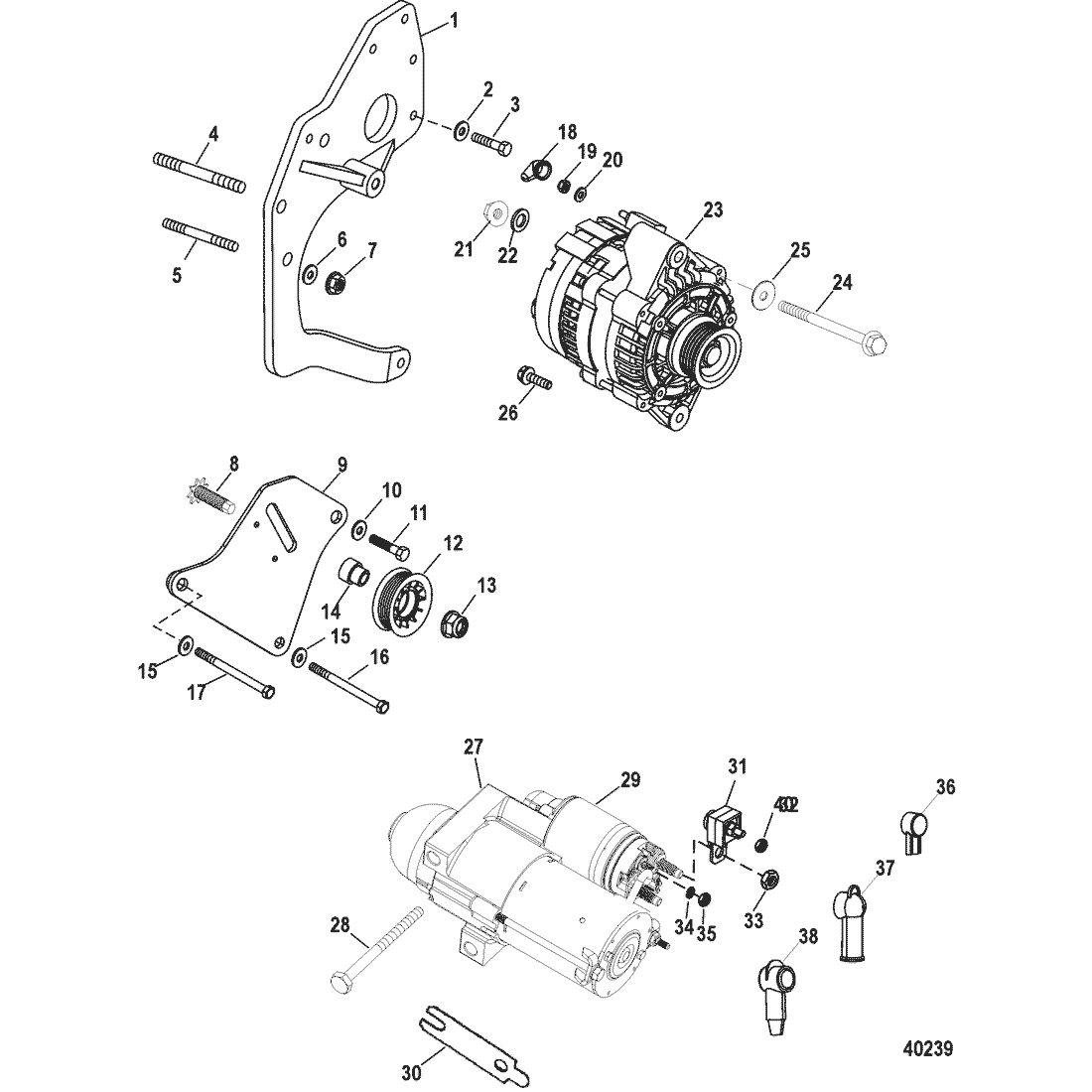

1 8M8023684 BRACKET ACT $324.15 $309.76 1
2 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 1
3 825427 SCREW, (.437-14 x 1.250) Stainless Steel ACT $6.99 $6.83 1
4 8M0133358 STUD, (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 1
5 8M0133358 STUD, (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 1
6 45176 WASHER, (.453 x .812 x .105) Stainless Steel ACT $1.50 $1.47 2
7 859135 NUT, (.437-20) Brass/Nickel Plated ACT $6.09 $5.95 2
8 8M0113182 PINION STUD, (.437-20) Stainless Steel 8183812 SS $22.49 $22.02 1
9 8M0065011 BRACKET, Tensioner 8424431 SS $217.72 $208.05 1
10 45176 WASHER, (.453 x .812 x .105) Stainless Steel ACT $1.50 $1.47 1
11 99204 SCREW, (.437-14 x 1.00) Stainless Steel ACT $5.09 $4.98 1
12 807757T PULLEY ASSEMBLY, Idler - Black ACT $59.99 $57.55 1
13 859135 NUT, (.437-20) Brass/Nickel Plated ACT $6.09 $5.95 1
14 845117 BUSHING ACT $25.86 $25.48 1
15 45176 WASHER, (.453 x .812 x .105) Stainless Steel ACT $1.50 $1.47 1
15 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 1
16 87302 SCREW, (.375-16 x 5.00) Stainless Steel ACT $11.29 $11.02 1
17 841118 SCREW, (.437-14 x 5.50) Stainless Steel ACT $14.18 $13.98 1
18 66659 BOOT, Insulator - Black ACT $1.90 $1.86 2
19 401386 NUT, (M6) Stainless Steel ACT $5.09 $4.98 1
20 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 1
21 401388 NUT, (M8) Stainless Steel ACT $3.06 $3.00 1
22 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 1
23 863077T01 ALTERNATOR ASSEMBLY ACT $932.78 $877.30 1
24 4010870 SCREW, (M10 x 70) Hex Flange - Stainless Steel ACT $23.89 $23.41 1
25 841388 WASHER, (.410 x .810 x .050) Stainless Steel ACT $0.90 $0.88 1
26 82155025 SCREW, (M8 x 25 MM) Stainless Steel ACT $3.19 $3.11 1
27 8M8021116 STARTER MOTOR ASSEMBLY, Service Complete ACT $511.07 $480.67 1
28 8053432 --SCREW, (.375-16 x 4.33) ACT $17.09 $16.68 2
29 809463A1 --SOLENOID KIT ACT $205.49 $193.21 1
30 8M0192201 SHIM, Special 8172721 SS $22.49 $22.02 1
31 79023T10 FUSE ASSEMBLY, 110 Ampere 79023A10 SS $45.99 $45.17 1
32 826709109 NUT, (.250-28) Stainless Steel ACT $3.59 $3.50 1
33 401388 NUT, (M8) Stainless Steel ACT $3.06 $3.00 1
34 26996 LOCKWASHER, (#10) Stainless Steel ACT $1.20 $1.18 1
35 400211 NUT, (M5) Stainless Steel ACT $3.59 $3.50 1
36 79695T BOOT, Insulator - Black 79695 SS $5.49 $5.37 1
37 830233 BOOT, Insulator - Red ACT $4.69 $4.59 1
38 880787 BOOT, Insulator - Yellow ACT $1.90 $1.86 1
