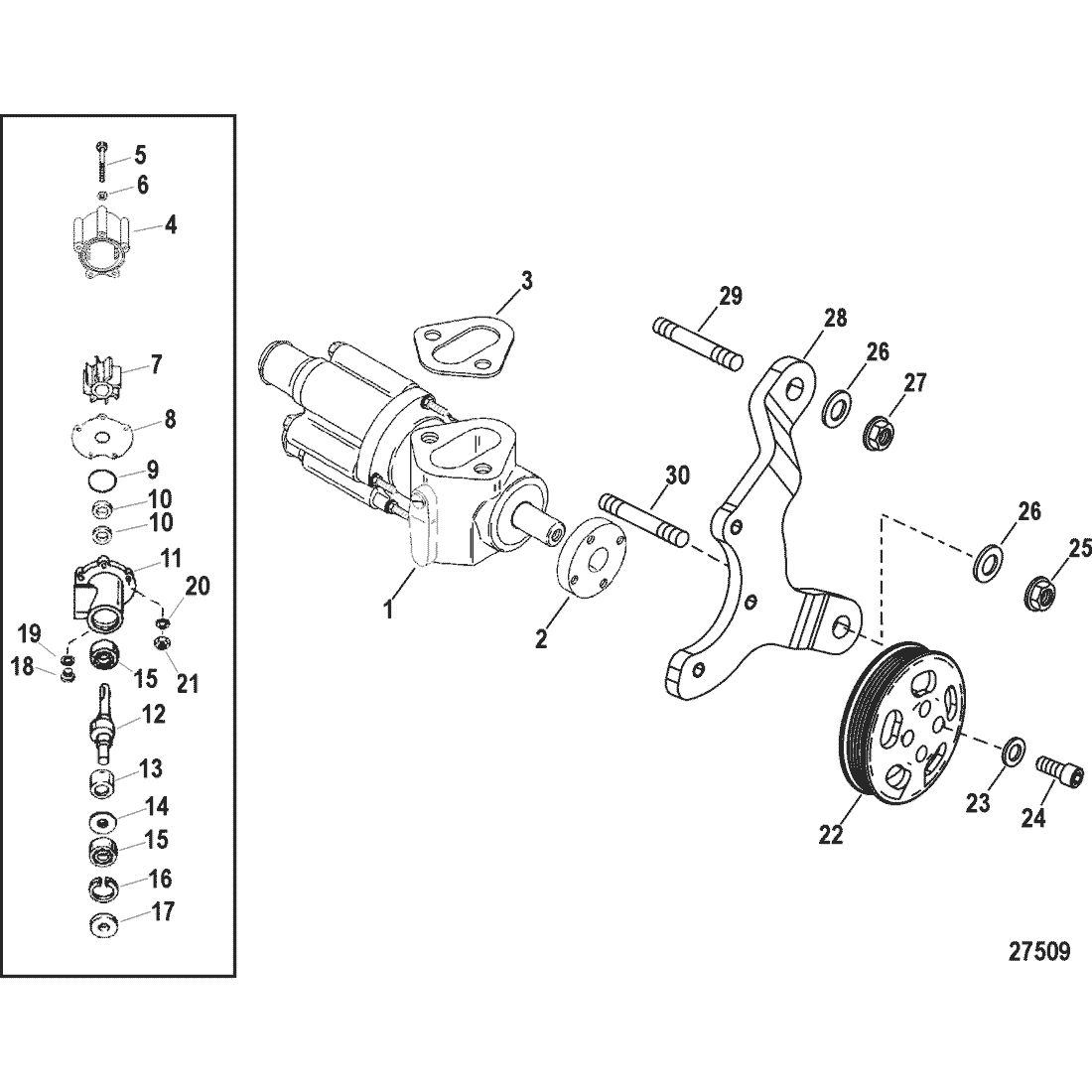

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0084270 | PUMP ASSEMBLY, Sea Water | 807151A31 | SS |
|
$671.49 | $611.41 | 1 | |
| 2 | 47530 | --HUB, Pump Pulley | ACT | $65.49 | $61.63 | 1 | |||
| 3 | 34213 | --GASKET, Sea Water Pump To Fuel Pump | ACT | $7.09 | $6.93 | 1 | |||
| 4 | 807151A14 | --BODY/IMPELLER KIT | ACT |
|
$145.49 | $131.17 | 1 | ||
| 5 | 8M0204669 | ----SCREW, (.312-18 x 3.250) | 74191 | SS |
|
$1.10 | $1.08 | 5 | |
| 5 | 74822 | ----SCREW, (.312-18 x 3.500) | ACT | $1.70 | $1.66 | OPT | |||
| 6 | 8M0204690 | ----WASHER, (.344 x .688 x .065) Stainless Steel | 814806 | SS |
|
$1.80 | $1.76 | 5 | |
| 7 | 59362T1 | ----IMPELLER | ACT | $45.99 | $45.09 | 1 | |||
| 8 | 8M0204674 | ----WEAR PLATE | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 9 | 8M0215007 | ----QUAD RING | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 10 | 90562 | --SEAL, (1.254 x .312) | ACT | $18.89 | $18.50 | 2 | |||
| 11 | NSS | --NOT SOLD SEPARATE, Sea Water Pump Housing |
|
$0.00 | $0.00 | 1 | |||
| 12 | 818366A1 | --SHAFT KIT | ACT |
|
$273.99 | $247.02 | 1 | ||
| 13 | 818745A1 | ----RING KIT, Slip | ACT |
|
$47.49 | $46.65 | 1 | ||
| 14 | 89664 | ------WASHER, (.920 x 1.750 x .060) | ACT | $6.89 | $6.73 | 1 | |||
| 15 | 72961 | --BEARING, Ball | ACT | $16.99 | $16.62 | 2 | |||
| 16 | 23720 | --RING, Retaining | ACT | $2.99 | $2.92 | 1 | |||
| 17 | 806930 | --SEAL | ACT | $19.99 | $19.56 | 1 | |||
| 18 | 79953A04 | --PLUG ASSEMBLY, (.375-16 x .250) | ACT |
|
$6.79 | $6.64 | 1 | ||
| 19 | 8M0204693 | ----SEAL, Drain Plug | 830749 | SS |
|
$5.19 | $5.08 | 1 | |
| 20 | 400247 | --LOCKWASHER, (M8) | ACT |
|
$1.80 | $1.76 | 5 | ||
| 21 | 21908 | --NUT, (.312-18) Cad Plated | ACT |
|
$3.19 | $3.11 | 5 | ||
| 21 | 82670910 | --NUT, (.312-18) Stainless Steel | ACT |
|
$7.19 | $7.03 | 5 | ||
| 22 | 899743T | PULLEY, Sea Water Pump/Fuel Pump - Blue | 849046T01 | NLA |
|
$431.47 | $399.32 | 1 | |
| 22 | 899743T | PULLEY, Sea Water Pump/Fuel Pump - Polished/Clear Coat | ACT |
|
$431.47 | $399.32 | 1 | ||
| 23 | 8M0042642 | WASHER, (.323 x .563 x .063) Stainless Steel | 70132 | SS |
|
$1.80 | $1.76 | 4 | |
| 24 | 849377 | SCREW, (.312-24 x .750) Stainless Steel | ACT | $15.13 | $14.92 | 4 | |||
| 25 | 859135 | NUT, (.437-20) Brass/Nickel Plated | ACT | $6.09 | $5.95 | 1 | |||
| 26 | 45176 | WASHER, (.453 x .812 x .105) Stainless Steel | ACT | $1.50 | $1.47 | 2 | |||
| 27 | 859135 | NUT, (.437-20) Brass/Nickel Plated | ACT | $6.09 | $5.95 | 1 | |||
| 28 | 841049T | BRACKET, Sea Water Pump | ACT | $299.46 | $277.15 | 1 | |||
| 29 | 8M0133358 | STUD, (.437-14/.437-20 x 2.060) | 579203 | SS |
|
$17.29 | $16.94 | 1 | |
| 30 | 8M0041668 | STUD, (.437-14/.437-20 x 1.875) | 57982 | SS |
|
$15.49 | $15.12 | 1 | |
| - | 843073A06 | GASKET/SEAL SET, Engine Overhaul | ACT |
|
$1,787.87 | $1,600.83 | 1 |
