| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

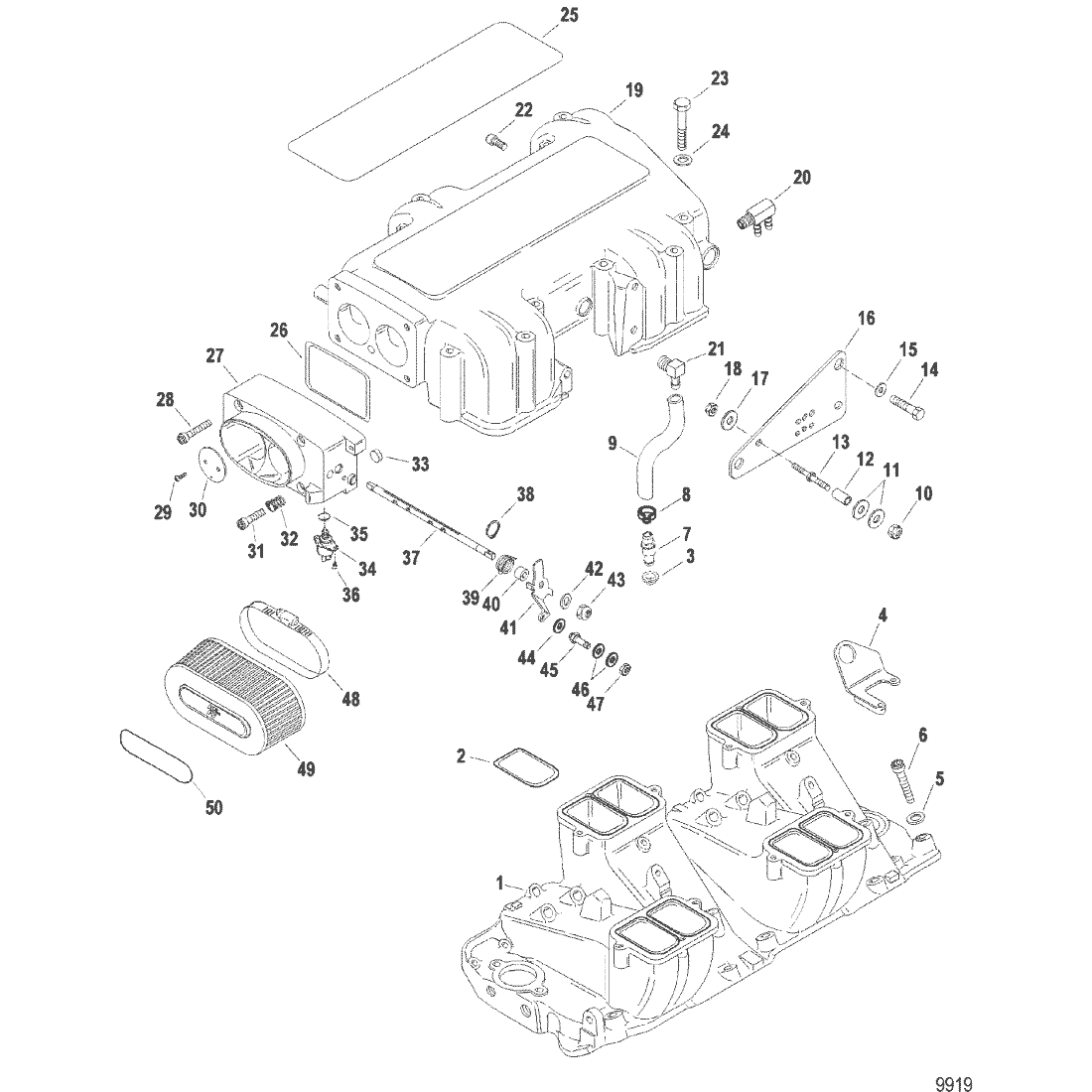

| 1 | 849900T3 | MANIFOLD ASSEMBLY, Intake - Blue | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 805732 | --O-RING, (2.612 x .103) | ACT |
|
$20.58 | $20.22 | 8 | ||
| 3 | 811553 | --GROMMET, Intake Manifold | ACT |
|
$35.08 | $34.45 | 1 | ||
| 4 | 8499981 | LIFTING EYE, Black | ACT | $192.09 | $183.56 | 2 | |||
| 5 | 8M0214963 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 | SS/ACT |
|
$2.50 | $2.44 | 16 | |
| 6 | 822168 | SCREW, (.375-16 x 1.750) Stainless Steel | ACT |
|
$4.04 | $3.99 | 8 | ||
| 6 | 842787 | SCREW, (.375-16 x 2.00) | 47432 | SS/ACT |
|
$7.64 | $7.54 | 2 | |
| 6 | 847919 | SCREW, (.375-16 x 2.250) | ACT |
|
$6.23 | $6.15 | 2 | ||
| 6 | 849994 | SCREW, (.375-16 x 5.250) | ACT |
|
$28.71 | $28.30 | 4 | ||
| 7 | 8M0099429 | VALVE ASSEMBLY, Crankcase Vent | 848578 | SS/ACT |
|
$29.92 | $29.38 | 1 | |
| 8 | 848764 | CLAMP, (21 mm) | ACT | $3.80 | $3.71 | 1 | |||
| 9 | 8M0042521 | HOSE, (7.00 Inches) | 844172019 | SS/ACT |
|
$12.00 | $11.71 | 1 | |
| 10 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.50 | $3.42 | 1 | |||
| 11 | 69056 | WASHER, (.255 x .625 x .0312) | 21631 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 12 | 31866 | SPACER, (.256 x .313 x .625) | ACT | $5.50 | $5.37 | 1 | |||
| 13 | 8M0113178 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 96112 | SS/ACT |
|
$3.00 | $2.93 | 1 | |
| 14 | 90285 | SCREW, (.312-18 x .625) | ACT | $1.70 | $1.66 | 3 | |||
| 15 | 814806 | WASHER, (.344 x .688 x .065) Stainless Steel | ACT | $1.79 | $1.75 | 3 | |||
| 16 | 849888T | BRACKET, Throttle Anchor | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 846673 | WASHER, (.265 x .500 x .060) Stainless Steel | ACT | $1.10 | $1.08 | 1 | |||
| 18 | 35888 | NUT, (.250-28) Stainless Steel | ACT | $6.60 | $6.44 | 1 | |||
| 19 | 849902A6 | PLENUM ASSEMBLY, Blue | SS |
|
$0.00 | $0.00 | 1 | ||
| 20 | 841435 | --FITTING, 90 Degree - Double | ACT | $55.76 | $54.13 | 1 | |||
| 21 | 687271 | --FITTING, (.250-18) 90 Degree - Brass, To PVC Valve | ACT | $30.67 | $30.12 | 1 | |||
| 22 | F1077 | --SCREW, (#10-24 x .500) | SS |
|
$0.00 | $0.00 | 1 | ||
| 23 | 71319 | SCREW, (.250-20 x 3.750) | ACT | $5.91 | $5.84 | 12 | |||
| 24 | 846673 | WASHER, (.265 x .500 x .060) Stainless Steel | ACT | $1.10 | $1.08 | 12 | |||
| 25 | 849948T | NAMEPLATE, Plenum | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 57413 | O-RING, (3.987 x .103) | ACT |
|
$8.40 | $8.20 | 1 | ||
| 27 | 841251T3 | THROTTLE BODY ASSEMBLY, Blue | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 844997 | SCREW, (M8 x 60) | ACT | $4.04 | $3.99 | 4 | |||
| 29 | 840118 | SCREW, (#8-32 x .380), Throttle Plate | ACT | $3.60 | $3.52 | 4 | |||
| 30 | 849887 | PLATE, Throttle | SS |
|
$0.00 | $0.00 | 2 | ||
| 31 | 842127 | SCREW, (#10-32 x .750) Stainless Steel | ACT | $0.55 | $0.55 | 1 | |||
| 32 | 27160 | SPRING | ACT | $3.90 | $3.81 | 1 | |||
| 33 | 840184 | EXPANSION PLUG | SS |
|
$0.00 | $0.00 | 3 | ||
| 34 | 805224A1 | MOTOR ASSEMBLY, IAC | ACT |
|
$157.58 | $148.40 | 1 | ||
| 35 | 808547 | --O-RING | ACT |
|
$1.60 | $1.57 | 1 | ||
| 36 | 805400 | --SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 37 | 849889 | SHAFT, Throttle | SS |
|
$0.00 | $0.00 | 1 | ||
| 38 | 92170 | RING, Snap | ACT | $3.30 | $3.22 | 2 | |||
| 39 | 844226 | SPRING, Throttle Return | SS |
|
$0.00 | $0.00 | 1 | ||
| 40 | 849992 | SPACER, Throttle Body | SS |
|
$0.00 | $0.00 | 1 | ||
| 41 | 845577 | ARM, Throttle | SS |
|
$0.00 | $0.00 | 1 | ||
| 42 | 8M0214963 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 | SS/ACT |
|
$2.50 | $2.44 | 1 | |
| 43 | 8M0204726 | NUT, (.375-24) Stainless Steel | 826709113 | SS/ACT |
|
$1.70 | $1.66 | 1 | |
| 44 | 35950 | WASHER, (.273 x .437 x .031) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 45 | 805526 | STUD, (.250-28 x 1.540) | ACT | $6.50 | $6.34 | 1 | |||
| 46 | 846673 | WASHER, (.265 x .500 x .060) Stainless Steel | ACT | $1.10 | $1.08 | 2 | |||
| 47 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.50 | $3.42 | 1 | |||
| 48 | 1807613 | CLAMP, Worm Gear | ACT | $7.77 | $7.67 | 1 | |||
| 49 | 840210T1 | ARRESTOR, Flame | SS |
|
$0.00 | $0.00 | 1 | ||
| 50 | 843484 | DECAL, Mercury Racing | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 842129A1 | GASKET/SEAL SET, Engine Overhaul | SS |
|
$0.00 | $0.00 | 1 |
