| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

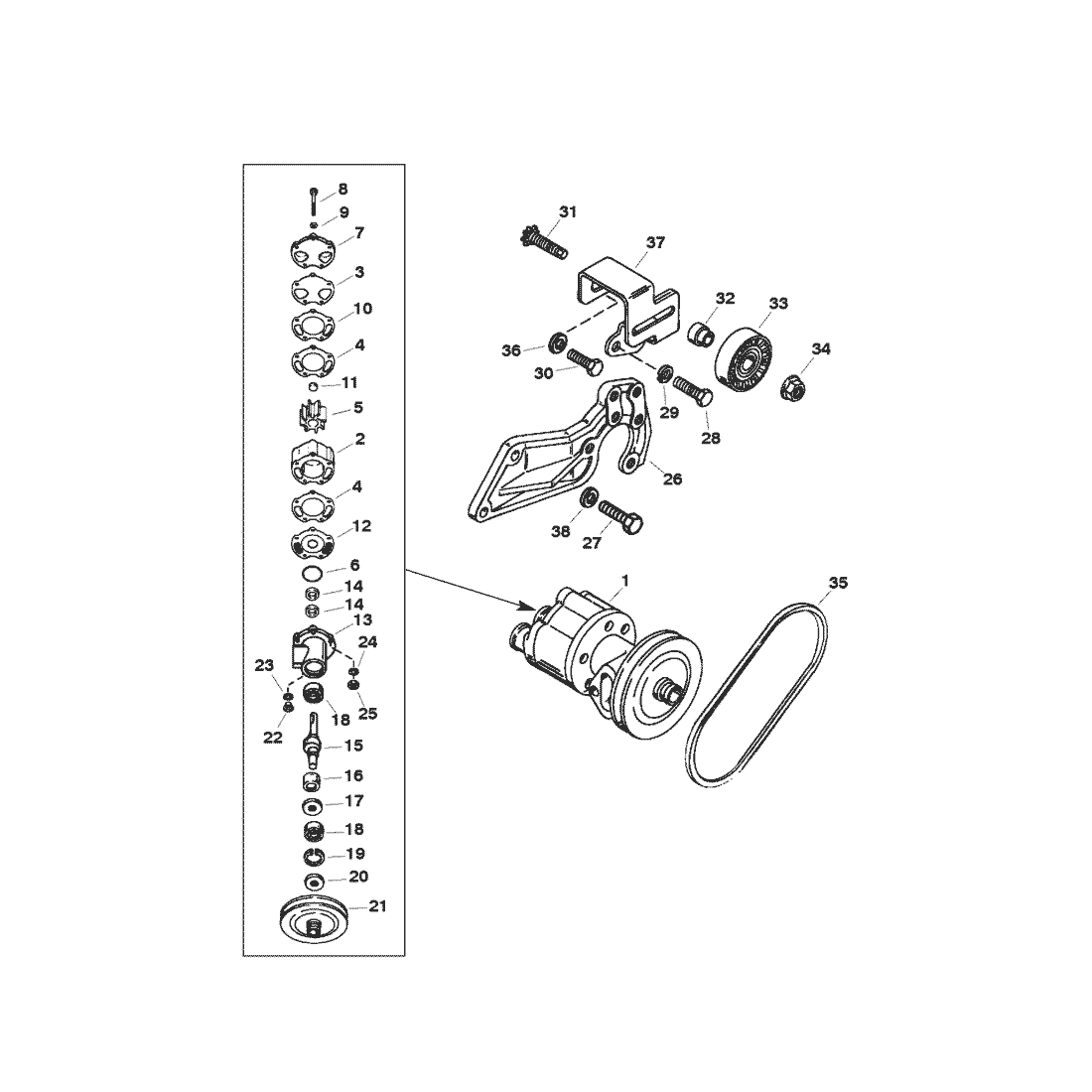

| 1 | 72774A82 | PUMP ASSEMBLY-Sea Water | NLA |
|
$0.00 | $0.00 | 1 | ||
| NS | 36382 | --PLUG-Pipe (.250-18) | ACT | $5.49 | $5.37 | 2 | |||
| 2 | 72774A89 | --BODY/IMPELLER KIT-Sea Water Pump | ACT |
|
$193.49 | $181.99 | 1 | ||
| 3 | 8052151 | ----GASKET-Cover To Outer Wear Plate | ACT | $9.59 | $9.37 | 1 | |||
| 4 | 94914 | ----GASKET-Body To Wear Plate | ACT | $3.69 | $3.59 | 2 | |||
| 5 | 59362T1 | ----IMPELLER | 593621 | SS |
|
$45.99 | $45.09 | 1 | |
| 6 | 8M0215007 | ----RING-Quad-Pump Housing | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 7 | 821707T1 | --COVER-Sea Water Pump | 8217071 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 39001 | --SCREW (.312-18 x 4.500) | ACT | $5.09 | $4.98 | 5 | |||
| 9 | 20084 | --WASHER | ACT | $2.97 | $2.92 | 10 | |||
| 10 | 94916 | --WEAR PLATE-Outer | ACT | $27.79 | $27.25 | 1 | |||
| 11 | 59504 | --PLUG-Impeller | ACT | $13.89 | $13.56 | 1 | |||
| 12 | 8M0204674 | --WEAR PLATE-Inner | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 13 | 818367A1 | --HOUSING ASSEMBLY-Sea Water Pump | ACT |
|
$658.99 | $619.99 | 1 | ||
| 14 | 90562 | ----SEAL-Oil-Sea Water Pump Shaft | ACT | $18.89 | $18.50 | 2 | |||
| 15 | 818366A1 | ----SHAFT KIT-Sea Water Pump | ACT |
|
$273.99 | $258.03 | 1 | ||
| 16 | 818745A1 | ------SLIP RING KIT | ACT |
|
$47.49 | $46.65 | 1 | ||
| 17 | 89664 | --------WASHER | ACT | $6.89 | $6.73 | 1 | |||
| 18 | 72961 | ----BEARING-Ball-Sea Water Pump Shaft | ACT | $23.99 | $23.49 | 2 | |||
| 19 | 23720 | ----RING-Retaining-Ball Bearing | ACT | $2.99 | $2.92 | 1 | |||
| 20 | 806930 | ----SEAL-Oil-Sea Water Pump Shaft | ACT | $19.99 | $19.56 | 1 | |||
| 21 | 8183651 | ----PULLEY | 8183652 | SS |
|
$77.46 | $75.18 | 1 | |
| 22 | 79953Q04 | ----SCREW ASSEMBLY-Plug | 79953A2 | SS |
|
$7.49 | $7.32 | 1 | |
| 23 | 8M0204684 | ------O RING | 805726 | SS |
|
$2.49 | $2.43 | 1 | |
| 24 | 39107 | --LOCKWASHER (.312) | ACT | $1.50 | $1.47 | 1 | |||
| 25 | 21908 | --NUT (.312-18) | ACT | $3.19 | $3.11 | 1 | |||
| 26 | 818368A1 | BRACKET KIT-Sea Water Pump | 823185A2 | SS |
|
$0.00 | $0.00 | 1 | |
| 27 | 66024 | --SCREW (.437-14 x 1.750) | ACT | $9.69 | $9.46 | 3 | |||
| 28 | 28782 | --SCREW (.375-16 x .875) | ACT | $2.99 | $2.92 | 2 | |||
| 29 | 8M0204647 | --LOCKWASHER (.375) | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 30 | 99204 | SCREW (.437-14 x 1.00) | ACT | $5.09 | $4.98 | 1 | |||
| 31 | 8M0113182 | PINION/STUD | 8183811 | SS |
|
$22.49 | $22.02 | 1 | |
| 32 | 865193 | BUSHING | 818380T | SS |
|
$7.59 | $7.42 | 1 | |
| 33 | 8M6500024 | PULLEY | 818382 | SS |
|
$44.49 | $43.54 | 1 | |
| 34 | 859135 | NUT (.437-20) | 817618 | SS |
|
$6.09 | $5.95 | 1 | |
| 35 | 69143Q | V BELT | 69143T | SS |
|
$32.89 | $32.24 | 1 | |
| 36 | 27025 | WASHER | ACT | $2.39 | $2.33 | 1 | |||
| 37 | 818379T | BRACKET-Idler | ACT | $95.49 | $91.46 | 1 | |||
| 38 | 45176 | WASHER | ACT | $1.50 | $1.47 | 3 |
