| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

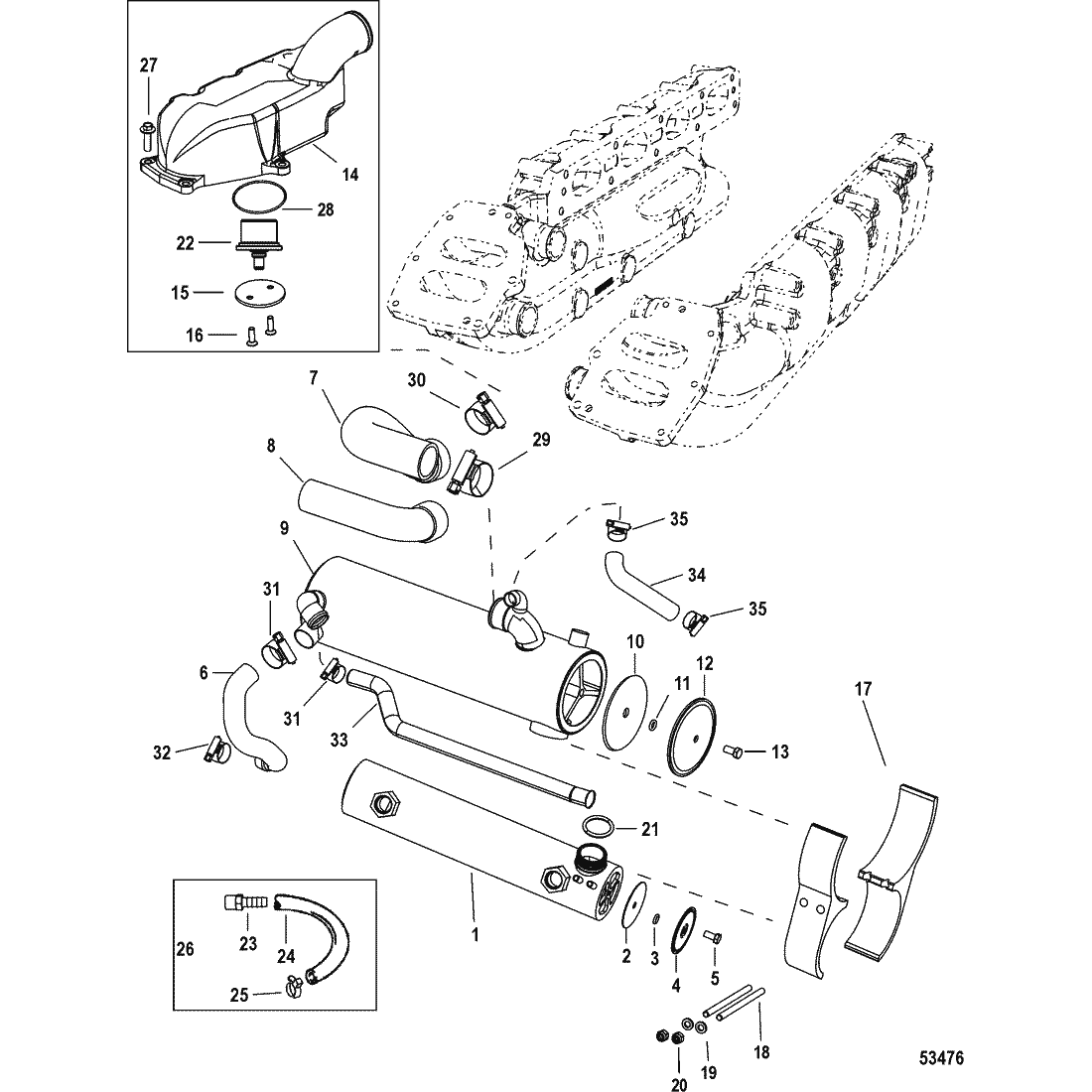

| 1 | 8M0058661 | OIL COOLER, Engine | ACT |
|
$1,885.19 | $1,727.68 | 1 | ||
| 2 | 8M0033439 | --GASKET | ACT | $10.86 | $10.71 | 2 | |||
| 3 | 8M0039163 | --O-RING | 8M0033440 | SS |
|
$8.79 | $8.59 | 2 | |
| 4 | 891717 | --COVER | ACT | $101.99 | $95.98 | 2 | |||
| 5 | 98261 | --SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 6 | 8M0045044 | HOSE, Exchanger to Port Manifold | ACT | $21.89 | $21.58 | 1 | |||
| 7 | 8M0032279 | HOSE, Exchanger to Thermostat Housing | ACT |
|
$31.91 | $31.46 | 1 | ||
| 8 | 8M0032278 | HOSE, Thermostat Housing to Cooler | ACT |
|
$24.04 | $23.70 | 1 | ||
| 9 | 8M0058662 | HEAT EXCHANGER | ACT |
|
$1,819.41 | $1,667.39 | 1 | ||
| 10 | 8M0105304 | --GASKET | 8M0075119 | NLA |
|
$412.52 | $394.20 | 2 | |
| 11 | 8M0039163 | --O-RING | 8M0033440 | SS |
|
$8.79 | $8.59 | 2 | |
| 12 | 8M0105304 | --COVER | 8M0075121 | NLA |
|
$412.52 | $394.20 | 2 | |
| 13 | 94247 | --SCREW, (.375-16 x .750) Stainless Steel | ACT | $1.50 | $1.47 | 2 | |||
| 13 | 98261 | --SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 14 | 8M0082762 | THERMOSTAT HOUSING | ACT |
|
$783.71 | $737.09 | 1 | ||
| 15 | 8M0047664 | --DISK, Thermostat Stop | ACT | $170.07 | $162.51 | 1 | |||
| 16 | 8M0199587 | --SCREW , (M6 x 20) | 8M0022382 | SS |
|
$1.20 | $1.18 | 2 | |
| 17 | 8M0042584 | BRACKET, Cooler Mount | ACT | $31.44 | $30.99 | 4 | |||
| NS | 863392 | PAD | ACT | $7.79 | $7.61 | 8 | |||
| 18 | 815443002 | STUD, (M10 x 165) | ACT | $31.69 | $31.23 | 4 | |||
| 19 | 8M0214963 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 | SS |
|
$2.59 | $2.53 | 4 | |
| 20 | 4013610 | NUT, (M10) Stainless Steel | ACT | $7.79 | $7.61 | 4 | |||
| 21 | 26855 | O-RING, (1.609 x .139) | ACT | $3.59 | $3.50 | 2 | |||
| 22 | 8M0039107 | THERMOSTAT | ACT | $86.70 | $84.15 | 1 | |||
| 23 | 8M0052457 | FITTING, Barbed | ACT | $6.70 | $6.61 | 1 | |||
| 24 | 774572 | HOSE, (48.00 Inches Bulk) | ACT |
|
$70.49 | $67.57 | 1 | ||
| 25 | 8M0214964 | CLAMP, Hose (15.3) | 856880 | SS |
|
$3.59 | $3.50 | 3 | |
| 26 | 8M6000631 | SENSOR, Pressure | ACT |
|
$81.99 | $79.59 | 1 | ||
| 27 | 4010725 | SCREW, (M8 x 25) | ACT | $5.79 | $5.66 | 5 | |||
| 28 | 822370 | O-RING, (2.362 x .103) | ACT | $4.19 | $4.10 | 1 | |||
| 29 | 180768 | CLAMP, Worm Gear | ACT | $15.69 | $15.31 | 2 | |||
| 30 | NSS | NOT SOLD SEPARATE, 18076 10 |
|
$0.00 | $0.00 | 2 | |||
| 31 | 180766 | CLAMP, Worm Gear | ACT | $15.09 | $14.73 | 2 | |||
| 32 | 180767 | CLAMP, Worm Gear | ACT | $13.82 | $13.63 | 2 | |||
| 33 | 8M0045051 | HOSE, Exchanger to Stbd. Manifold | ACT | $53.41 | $51.84 | 1 | |||
| 34 | 8M0047383 | HOSE, Exchanger to Reservoir | ACT |
|
$27.85 | $27.46 | 1 | ||
| 34 | 8M0078160 | HOSE | ACT |
|
$11.02 | $10.86 | 1 | ||
| 35 | 180763 | CLAMP, Worm Gear | ACT | $13.19 | $12.88 | 2 |
