- OVERALL DRIVE RATIO WILL BE 1.5:1 USING THE 17/17 HEAVY DUTY GEAR SET ON TR DRIVES

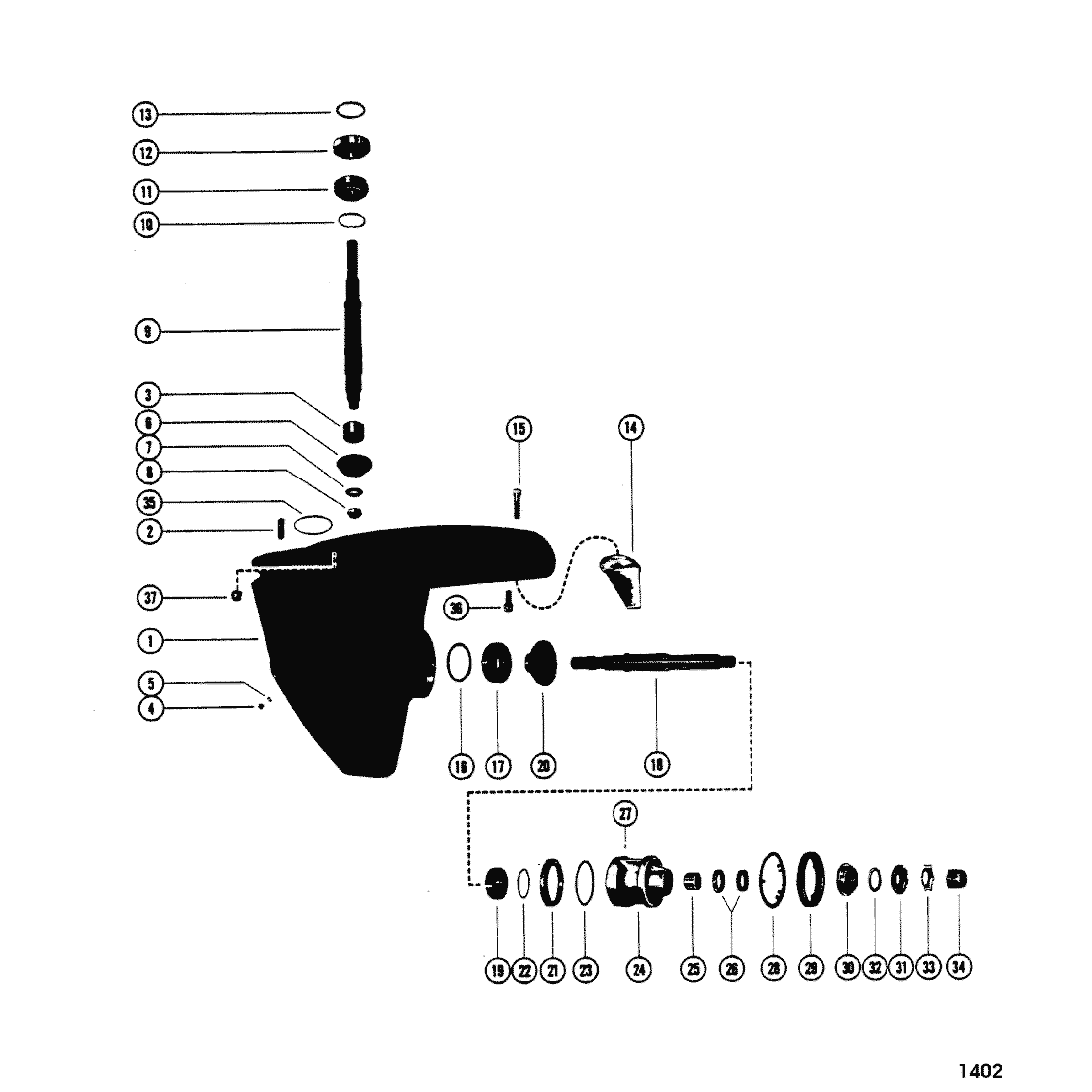

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| -- | 4855A13 | GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION) | SS |
 |
$0.00 | $0.00 | 1 | ||
| -- | 4855A14 | GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION) | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 4855A6 | --GEAR HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0041668 | ----STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8") | ACT | $14.90 | $14.53 | 1 | |||
| 3 | 35246 | ----BEARING, Roller, DRIVE SHAFT | ACT | $176.45 | $162.65 | 1 | |||
| 4 | 79953Q04 | --SCREW, (.375-16 x .250), VENT - GEAR HOUSING | 79953 | SS/ACT |
|
$7.20 | $7.03 | 1 | |
| 5 | 191833 | --WASHER, SEAL - VENT SCREW | 20260 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 6 | 62880T1 | --GEAR, Pinion (16 TEETH) | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 54048 | --WASHER, PINION GEAR TO DRIVE SHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 55819 | --NUT, PINION GEAR TO DRIVE SHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 62783T | --DRIVESHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 26320A1 | --SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING | SS |
|
$0.00 | $0.00 | AR | ||
| 11 | 48941A1 | --BEARING ASSEMBLY, Roller, DRIVE SHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 35990A1 | --BEARING ASSEMBLY, Roller, DRIVE SHAFT | ACT | $54.25 | $52.18 | 1 | |||
| 13 | 54030 | --O-RING, (2.987 x .103), GEAR HOUSING | ACT | $5.70 | $5.56 | 1 | |||
| 14 | 31640Q4 | --TRIM TAB ASSEMBLY, GEAR HOUSING | 31640A1 | SS/ACT |
|
$17.92 | $17.60 | 1 | |
| 15 | 41350 | --SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2") | ACT | $26.33 | $25.86 | 1 | |||
| 16 | 55499A1 | --SHIM ASSEMBLY, ROLLER BEARING (LEFT HAND ROTATION) | ACT | $21.58 | $21.20 | AR | |||
| 17 | 8M0103475 | --BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION) | ACT | $138.33 | $130.27 | 1 | |||
| 18 | 62820T1 | --PROPELLER SHAFT (LEFT HAND ROTATION) | 62820 | SS/ACT |
|
$1,329.86 | $1,219.11 | 1 | |
| 19 | 8M0103474 | --BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION) | 54036A1 | SS/ACT |
|
$85.92 | $82.64 | 1 | |
| 16 | 47397A1 | --SHIM SET, ROLLER BEARING (RIGHT HAND ROTATION) | ACT | $19.30 | $18.82 | AR | |||
| 17 | 62801A1 | --BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION) | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 62792 | --PROPELLER SHAFT (RIGHT HAND ROTATION) | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 62799A1 | --BEARING SET (RIGHT HAND ROTATION) | ACT | $92.50 | $88.97 | 1 | |||
| 20 | 62881T1 | --GEAR, Drive (24 TEETH) | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 66103A1 | --THRUST RING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 66093T | ----LOAD RING, THURST RING | 66093 | SS/ACT |
|
$41.58 | $40.84 | 1 | |
| 23 | 34821 | --O-RING, BEARING CARRIER | ACT | $7.60 | $7.42 | 1 | |||
| 24 | 863913A04 | --CARRIER ASSEMBLY, Bearing | 62813A4 | SS/ACT |
|
$480.29 | $459.09 | 1 | |
| 25 | 54042T | ----BEARING, Roller, BEARING CARRIER | ACT | $36.92 | $36.25 | 1 | |||
| 26 | 821092 | ----SEAL, Oil, BEARING CARRIER | 54926 | SS/ACT |
|
$35.50 | $34.86 | 2 | |
| 27 | 30281 | --KEY, LOCATING - BEARING CARRIER | ACT | $2.90 | $2.83 | 1 | |||
| 28 | 54167 | --TAB WASHER, GEAR HOUSING COVER | ACT | $19.42 | $19.07 | 1 | |||
| 29 | 8M0169089 | --RETAINER, GEAR HOUSING | 54163 | SS/ACT |
|
$117.92 | $111.05 | 1 | |
| 30 | 55074T | THRUST HUB | ACT | $44.74 | $43.95 | 1 | |||
| 31 | 55073A2 | WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT | ACT |
|
$82.20 | $79.07 | 1 | ||
| 32 | 55072 | --WASHER, BEARING CARRIER | ACT | $13.01 | $12.77 | 1 | |||
| 33 | 34817 | TAB WASHER, PROPELLER NUT | ACT | $13.01 | $12.77 | 1 | |||
| 34 | 82671127 | NUT, (1.0-14), PROPELLER (1-1/4-7 THREAD) | 54034 | SS/ACT |
|
$21.65 | $21.26 | 1 | |
| 35 | 54029 | O-RING, (2.800 x .103), GEAR HOUSING | ACT | $4.00 | $3.91 | 1 | |||
| 36 | 47557 | SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2") | SS |
|
$0.00 | $0.00 | 1 | ||
| 37 | 8M0204653 | NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD | 34933 | SS/ACT |
|
$5.10 | $4.98 | 1 |
