| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

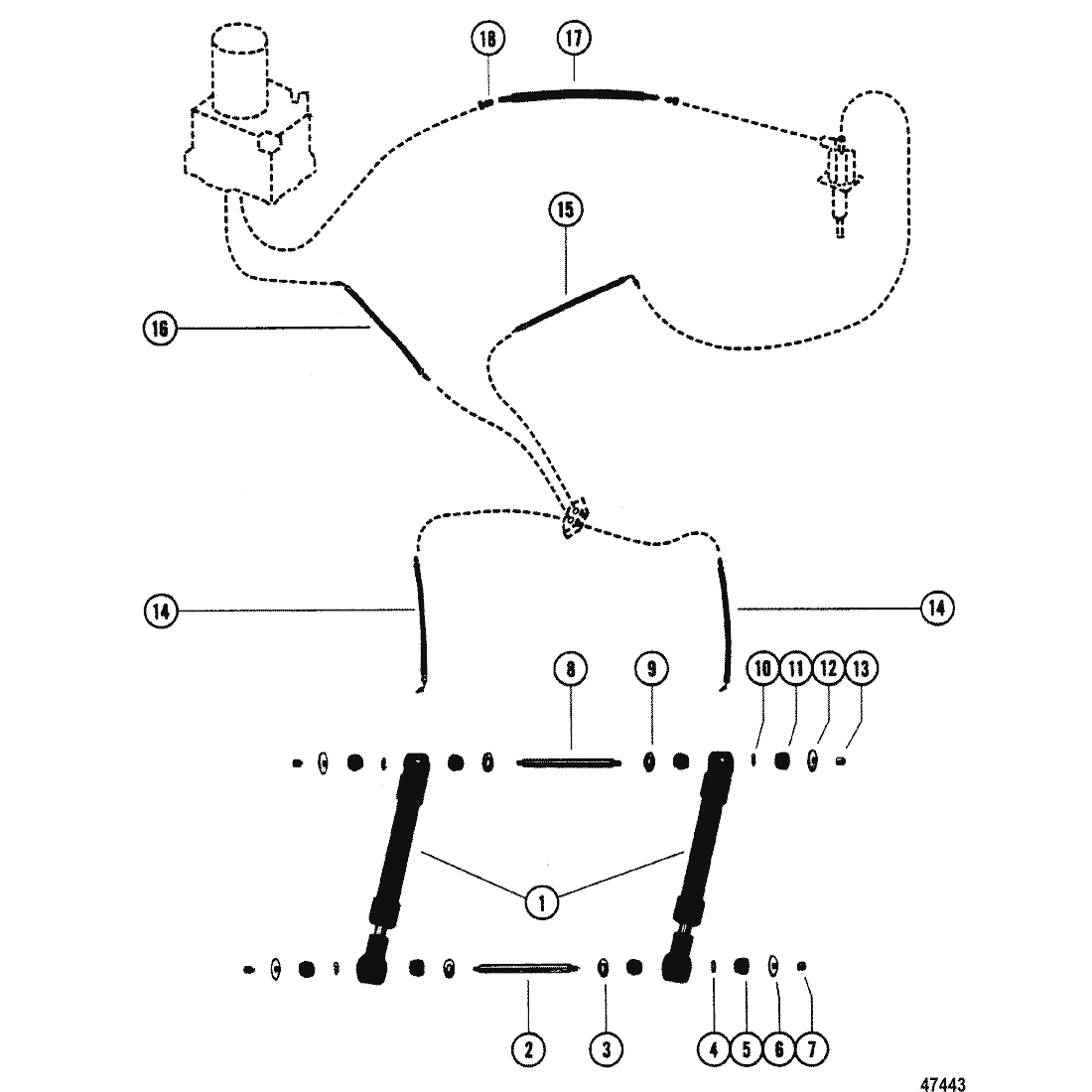

| 1 | 47342A23 | CYLINDER ASSEMBLY, COMPLETE | SS |
 |
$0.00 | $0.00 | 2 | ||
| 2 | 14874A1 | PIN, DRIVE SHAFT HOUSING (10-3/4") | 49279 | SS/ACT |
|
$175.12 | $161.39 | 1 | |
| 3 | 89664 | WASHER, (.920 x 1.750 x .060), ANCHOR PIN (59/64" I.D.) | ACT | $6.60 | $6.44 | 2 | |||
| 4 | 49593 | SPRING, ANCHOR PIN | ACT | $5.03 | $4.90 | 2 | |||
| 5 | 90203 | BUSHING, RUBBER - ANCHOR PIN | SS |
|
$0.00 | $0.00 | 4 | ||
| 6 | 89665 | WASHER, Stainless Steel, ANCHOR PIN (33/64" I.D.) | ACT | $7.00 | $6.83 | 2 | |||
| 7 | 35000 | NUT, (.500-20) Stainless Steel, ANCHOR PIN | ACT | $14.00 | $13.66 | 2 | |||
| 8 | 14875A1 | PIN, GIMBAL RING (13-1/4") | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 89664 | WASHER, (.920 x 1.750 x .060), ANCHOR PIN (59/64" I.D.) | ACT | $6.60 | $6.44 | 2 | |||
| 10 | 49593 | SPRING, ANCHOR PIN | ACT | $5.03 | $4.90 | 2 | |||
| 11 | 90203 | BUSHING, RUBBER - ANCHOR PIN | SS |
|
$0.00 | $0.00 | 4 | ||
| 12 | 89665 | WASHER, Stainless Steel, ANCHOR PIN (33/64" I.D.) | ACT | $7.00 | $6.83 | 2 | |||
| 13 | 35000 | NUT, (.500-20) Stainless Steel, ANCHOR PIN | ACT | $14.00 | $13.66 | 2 | |||
| 14 | 86036Q | HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") | 86036 | SS/ACT |
|
$49.58 | $48.69 | 4 | |
| 15 | 63158A1 | HOSE, CONNECTOR TO VALVE (25") | ACT | $86.67 | $83.36 | 1 | |||
| 16 | 63157A1 | HOSE, CONNECTOR TO PUMP (50-1/2") | ACT | $104.42 | $98.33 | 1 | |||
| 17 | 8M0111655 | TUBING, PUMP TO REVERSE LOCK VALVE (49") | ACT/SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 49718 | NUT, COMPRESSION - HYDRAULIC TUBING | ACT | $4.00 | $3.91 | 2 |
