Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

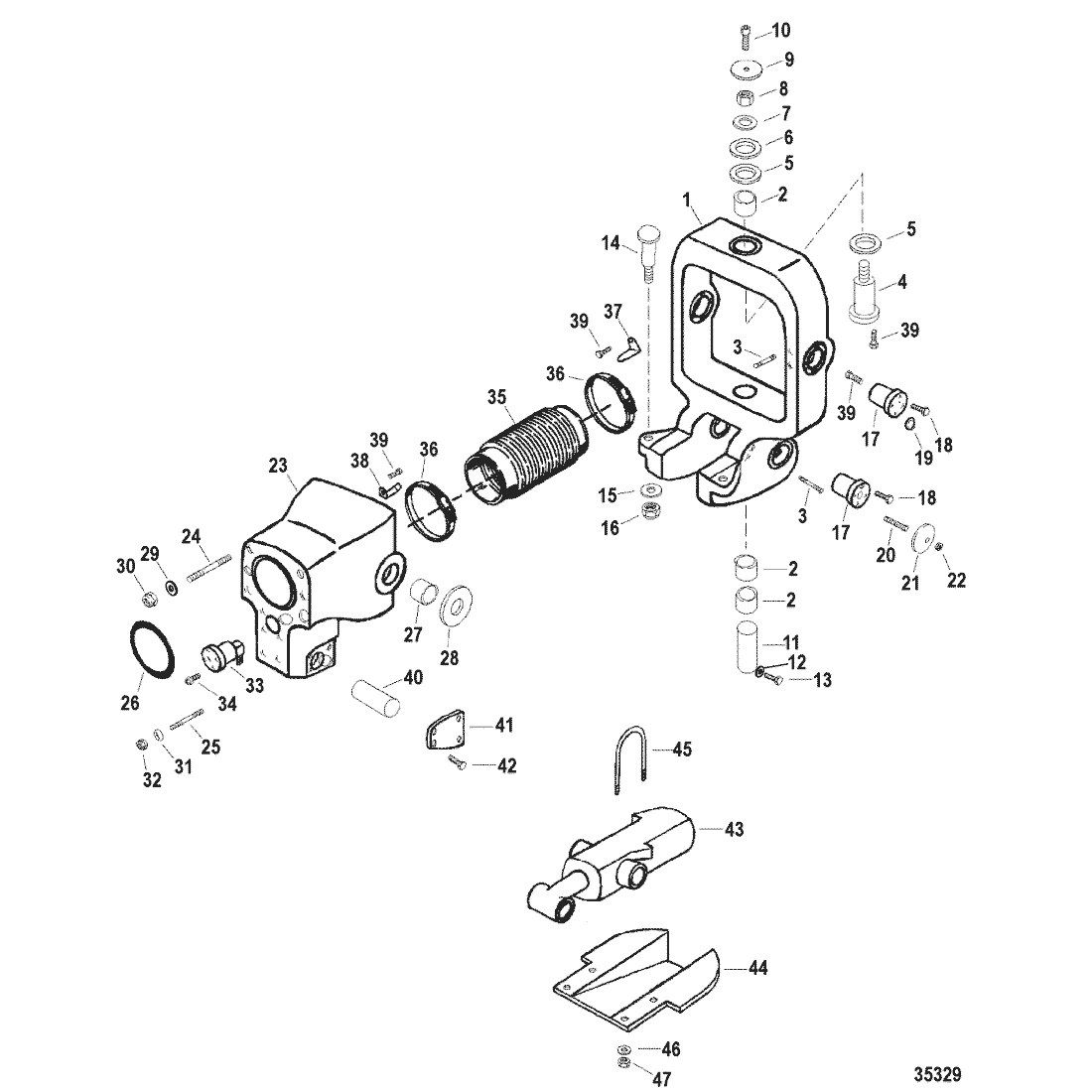

1 846603T1 GIMBAL RING ASSEMBLY ACT $7,402.41 $6,783.90 1
2 846916 --BEARING, Sleeve ACT $181.38 $173.33 3
3 846345 --STUD, (#10-32 x .750) ACT $21.79 $21.36 4
4 8M0233788 PIN, Hinge, Upper 846403 SS $419.46 $400.83 1
5 846375 THRUST WASHER, (1.53 x 2.62 x .06) ACT $42.75 $42.15 2
6 846397 WASHER, (1.250 x 2.620 x .190) Stainless Steel ACT $43.38 $42.77 1
7 846382 WASHER, (1.015 x 1.750 x .096) Stainless Steel ACT $11.09 $10.94 1
8 846391 NUT, (1.00-16) Stainless Steel ACT $106.69 $101.95 1
9 848234 CAP ACT $10.95 $10.79 1
10 846500 SCREW, (#10-32 x 1.00) Stainless Steel ACT $2.49 $2.43 1
11 8M8027382 PIN, Lower Pivot 846402 SS $159.17 $152.09 1
12 35950 WASHER, (.273 x .437 x .031) Stainless Steel ACT $1.80 $1.76 1
13 846348 SCREW, (.250-28 x 1.50) Special - Stainless Steel, Pin Retainer ACT $55.34 $53.72 1
14 846854 SHOULDER SCREW, (.750-16) Stainless Steel, Steering Cylinder ACT $101.86 $97.34 2
15 847048 PLATE, Ground, Bonding ACT $19.76 $19.48 2
16 846853 NUT, (.750-16) Stainless Steel ACT $17.97 $17.72 2
17 8M0234739 PIN, Hinge 846433 SS $402.39 $384.52 4
18 846498 SCREW, (.312-18 x .750) Stainless Steel ACT $15.19 $14.83 16
19 846643 PLUG ACT $0.48 $0.48 2
20 8M0022145 STUD, (.375-16/.375-24 x 1.750) 57932 SS $12.49 $12.19 2
21 848653T ANODE ACT $51.90 $50.38 2
22 826709112 NUT, (.375-16) 846869 SS $3.02 $2.98 2
23 846602A1 HOUSING ASSEMBLY, Tilt 846602T1 SS $3,571.10 $3,272.72 1
24 846389 --STUD, (.625-11/.625-18 x 3.310) ACT $42.02 $41.43 6
25 8M0007427 --STUD, (.500-13/.500-20 x 2.660) 842689 SS $23.42 $23.09 2
26 846363 --O-RING, (7.262 x .120) ACT $4.90 $4.84 1
27 846915 --BEARING, Hinge Pin ACT $148.03 $141.46 2
28 846914 THRUST WASHER, (1.69 x 3.50 x .06) ACT $38.14 $37.60 2
29 846378 WASHER, (.688 x 1.00 x .120) Stainless Steel ACT $5.41 $5.33 6
30 47379 NUT, (.625-18) Stainless Steel ACT $22.40 $22.09 6
31 846377 WASHER, (.531 x 1.06 x .095) Stainless Steel ACT $12.99 $12.68 2
32 35000 NUT, (.500-20) Stainless Steel ACT $14.59 $14.24 2
33 846600A1 VALVE ASSEMBLY ACT $716.72 $674.09 1
34 846347 SCREW, (#10-32 x .625) Stainless Steel ACT $0.77 $0.77 4
35 8M0192220 BELLOWS ASSEMBLY 846302A1 SS $267.66 $255.76 1
- 846421 --SPRING, Bellows ACT $62.91 $61.06 1
36 846428 CLAMP, Worm Drive ACT $18.23 $17.98 2
37 847050 STRAP, Bonding ACT $48.11 $47.43 1
38 847049 STRAP, Bonding ACT $26.16 $25.79 1
39 69022 SCREW, (#10-32 x .500) Stainless Steel ACT $1.10 $1.08 7
40 844324 PIN, Trim Cylinder 846401 SS $51.60 $50.09 1
41 8M0192223 WEARPAD 846431 SS $91.83 $89.13 1
41 8M0192224 WEARPAD 846432 SS $91.83 $89.13 1
42 846498 SCREW, (.312-18 x .750) Stainless Steel ACT $15.19 $14.83 8
43 846555A07 CYLINDER ASSEMBLY, Trim 846555A4 SS $4,329.76 $3,967.99 1
44 8M0050812 SHIELD, Water 847060 SS $328.13 $313.55 1
45 847061 U BOLT, (.312-24) Stainless Steel ACT $124.86 $119.31 2
46 843108 WASHER, (.330 x .560 x .060) Stainless Steel ACT $0.69 $0.68 4
47 82670911 NUT, (.312-24) Stainless Steel 35814 SS $4.99 $4.88 4
