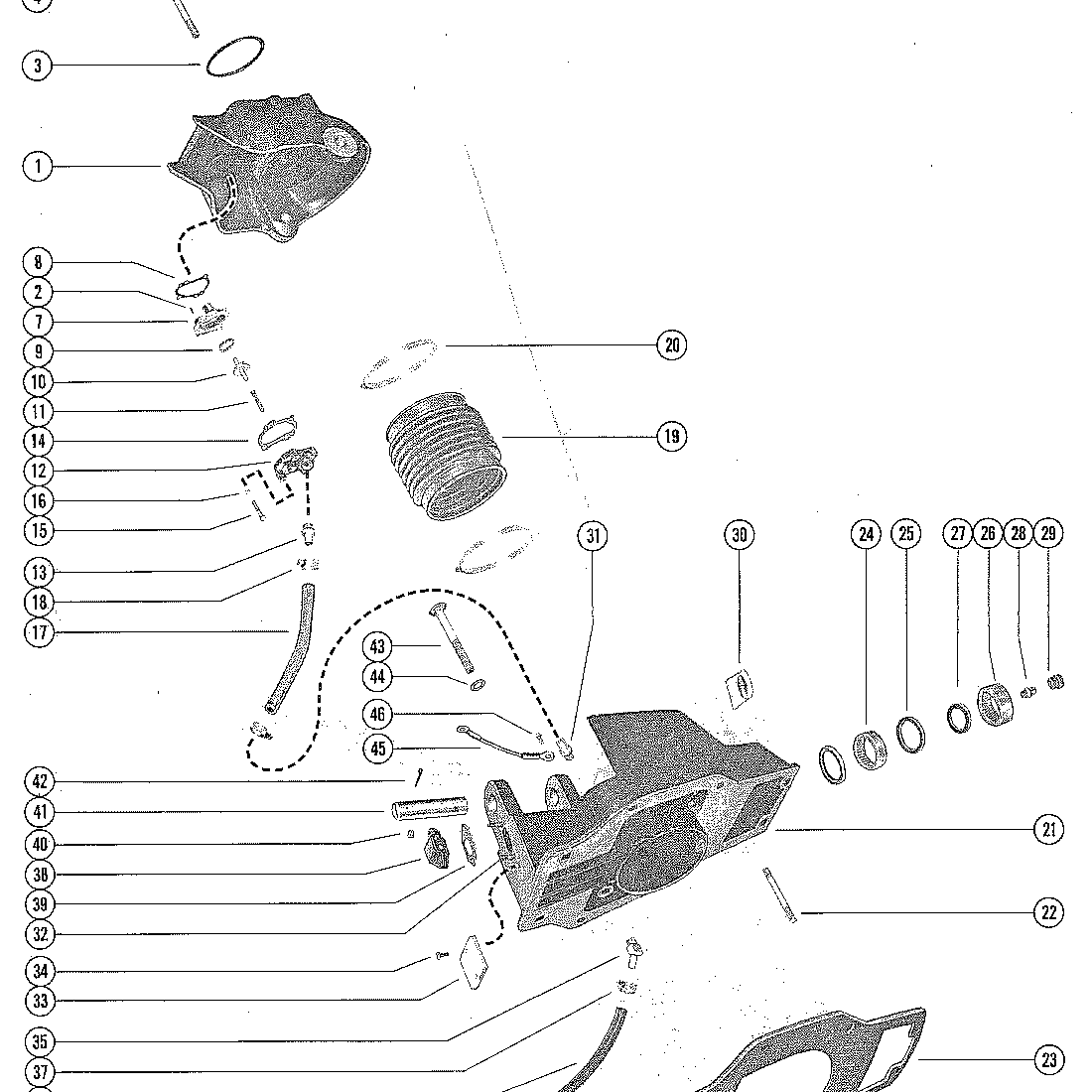

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69112A3 | BELL HOUSING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 48450 | --PIN, DOWEL - BELL HOUSING | ACT | $10.30 | $10.04 | 2 | |||
| 3 | 8M0214920 | --"O" RING, BELL HOUSING | 48451 | SS/ACT |
|
$6.10 | $5.95 | 1 | |
| 4 | 57987 | --STUD, BELL HOUSING TO DRIVE SHAFT HOUSING (4 5/16") | ACT | $46.23 | $45.57 | 6 | |||
| 5 | 47428 | WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD | ACT | $9.47 | $9.34 | 6 | |||
| 6 | 47379 | NUT, BELL HOUSING TO DRIVE SHAFT HOUSING STUD | ACT | $21.74 | $21.44 | 6 | |||
| 7 | 48124 | GUIDE, CHECK VALVE - BELL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 48363 | GASKET, CHECK VALVE GUIDE | ACT | $9.30 | $9.17 | 1 | |||
| 9 | 48452 | QUAD RING, OIL RELEASE CHECK VALVE | ACT | $6.40 | $6.25 | 1 | |||
| 10 | 48219 | CHECK VALVE, OIL RELEASE | ACT | $72.08 | $69.22 | 1 | |||
| 11 | 48442 | SPRING, TENSION - OIL RELEASE CHECK VALVE | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 48163A1 | COVER ASSEMBLY, CHECK VALVE GUIDE | SS |
|
$0.00 | $0.00 | 1 | ||
| 13 | 47841 | --CONNECTOR, CHECK VALVE GUIDE COVER | ACT | $17.00 | $16.58 | 1 | |||
| 14 | 48363 | GASKET, CHECK VALVE GUIDE COVER | ACT | $9.30 | $9.17 | 1 | |||
| 15 | 36154 | SCREW, CHECK VALVE GUIDE COVER TO BELL HOUSING (1 3/8") | SS |
|
$0.00 | $0.00 | 4 | ||
| 16 | 26992 | LOCKWASHER, CHECK VALVE GUIDE COVER SCREW | ACT | $1.20 | $1.18 | 4 | |||
| 17 | 48458 | HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (10") | ACT | $25.70 | $25.33 | 1 | |||
| 18 | 815504310 | CLAMP, OIL HOSE TO BELL HOUSING AND GIMBAL HOUSING | 32523 | SS/ACT |
|
$17.30 | $16.87 | 2 | |
| 19 | 47370A1 | BELLOWS, ASSEMBLY, UNIVERSAL JOINT | ACT | $296.61 | $283.43 | 1 | |||
| 20 | 815504388 | CLAMP, BELLOWS TO GIMBAL HOUSING AND BELL HOUSING | 59381 | SS/ACT |
|
$24.83 | $24.39 | 2 | |
| 21 | 815228T19 | GIMBAL HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 57988 | --STUD GIMBAL HOUSING TO TRANSOM PLATE (5 3/8") | ACT | $56.50 | $54.35 | 6 | |||
| 23 | 47366T | --GASKET, GIMBAL HOUSING TO TRANSOM | 47366 | SS/ACT |
|
$79.07 | $76.75 | 1 | |
| 24 | 30457 | --BEARING, ROLLER - ROLLER HOUSING (LOWER) | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 31851 | --OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING | ACT | $30.62 | $30.07 | 2 | |||
| 26 | 21638 | --BEARING, ROLLER - GIMBAL HOUSING (UPPER) | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 32121 | --OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING | 35025 | SS/ACT |
|
$20.21 | $19.86 | 1 | |
| 28 | 8M0169589 | --FITTING, GREASE - GIMBAL HOUSING | 31345 | SS/ACT |
|
$4.60 | $4.49 | 1 | |
| 29 | 77633Q | --LUBRICAP, GIMBAL HOUSING GREASE FITTING | 29359 | SS/ACT |
|
$6.70 | $6.54 | 1 | |
| 30 | 1368211 | --EMBLEM, GIMBAL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 47841 | --CONNECTOR, GIMBAL HOUSING (OIL HOSE) | ACT | $17.00 | $16.58 | 1 | |||
| 32 | 56766 | --STUD, GIMBAL HOUSING TO HYDRAULIC CONNECTOR (1 3/8") | ACT | $3.60 | $3.52 | 2 | |||
| 33 | 34762A1 | --PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING | ACT |
|
$24.33 | $23.90 | 1 | ||
| 34 | 34763 | ----SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4") | ACT | $7.50 | $7.32 | 2 | |||
| 35 | 38565 | --ELBOW, GIMBAL HOUSING (OIL HOSE) - 45 DEGREES | ACT | $31.92 | $31.34 | 1 | |||
| 36 | 8M0062669 | HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (8 1/4") | 48512 | SS/ACT |
|
$27.33 | $26.84 | 1 | |
| 37 | 815504310 | CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE | 32523 | SS/ACT |
|
$17.30 | $16.87 | 2 | |
| 38 | 47347 | CONNECTOR, HYDRAULIC - GIMBAL HOUSING | ACT | $51.00 | $49.06 | 1 | |||
| 39 | 476441 | GASKET, HYDRAULIC CONNECTOR | 47644 | SS/ACT |
|
$2.60 | $2.54 | 1 | |
| 40 | 35888 | NUT, GIMBAL HOUSING TO HUDRAULIC CONNECTOR STUD | ACT | $6.60 | $6.44 | 2 | |||
| 41 | 814646 | PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER) | ACT | $196.18 | $185.44 | 1 | |||
| 42 | 47381 | COTTER PIN, RETAINING - LOWER SWIVEL PIN | ACT | $1.44 | $1.43 | 1 | |||
| 43 | 34879 | SCREW, BELL HOUSING TO TRANSOM PLATE (4 3/4") | SS |
|
$0.00 | $0.00 | 2 | ||
| 44 | 32620 | WASHER, RUBBER - BELL HOUSING SCREW | ACT | $1.40 | $1.37 | 2 | |||
| 45 | 52670 | JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER | SS |
|
$0.00 | $0.00 | 1 | ||
| 46 | 47225 | SCREW, JUMPER CABLE | SS |
|
$0.00 | $0.00 | 1 |
