Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

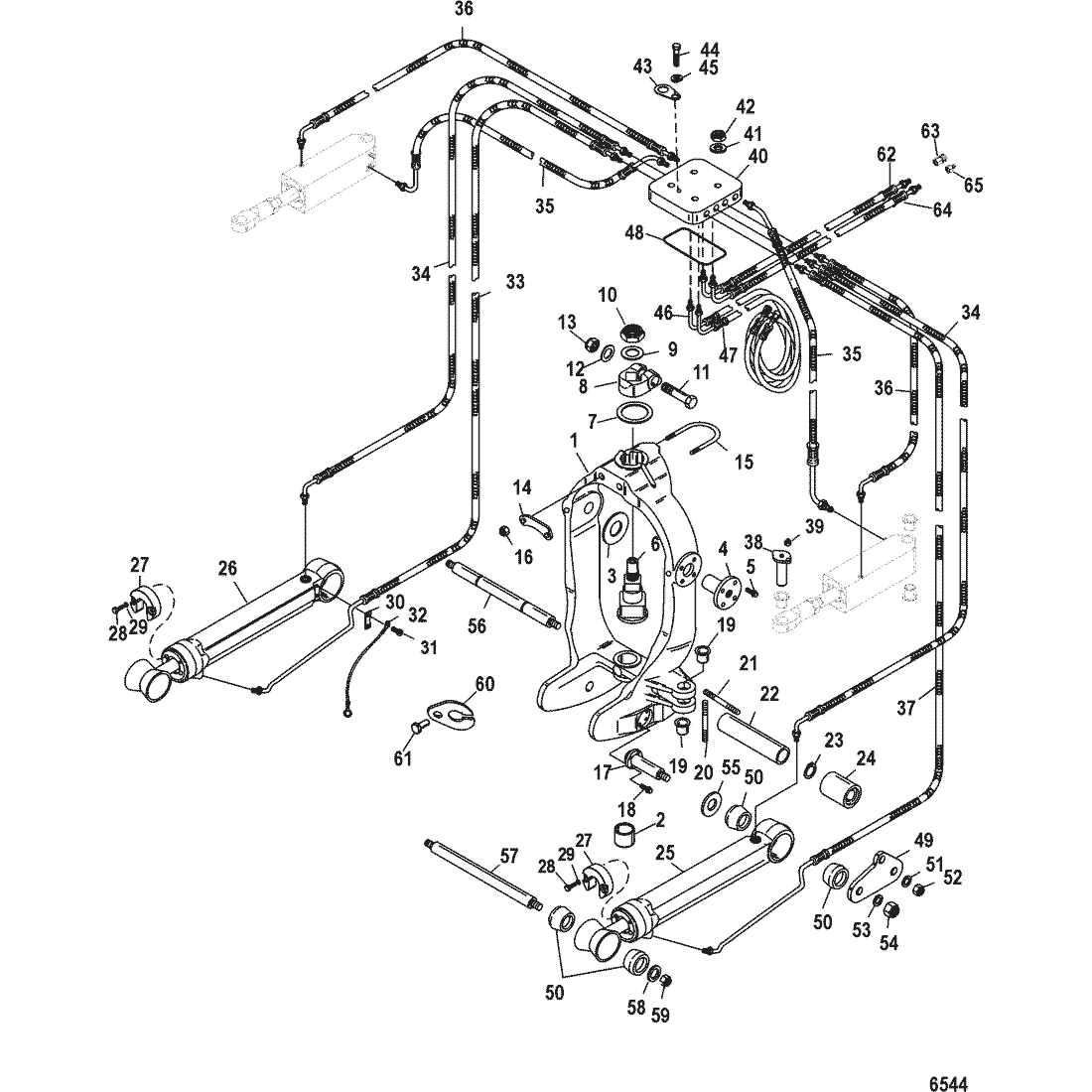

1 840532A02 GIMBAL RING ASSEMBLY 840532A1 SS $1,936.49 $1,775.23 1
2 847638 --BUSHING ACT $57.49 $55.31 1
3 41721 --WASHER ACT $7.89 $7.71 2
4 8219971 PIN, Hinge, 4 Bolt Design ACT $226.99 $213.38 2
5 840907 SCREW, (.250-20 x .750) ACT $4.69 $4.59 8
6 98230A1 SHAFT ASSEMBLY, Swivel ACT $371.49 $354.97 1
6 866718A01 SHAFT ASSEMBLY, Swivel, Anodized ACT $394.49 $376.81 1
7 98548 WASHER, (1.125 ) ACT $6.99 $6.83 1
8 866322T01 CLAMP, Top Pin 98262T1 SS $311.49 $293.11 1
9 85344 WASHER, (.750 Inside Diameter) ACT $2.79 $2.72 1
10 8M2014641 NUT, (.750-16) 82671323 SS $17.89 $17.46 1
11 807204 SCREW, (.437-20 x 2.00) ACT $4.49 $4.39 1
12 861854 WASHER, (.453 x .750 x .032) Stainless Steel ACT $4.19 $4.10 1
13 8M2008293 NUT, (.437-20) 98533 SS $1.20 $1.18 1
14 816510T BRACKET ACT $69.49 $66.61 1
15 805164 U BOLT ACT $37.49 $36.83 1
16 862903 NUT, (.375-24) ACT $3.59 $3.50 2
17 840728 PIN, Mounting, Trim Cylinder ACT $324.49 $305.43 2
18 840907 SCREW, (.250-20 x .750) ACT $4.69 $4.59 8
19 8M0214952 BUSHING 8159501 SS $12.29 $12.00 4
20 8M0034435 STUD, (#10-32 x 1.00) 15093 SS $10.99 $10.73 2
21 8M0041668 STUD, (.437-14/.437-20 x 1.875) 57982 SS $15.49 $15.12 2
22 840803 SPACER ACT $65.99 $63.16 1
23 805272 RING, Retaining ACT $12.09 $11.80 2
24 840802 SPACER ACT $59.49 $56.99 2
25 8M0108286 TRIM CYLINDER ASSEMBLY, Starboard 98704A29 SS $769.86 $724.07 1
26 8M0108285 TRIM CYLINDER ASSEMBLY, Port 98703A29 SS $751.63 $706.92 1
27 806189T1 --ANODE ASSEMBLY ACT $15.89 $15.51 2
28 806290 ----SCREW, (#10-32 x .625) ACT $1.20 $1.18 4
29 69432 ----LOCKWASHER, External (#10) ACT $1.00 $0.98 4
NS 87399A2 --OVERHAUL KIT ACT $241.99 $227.74 2
NS 87400A2 ----SEAL KIT ACT $39.99 $39.20 2
30 85060 PLATE ACT $8.69 $8.49 2
31 85486 SCREW, (.250-20 x .380) Stainless Steel ACT $1.80 $1.76 4
32 8M0207768 CABLE ASSEMBLY, Ground 88238A13 SS $14.09 $13.75 2
33 840557 HOSE, Trim Cylinder, Port ACT $118.82 $113.55 1
34 840555 HOSE, Hydraulic ACT $123.41 $117.93 2
35 840552 HOSE, Hydraulic ACT $155.57 $148.65 2
36 840554 HOSE, Hydraulic ACT $72.27 $70.15 2
37 840556 HOSE, Trim Cylinder, Starboard ACT $119.57 $114.26 1
38 840832 PIN ACT $149.87 $143.22 2
39 8267096 NUT, (#10-32) Stainless Steel ACT $3.69 $3.59 2
40 840691 BLOCK ACT $327.61 $313.06 1
41 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 3
42 826709109 NUT, (.250-28) Stainless Steel ACT $3.59 $3.50 4
43 847022 PLATE ACT $7.46 $7.36 1
44 68513 SCREW, (#10-32 x .375) Stainless Steel ACT $1.40 $1.37 1
45 69432 LOCKWASHER, External (#10) ACT $1.00 $0.98 1
46 840657 HOSE ASSEMBLY, Black, Hydraulic ACT $131.68 $125.84 1
47 840692 HOSE ASSEMBLY, Gray, Hydraulic ACT $131.68 $125.84 1
48 805732 O-RING, (2.612 x .103) ACT $21.49 $21.03 2
49 840744 PLATE ACT $60.34 $58.58 2
50 807073 BUSHING ACT $10.99 $10.73 4
51 842922 WASHER, (.450 x .750 x .060) Stainless Steel ACT $1.00 $0.98 4
52 8M0204653 NUT, (.437-20) Stainless Steel 82671015 SS $5.29 $5.17 4
53 49339 WASHER, (.8125) ACT $1.90 $1.86 2
54 35000 NUT, (.500-20) Stainless Steel ACT $14.59 $14.24 2
55 44164 WASHER ACT $4.09 $4.00 2
56 44167A1 PIN ACT $105.49 $99.04 1
57 44166 PIN ACT $102.99 $96.84 1
58 44163 WASHER, (.450 x 1.75 x .12) ACT $3.79 $3.69 1
59 859116 NUT, (.437-20) ACT $5.09 $4.98 1
60 12078 CLAMP ACT $13.59 $13.27 1
61 28635 SCREW, (.250-20 x .620) Stainless Steel ACT $1.80 $1.76 1
62 840656 HOSE, Hydraulic NLA $0.00 $0.00 1
62 8M0041852 HOSE, Hydraulic ACT $160.17 $153.06 1
63 865410001 FITTING, Female Quick Connect ACT $18.89 $18.50 1
63 8M0042488 FITTING ACT $71.35 $69.26 1
64 840656 HOSE, Hydraulic NLA $0.00 $0.00 1
64 8M0041852 HOSE, Hydraulic ACT $160.17 $153.06 1
65 865411001 FITTING, Male Quick Connect ACT $19.09 $18.74 1
65 8M0042488 FITTING ACT $71.35 $69.26 1
