| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

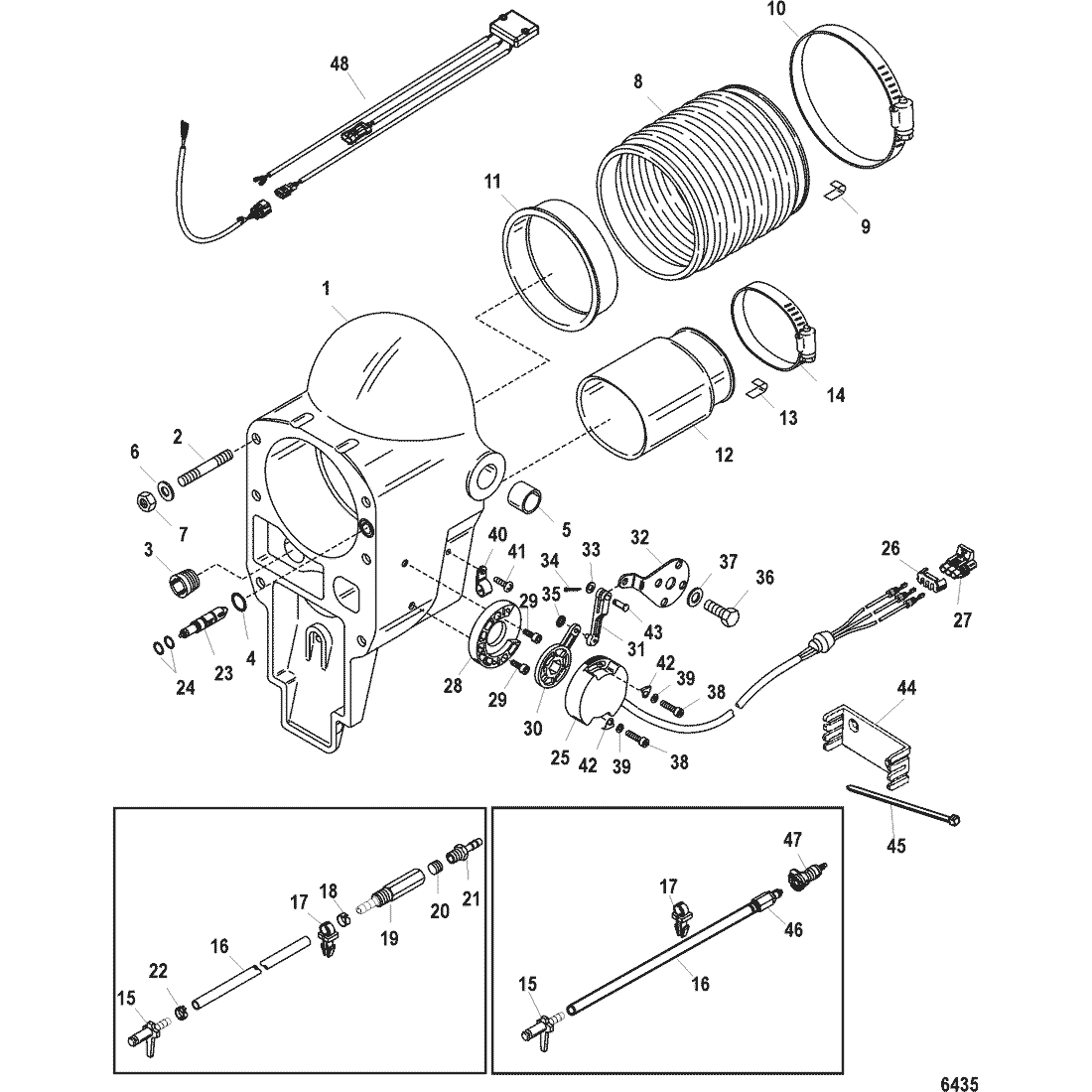

| 1 | 41646A11 | BELL HOUSING ASSEMBLY | ACT |
|
$876.49 | $798.23 | 1 | ||
| 2 | 59579 | --STUD, (.437-14/.437-20 x 2.812) | ACT | $8.69 | $8.49 | 6 | |||
| 3 | 41674T | --INSERT | 41674 | SS |
|
$6.09 | $5.95 | 1 | |
| 4 | 8M0204667 | --O-RING | 62705 | SS |
|
$1.70 | $1.66 | 1 | |
| 5 | 847637 | --BUSHING | ACT | $31.29 | $30.69 | 2 | |||
| 6 | 8M0204655 | WASHER, (.435 x .875 x .105) Stainless Steel | 35935 | SS |
|
$2.69 | $2.62 | 5 | |
| 7 | 859116 | NUT, (.437-20) | ACT | $5.09 | $4.98 | 6 | |||
| 8 | 8M0062406 | BELLOWS ASSEMBLY | 86840A3 | SS |
|
$139.49 | $125.76 | 1 | |
| 9 | 8M0126505 | --CLIP, Grounding | 86049 | SS |
|
$1.70 | $1.66 | 1 | |
| 10 | 815504372 | --CLAMP, Worm Gear | ACT | $16.49 | $16.09 | 1 | |||
| 11 | 862209 | --SLEEVE | ACT | $9.49 | $9.27 | 1 | |||
| 12 | 78458A1 | TUBE | ACT |
|
$85.99 | $80.68 | 1 | ||
| 13 | 8M0126505 | --CLIP, Grounding | 86049 | SS |
|
$1.70 | $1.66 | 1 | |
| 14 | 815504348 | CLAMP, Worm Gear | ACT | $18.99 | $18.58 | 1 | |||
| 15 | 815303T | ADAPTOR | 815303 | SS |
|
$11.49 | $11.22 | 1 | |
| 16 | 5495053 | TUBING, (25.00 Feet Bulk), Speedo | 5495025 | NLA |
|
$72.99 | $68.73 | 1 | |
| 17 | 12994 | CLIP | ACT | $2.99 | $2.92 | 1 | |||
| 18 | 865261 | CLAMP | 816606 | NLA |
|
$21.79 | $21.36 | 1 | |
| 19 | 865261 | FITTING | ACT |
|
$21.79 | $21.36 | 1 | ||
| 20 | 878089 | --PLUG, Pipe (.0625-27) | ACT |
|
$18.29 | $17.92 | 1 | ||
| 21 | 814382 | CONNECTOR | ACT |
|
$2.10 | $2.05 | 1 | ||
| 22 | 818557 | CLAMP | ACT | $7.99 | $7.81 | 1 | |||
| 23 | 18920A1 | VALVE ASSEMBLY | ACT |
|
$123.49 | $111.34 | 1 | ||
| 24 | 48171 | --O-RING, (.364. x .070) | ACT | $1.70 | $1.66 | 2 | |||
| 25 | 863187A2 | SENDER ASSEMBLY, Trim | ACT |
|
$174.78 | $157.57 | 1 | ||
| 26 | 831957 | --RETAINER | ACT | $2.59 | $2.53 | 1 | |||
| 27 | 8307973 | --CONNECTOR | ACT | $5.69 | $5.56 | 1 | |||
| 28 | 840846 | HOUSING, Actuator Arm Support | ACT | $42.75 | $42.15 | 1 | |||
| 29 | 90188 | SCREW, (#10-24 x .500) Stainless Steel | ACT | $1.70 | $1.66 | 2 | |||
| 30 | 840845 | ARM, Actuator | ACT | $37.49 | $36.95 | 1 | |||
| 31 | 840843 | LINK ROD | ACT | $51.38 | $49.11 | 1 | |||
| 32 | 840844 | BRACKET | ACT | $29.99 | $29.38 | 1 | |||
| 33 | 89302 | WASHER, (.203 x .406 x .040) | ACT | $1.80 | $1.76 | 1 | |||
| 34 | 210711 | COTTER PIN | 21071 | SS |
|
$3.69 | $3.59 | 1 | |
| 35 | 65110 | NUT | ACT | $1.70 | $1.66 | 1 | |||
| 36 | 99204 | SCREW, (.437-14 x 1.00) Stainless Steel | ACT | $5.09 | $4.98 | 1 | |||
| 37 | 842922 | WASHER, (.450 x .750 x .060) Stainless Steel | ACT | $1.00 | $0.98 | 1 | |||
| 38 | 37978 | SCREW, (#10-32 x .750) Stainless Steel | ACT | $3.39 | $3.30 | 2 | |||
| 39 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 40 | 26550 | CLAMP | ACT | $4.79 | $4.69 | 1 | |||
| 41 | 8M0113176 | SCREW, (#10-24 x .38) | 807754 | SS |
|
$1.10 | $1.08 | 1 | |
| 42 | 57008 | RETAINER | ACT | $3.99 | $3.91 | 2 | |||
| 43 | 67297 | PIN, Clevis | ACT | $12.19 | $11.90 | 1 | |||
| 44 | 79146 | RETAINER | ACT | $5.59 | $5.47 | 1 | |||
| 45 | 816311T | TIE STRAP, (8.00 Inches) | ACT | $0.60 | $0.59 | 1 | |||
| 46 | 865391 | FITTING ASSEMBLY, Speedometer, Male Quick Connect | ACT |
|
$53.99 | $50.82 | 1 | ||
| 47 | 865417 | FITTING, Female Quick Connect | ACT |
|
$15.59 | $15.22 | 1 | ||
| 48 | 884359T1 | MODULE ASSEMBLY, Trim Sender | ACT | $220.49 | $198.41 | 1 |
