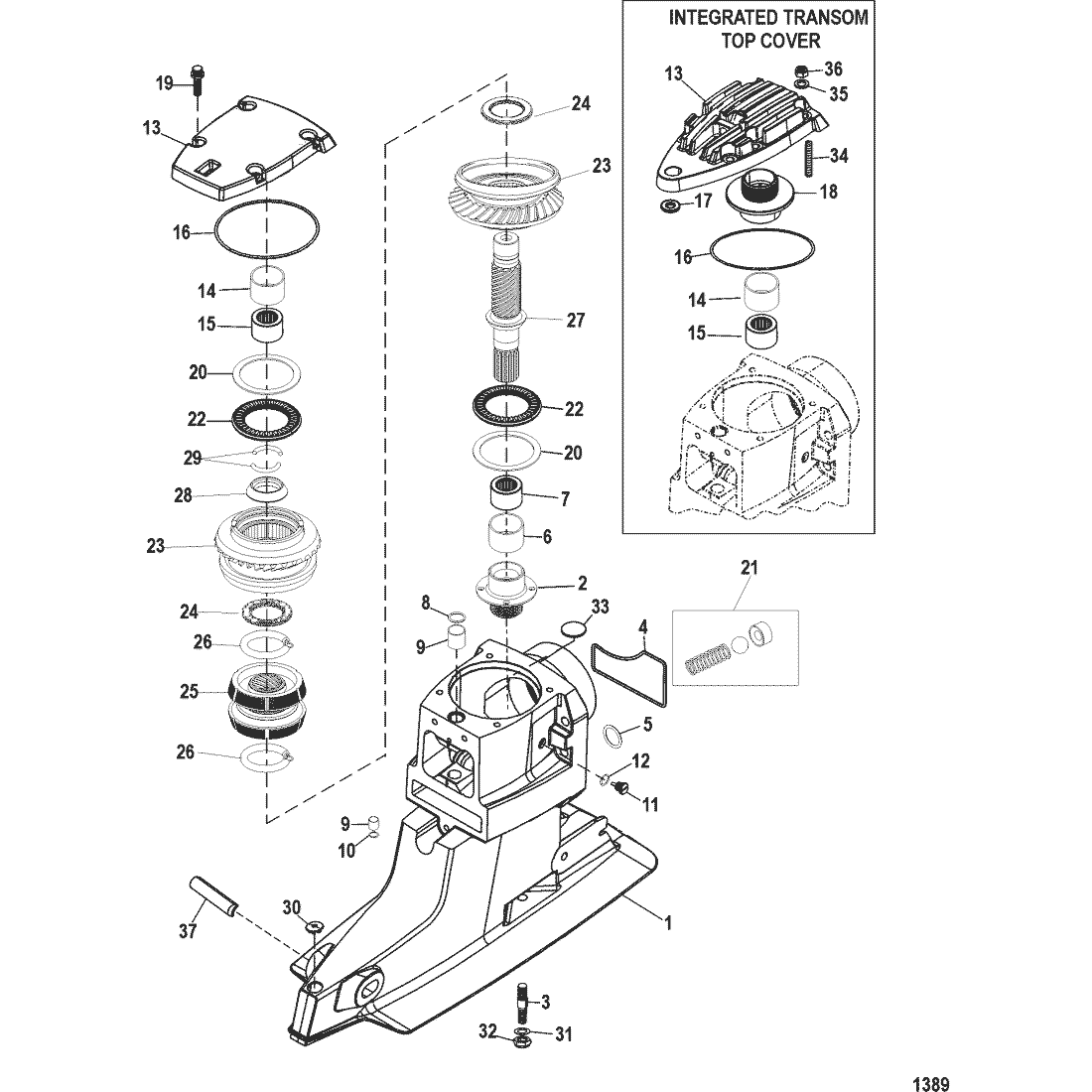

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 864571A70 | HOUSING ASSEMBLY, Driveshaft | 8868H70 | SS/ACT |
 |
$2,622.79 | $2,404.37 | 1 | |
| 2 | NSS | --NOT SOLD SEPARATE, Adaptor, Bearing |
|
$0.00 | $0.00 | 1 | |||
| 3 | 8M0133358 | --STUD, (.437-14/.437-20 x 2.060) | 579203 | SS/ACT |
|
$19.90 | $19.41 | 4 | |
| 4 | 16755Q1 | --SEAL | ACT | $11.90 | $11.61 | 1 | |||
| 5 | 8M0204681 | --O-RING, (1.424 x .103) | 45710 | SS/ACT |
|
$3.70 | $3.61 | 1 | |
| 6 | 861791 | --RACE | ACT | $70.83 | $68.13 | 1 | |||
| 7 | 843240 | --BEARING ASSEMBLY, Roller | ACT | $11.20 | $10.93 | 1 | |||
| 8 | 62705 | --O-RING | ACT | $1.68 | $1.64 | 1 | |||
| 9 | 861209A1 | --BUSHING KIT | ACT |
|
$38.92 | $38.22 | 1 | ||
| 10 | 127091 | ----SEAL | ACT | $8.50 | $8.29 | 1 | |||
| 11 | 8M0058389 | --FITTING KIT, Magnetic, Plug Fill/Drain | 67892A1 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 12 | 191833 | ----WASHER | 191832 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 13 | 92068A15 | --COVER ASSEMBLY, Top | ACT | $393.57 | $376.20 | 1 | |||
| 13 | 840838T02 | COVER ASSEMBLY, Top | 840838T1 | SS/ACT |
|
$908.50 | $854.72 | 1 | |
| 14 | 861791 | ----RACE | ACT | $70.83 | $68.13 | 1 | |||
| 15 | 843240 | ----BEARING ASSEMBLY, Roller | ACT | $11.20 | $10.93 | 1 | |||
| 16 | 97387 | ----O-RING | ACT | $11.00 | $10.73 | 1 | |||
| 17 | 41721 | ----WASHER | ACT | $4.60 | $4.49 | 1 | |||
| 18 | 8619361 | ADAPTOR, Bearing | ACT |
|
$383.42 | $361.07 | 1 | ||
| 19 | 8M0113180 | --SCREW, (.375-16 x 1.00) | 98794 | SS/ACT |
|
$4.90 | $4.78 | 4 | |
| 20 | 864596058 | --SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing | ACT | $40.00 | $39.28 | AR | |||
| 20 | 864596059 | --SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing | ACT | $38.75 | $38.05 | AR | |||
| 20 | 864596060 | --SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing | ACT | $39.83 | $39.12 | AR | |||
| 20 | 864596061 | --SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing | ACT | $40.58 | $39.85 | AR | |||
| 20 | 864596062 | --SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing | ACT | $39.58 | $38.87 | AR | |||
| 20 | 864596063 | --SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing | ACT | $40.58 | $39.85 | AR | |||
| 20 | 864596064 | --SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing | ACT | $38.92 | $38.22 | AR | |||
| 20 | 864596065 | --SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing | ACT | $38.92 | $38.22 | AR | |||
| 20 | 864596066 | --SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing | ACT | $38.92 | $38.22 | AR | |||
| 21 | 17997A1 | --SPRING KIT | ACT | $10.00 | $9.76 | 1 | |||
| 22 | 861787 | BEARING ASSEMBLY | ACT | $39.17 | $38.46 | 2 | |||
| 23 | 887906A1 | GEAR SET, (29/27) | 883476A1 | SS/ACT |
|
$1,721.14 | $1,577.81 | 1 | |
| 23 | 887903A1 | GEAR SET, (32/27) | 883473A1 | SS/ACT |
|
$1,837.07 | $1,684.09 | 1 | |
| 23 | 840898A3 | GEAR SET, (16/19) | ACT |
|
$2,971.36 | $2,723.91 | 1 | ||
| 24 | 861792 | BEARING ASSEMBLY | ACT | $44.25 | $43.45 | 1 | |||
| 25 | 865344A01 | CLUTCH ASSEMBLY | 861781A1 | SS/ACT |
|
$551.36 | $518.72 | 1 | |
| 26 | 93505 | --SPRING | ACT | $8.50 | $8.29 | 2 | |||
| 27 | 812773T02 | DRIVESHAFT, Upper | ACT | $448.93 | $429.11 | 1 | |||
| 28 | 86770 | COLLAR | ACT | $70.08 | $67.41 | 1 | |||
| 29 | 8M0204675 | KEEPER | 97351 | SS/ACT |
|
$10.90 | $10.63 | 2 | |
| 30 | 824928001 | PLUG, Rubber | 824928 | SS/ACT |
|
$5.30 | $5.17 | 1 | |
| 31 | 861854 | WASHER, (.453 x .750 x .032) Stainless Steel | ACT | $4.00 | $3.91 | 4 | |||
| 32 | 8M0143423 | NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 4 | |
| 33 | NSS | NOT SOLD SEPARATE, Plug |
|
$0.00 | $0.00 | 1 | |||
| 34 | 840851 | STUD | ACT |
|
$25.67 | $25.21 | 6 | ||
| 35 | 37828 | WASHER, (.390 x .625 x .062) Stainless Steel | ACT |
|
$0.80 | $0.79 | 6 | ||
| 36 | 82671013 | NUT, (.375-24), Lock | 34932 | SS/ACT |
|
$4.50 | $4.39 | 6 | |
| 37 | 808006 | INSERT, Trim Adjustment | ACT | $11.00 | $10.73 | 1 | |||
| NS | 16709A2 | SEAL KIT, Driveshaft Housing | ACT | $134.75 | $126.90 | 1 |
