| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

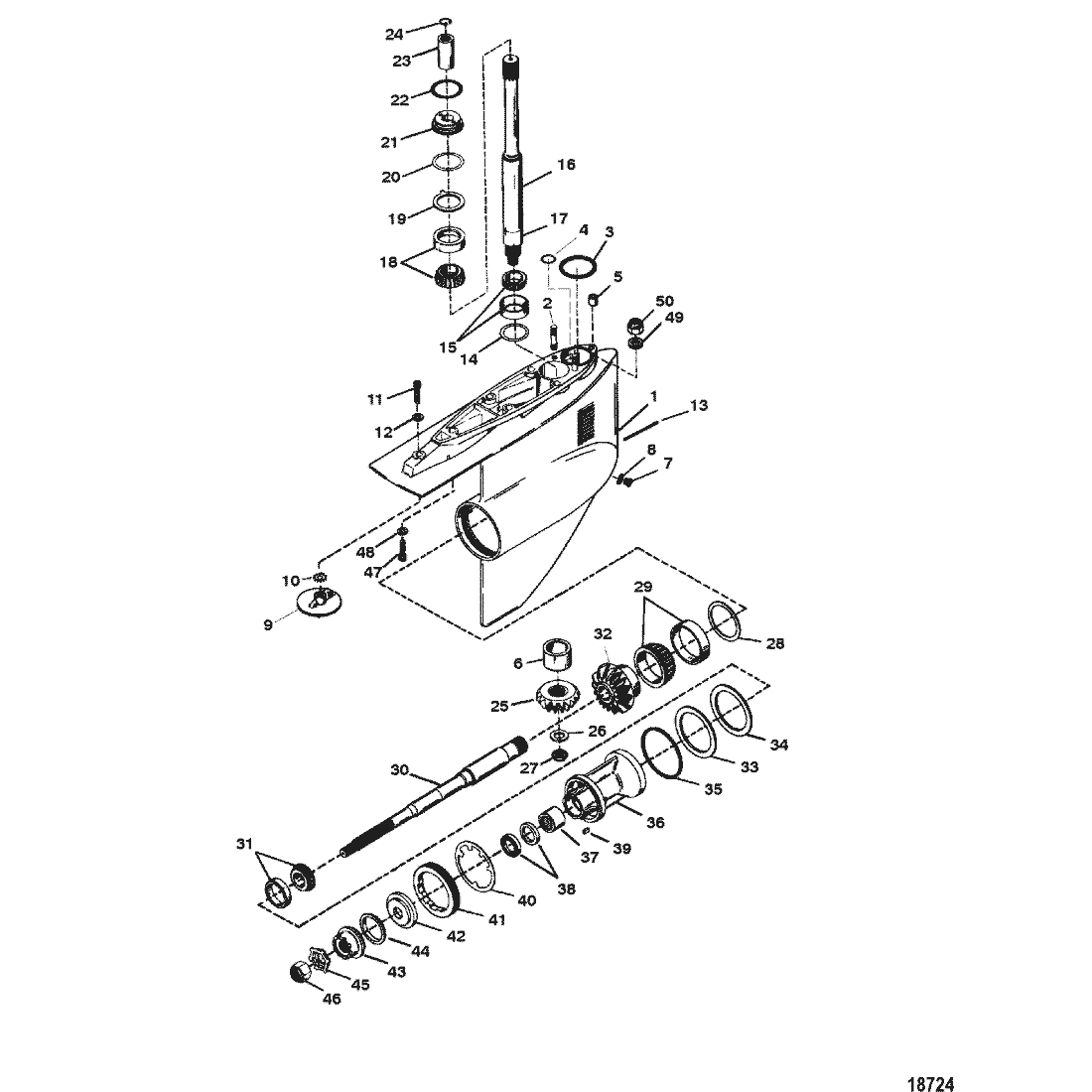

| - | 8294A19 | GEAR HOUSING ASSEMBLY (1.50:1 - 1.65:1 Ratio) | ACT | $6,550.00 | $6,091.49 | 1 | |||
| - | 8294A16 | GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio) | ACT |
 |
$6,550.00 | $6,091.49 | 1 | ||
| 1 | 8294A14 | --GEAR HOUSING ASSEMBLY | ACT |
|
$3,709.93 | $3,400.97 | 1 | ||
| 2 | 8M0133358 | ----STUD, (.437-14/.437-20 x 2.060) | 579203 | SS/ACT |
|
$19.90 | $19.41 | 2 | |
| 3 | 8M0214925 | ----O-RING | ACT |
|
$5.10 | $4.98 | 1 | ||
| 4 | 8M0204680 | ----SEAL | 455771 | SS/ACT |
|
$4.10 | $4.00 | 1 | |
| 5 | 805344 | ----SEAL, (.625 Outside Diameter) | ACT | $4.00 | $3.91 | 1 | |||
| 6 | 86754T | ----BEARING, Roller | 86754 | SS/ACT |
|
$78.50 | $75.51 | 1 | |
| 7 | 8M0058389 | ----FITTING KIT, Magnetic, Plug Fill/Drain | 67892A1 | SS/ACT |
|
$10.30 | $10.05 | 2 | |
| 8 | 191833 | ------WASHER, Fiber | 19183 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 9 | 76214Q5 | ----ANODE KIT | 76214A5 | SS/ACT |
|
$28.75 | $28.23 | 1 | |
| 10 | 806210 | ----LOCKWASHER, (.437) | ACT | $1.70 | $1.66 | 1 | |||
| 11 | 90084 | ----SCREW, (.437-14 x 1.500) | ACT | $4.40 | $4.30 | 1 | |||
| 12 | 861854 | ----WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 1 | |
| 13 | 850186 | ----TUBE | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 92914A1 | --SHIM KIT | ACT |
|
$46.33 | $45.50 | AR | ||
| 15 | 8M0103470 | --BEARING ASSEMBLY, Tapered Roller | 66668A1 | SS/ACT |
|
$44.25 | $43.45 | 1 | |
| 16 | 888434A1 | --DRIVESHAFT ASSEMBLY | 812561A2 | SS/ACT |
|
$861.79 | $810.77 | 1 | |
| 17 | 815901 | ----RACE, Bearing | ACT | $61.08 | $58.76 | 1 | |||
| 18 | 8M0103473 | --BEARING ASSEMBLY, Tapered Roller | 86748A1 | SS/ACT |
|
$51.50 | $49.54 | 1 | |
| 19 | 86739 | --TAB WASHER | ACT | $17.50 | $17.07 | 1 | |||
| 20 | 86749A1 | --SHIM KIT | ACT |
|
$44.17 | $43.37 | AR | ||
| 21 | 8M0046302 | --SPACER | ACT | $14.70 | $14.34 | 1 | |||
| 22 | 20826 | --O-RING, (2.230 x .139) | ACT |
|
$5.10 | $4.98 | 1 | ||
| 23 | 88243A3 | --COUPLING ASSEMBLY | ACT |
|
$112.00 | $105.48 | 1 | ||
| 24 | 88242 | ----RING, Retaining | ACT | $1.10 | $1.08 | 1 | |||
| 25 | 41656T | --GEAR, Pinion (1.81:1 - 2.00:1 - 2.20:1 Ratio) | 41656 | SS/ACT |
|
$402.00 | $384.26 | 1 | |
| 25 | 827304T | --GEAR, Pinion (1.50:1 - 1.65:1 Ratio) | 827304 | SS/ACT |
|
$385.79 | $368.76 | 1 | |
| 26 | 86746 | --WASHER | ACT | $19.50 | $19.02 | 1 | |||
| 27 | 20739 | --NUT, (.750-16) | ACT | $5.70 | $5.56 | 1 | |||
| 28 | 55499A1 | --SHIM ASSEMBLY | ACT |
|
$21.58 | $21.20 | AR | ||
| 29 | 8M0103475 | --BEARING ASSEMBLY, Tapered Roller | ACT | $138.33 | $130.27 | 1 | |||
| 30 | 62820T1 | --PROPELLER SHAFT | 62820 | SS/ACT |
|
$1,329.86 | $1,219.11 | 1 | |
| 31 | 8M0103474 | --BEARING ASSEMBLY, Tapered Roller | 54036A1 | SS/ACT |
|
$85.92 | $82.64 | 1 | |
| 32 | 41657T | --GEAR, DRIVE (1.81:1 - 2.00:1 - 2.20:1 Ratio) | ACT |
|
$773.21 | $727.45 | 1 | ||
| 32 | 827303 | --GEAR, DRIVE (1.50:1 - 1.65:1 Ratio) | ACT |
|
$770.14 | $724.56 | 1 | ||
| 33 | 860323 | --RING, Thrust | ACT |
|
$127.42 | $119.99 | 1 | ||
| 34 | 66093T | ----RING, Load | ACT | $41.58 | $40.84 | 1 | |||
| 35 | 34821 | --O-RING | ACT |
|
$7.60 | $7.42 | 1 | ||
| 36 | 863913A04 | --CARRIER ASSEMBLY, Bearing | 62813A4 | SS/ACT |
|
$480.29 | $459.09 | 1 | |
| 37 | 54042T | ----BEARING, Roller | ACT | $36.92 | $36.25 | 1 | |||
| 38 | 814242 | ----SEAL, Oil, Fish Line Cutter | ACT | $39.58 | $38.87 | 1 | |||
| 38 | 821092 | ----SEAL, Oil | ACT |
|
$35.50 | $34.86 | 1 | ||
| 39 | 30281 | --KEY | ACT | $2.90 | $2.83 | 1 | |||
| 40 | 54167 | --TAB WASHER | ACT | $19.42 | $19.07 | 1 | |||
| 41 | 8M0169089 | --RETAINER | 54163 | SS/ACT |
|
$117.92 | $111.05 | 1 | |
| 42 | 55074T | THRUST HUB | ACT | $44.74 | $43.95 | 1 | |||
| 43 | 55073A2 | WASHER ASSEMBLY | ACT |
|
$82.20 | $79.07 | 1 | ||
| 44 | 55072 | --WASHER | ACT | $13.01 | $12.77 | 1 | |||
| 45 | 34817 | TAB WASHER | ACT | $13.01 | $12.77 | 1 | |||
| 46 | 82671127 | NUT, (1.0-14) | 54034 | SS/ACT |
|
$21.65 | $21.26 | 1 | |
| 47 | 90085 | SCREW, (.4375-14 x 2.75) | ACT | $12.00 | $11.71 | 1 | |||
| 48 | 47659 | LOCKWASHER, (.437) | ACT | $1.70 | $1.66 | 1 | |||
| 49 | 861854 | WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 2 | |
| 50 | 8M0143423 | NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 2 | |
| - | 76868A04 | SEAL KIT | 76868A2 | SS/ACT |
|
$145.75 | $137.26 | 1 |
