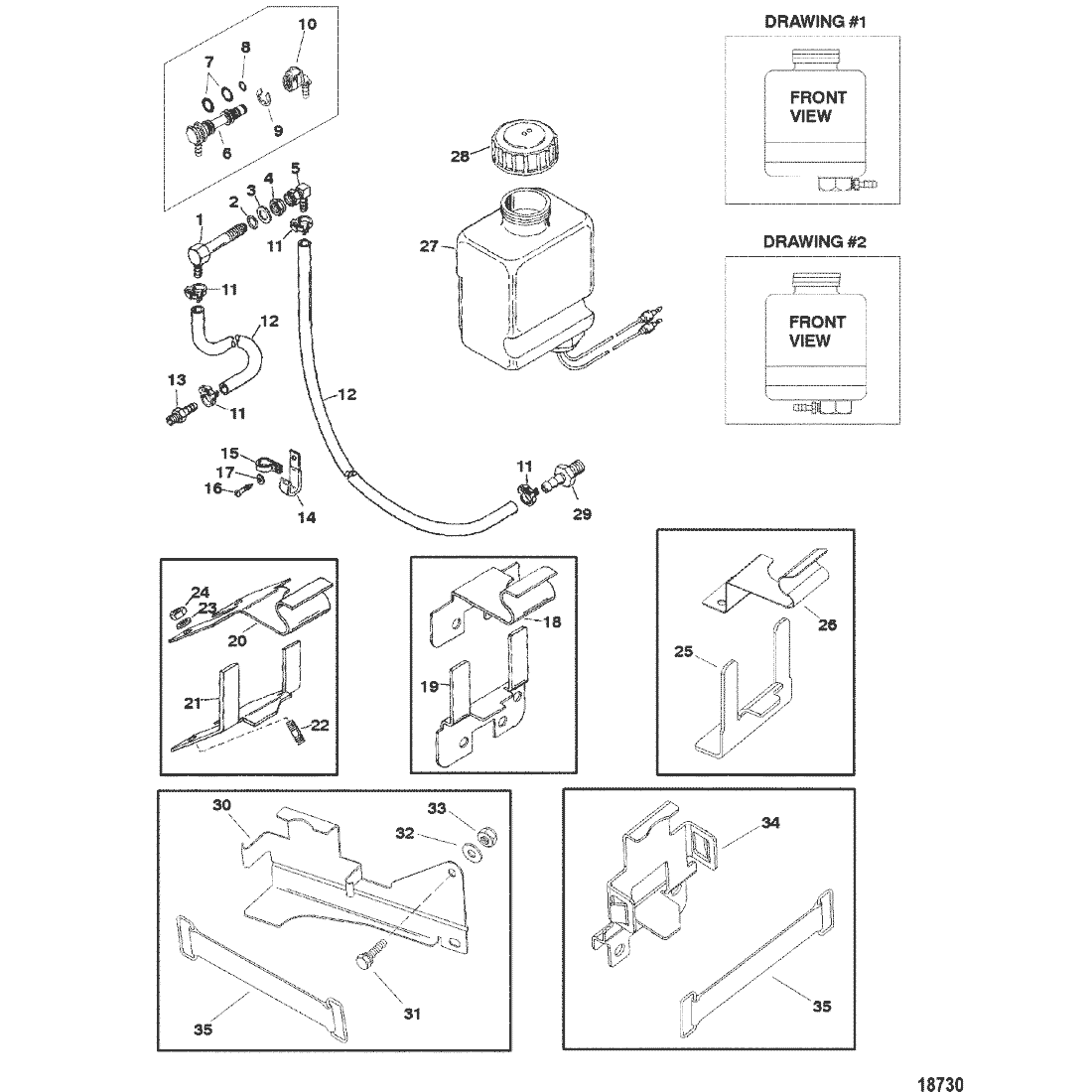

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18922 | CONNECTOR | ACT | $31.58 | $31.02 | 1 | |||
| 2 | 201951 | O-RING | 20195 | SS/ACT |
 |
$1.90 | $1.86 | 1 | |
| 3 | 861854 | WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 1 | |
| 4 | 8M0143423 | NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 1 | |
| 5 | 18923 | FITTING | ACT | $14.00 | $13.66 | 1 | |||
| 6 | 861150T02 | PLUG ASSEMBLY, Bulk Head | 861150A1 | SS/ACT |
|
$17.30 | $16.87 | 1 | |
| 7 | 201951 | --O-RING, (.487 x .103) | ACT | $1.90 | $1.86 | 2 | |||
| 8 | 627021 | --O-RING, (.301 x .070) | ACT | $1.60 | $1.57 | 1 | |||
| 9 | 87843 | E RING | ACT | $1.30 | $1.27 | 1 | |||
| 10 | 861163 | QUICK CONNECTOR, (90 Degree) | ACT | $15.10 | $14.73 | 1 | |||
| 11 | 415825 | CLAMP, Nylon | ACT | $3.80 | $3.71 | 4 | |||
| 12 | 8M0214996 | HOSE, (54.00 Inches Bulk) | 1940971 | SS/ACT |
|
$29.58 | $29.05 | 2 | |
| 13 | 8M0180507 | CONNECTOR | 16739 | SS/ACT |
|
$13.40 | $13.07 | 1 | |
| 14 | 642351 | J CLIP | ACT | $3.10 | $3.03 | 1 | |||
| 15 | 23567 | CLIP | ACT | $5.60 | $5.47 | 1 | |||
| 16 | 60605 | SCREW, (#10-16 x .750) | ACT | $1.10 | $1.08 | 1 | |||
| 17 | 8M0084613 | C WASHER | 69205 | SS/ACT |
|
$1.10 | $1.08 | 1 | |
| 18 | 806293T | BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 860065A1 | BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | 807024T | SS/ACT |
|
$35.75 | $35.11 | 1 | |
| 20 | 806292T1 | BRACKET | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 807025T | BRACKET | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 8M2004610 | STUD, (.375-16 x 2.130) | 805357 | SS/ACT |
|
$5.00 | $4.88 | 2 | |
| 23 | 20553 | WASHER, (.406 x .734 x .063) | ACT | $1.40 | $1.37 | 2 | |||
| 24 | 32219 | NUT, (.375-16) | ACT | $2.70 | $2.64 | 2 | |||
| 25 | 806649T | BRACKET, 262 MAG. EFI | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 806650T | BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 8M0075708 | RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side | 806193A3 | SS/ACT |
|
$67.25 | $64.69 | 1 | |
| 27 | 8M0075709 | RESERVOIR, Fitting Pointing Toward Left Side | 806193A13 | SS/ACT |
|
$67.25 | $64.69 | 1 | |
| 28 | 8067271 | --CAP, Drive Lube Monitor, Oil Bottle | 808625 | SS/ACT |
|
$14.40 | $14.05 | 1 | |
| 29 | 808624 | --CONNECTOR | ACT | $5.70 | $5.56 | 1 | |||
| 30 | 807839T1 | BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 657461 | SCREW AND LOCKWASHER, (.250-20 x .625) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | ACT | $1.60 | $1.57 | 1 | |||
| 32 | 69057 | WASHER, (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | ACT | $1.70 | $1.66 | 1 | |||
| 33 | 8267088 | NUT, (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | 72008 | SS/ACT |
|
$1.60 | $1.57 | 1 | |
| 34 | 860065A1 | BRACKET KIT, Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502) | ACT |
|
$35.75 | $35.11 | 1 | ||
| 35 | 808023T | --STRAP, Bracket | ACT |
|
$18.70 | $18.24 | 1 |
