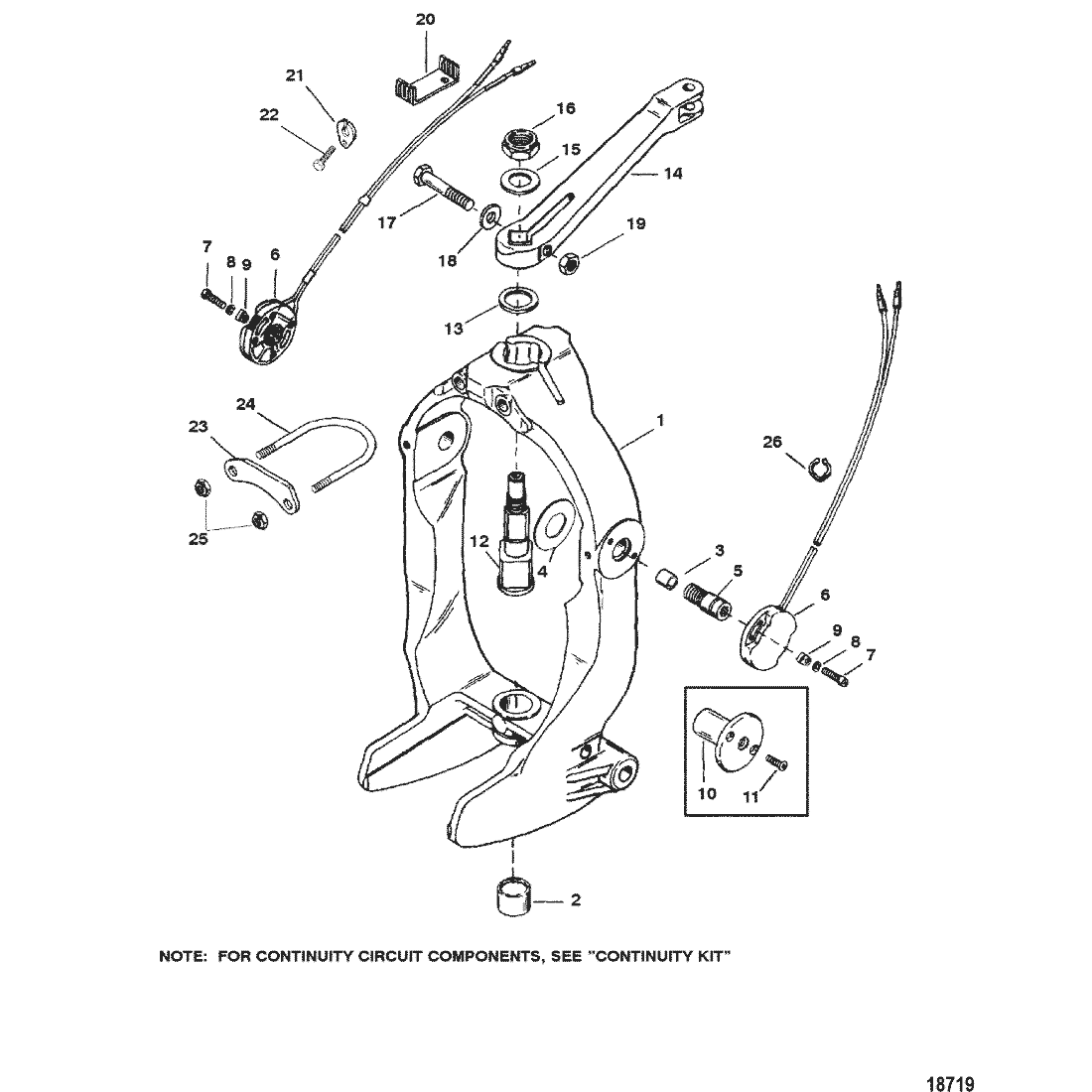

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 822374A4 | SS/ACT |
 |
$1,922.79 | $1,762.66 | 1 | |
| 2 | 847638 | --BUSHING, Use With Magnum Gimbal Ring | ACT |
|
$51.42 | $49.46 | 1 | ||
| 2 | 847638 | --BEARING, Use With Standard Gimbal Ring | 99352 | SS/ACT |
|
$51.42 | $49.46 | 1 | |
| 3 | 847637 | --BUSHING | ACT |
|
$26.92 | $26.43 | 2 | ||
| 4 | 41721 | --WASHER | ACT |
|
$4.60 | $4.49 | 2 | ||
| 5 | 86801 | SCREW, Hinge Pin | ACT |
|
$33.83 | $33.23 | 2 | ||
| 6 | 805320A03 | SWITCH ASSEMBLY | 805320A1 | SS/ACT |
|
$164.92 | $155.31 | 1 | |
| NS | 805134A4 | ROTOR KIT | ACT |
|
$42.50 | $41.74 | AR | ||
| 7 | 37978 | SCREW, (#10-32 x .750) Stainless Steel | ACT |
|
$3.30 | $3.22 | 4 | ||
| 8 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 4 | ||
| 9 | 57008 | RETAINER | ACT |
|
$3.80 | $3.71 | 4 | ||
| 1 | 822374A17 | GIMBAL RING ASSEMBLY | 822374A3 | SS/ACT |
|
$1,716.57 | $1,573.62 | 1 | |
| 2 | 847638 | --BUSHING | ACT |
|
$51.42 | $49.46 | 1 | ||
| 4 | 41721 | --WASHER | ACT |
|
$4.60 | $4.49 | 2 | ||
| 10 | 821997 | PIN, Hinge | ACT |
|
$193.25 | $181.99 | 2 | ||
| 11 | 821579 | SCREW, (#10-24 x .500) | ACT |
|
$4.60 | $4.49 | 4 | ||
| 12 | 98230A1 | SHAFT ASSEMBLY, Upper | ACT | $379.93 | $363.16 | 1 | |||
| 13 | 98548 | WASHER, (1.125 ) | ACT | $6.70 | $6.54 | 1 | |||
| 14 | 866322A01 | LEVER ASSEMBLY | 98262A1 | SS/ACT |
|
$301.83 | $284.24 | 1 | |
| 15 | 85344 | WASHER, (.750 Inside Diameter) | ACT | $2.70 | $2.64 | 1 | |||
| 16 | 8M2014641 | NUT, (.750-16) | 25599 | SS/ACT |
|
$15.50 | $15.12 | 1 | |
| 17 | 807204 | SCREW, (.437-20 x 2.00) | ACT | $4.30 | $4.20 | 1 | |||
| 18 | 861854 | WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 1 | |
| 19 | 8M2008293 | NUT, (.437-20) | 98533 | SS/ACT |
|
$1.20 | $1.18 | 1 | |
| 20 | 79146 | RETAINER | ACT | $5.40 | $5.27 | 1 | |||
| 21 | 12078 | CLAMP | ACT | $13.10 | $12.78 | 1 | |||
| 22 | 28635 | SCREW, (.250-20 x .620) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 23 | 816510T | BRACKET | ACT | $66.58 | $64.04 | 1 | |||
| 24 | 805164 | U BOLT | ACT | $36.08 | $35.44 | 1 | |||
| 25 | 862903 | NUT, (.375-24) | 134371 | SS/ACT |
|
$3.50 | $3.42 | 2 | |
| 26 | 818557 | CLAMP | ACT | $7.70 | $7.51 | 1 | |||
| - | 805130A6 | SENDER KIT, Dual Station | ACT | $112.68 | $106.13 | 1 |
