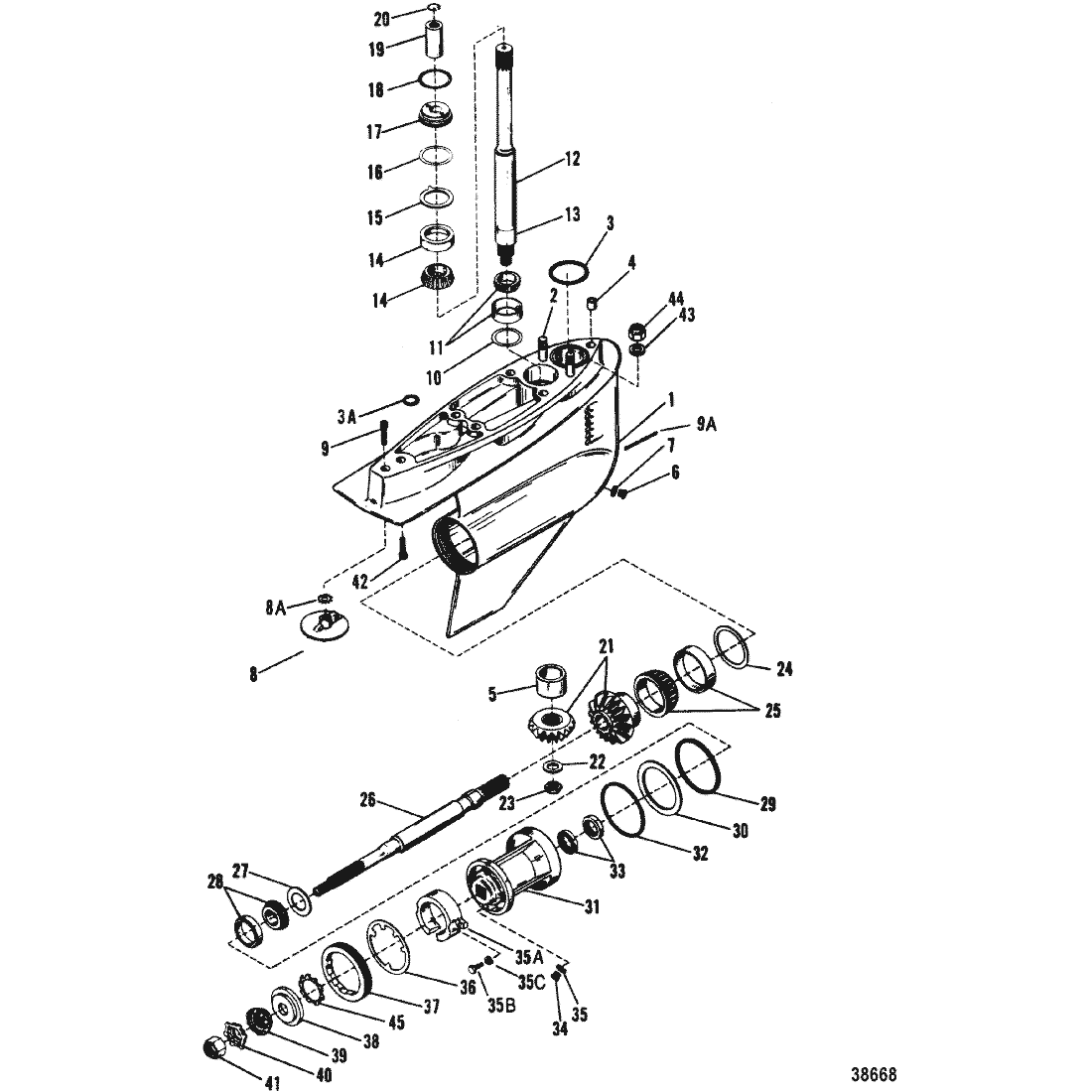

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| -- | 8866A10 | GEAR HOUSING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| -- | 8866A63 | GEAR HOUSING ASSEMBLY | 8866A15 | SS/ACT |
|
$6,550.00 | $6,091.49 | 1 | |
| 1 | 8866A11 | --GEAR HOUSING ASSEMBLY (CASTING #1656-8865C, C1 OR C2S) | ACT | $3,226.07 | $2,957.41 | 1 | |||
| 1 | 8866A64 | --GEAR HOUSING ASSEMBLY (CASTING #1656-8865C2) | 8866A17 | SS/ACT |
|
$3,497.07 | $3,205.84 | 1 | |
| 2 | 8M0133358 | ----STUD, (.437-14/.437-20 x 2.060) | 579201 | SS/ACT |
|
$19.90 | $19.41 | 2 | |
| 3 | 822370 | ----O-RING, (2.362 x .103) | ACT |
|
$4.00 | $3.91 | 1 | ||
| 3A | 8M0204680 | ----SEAL | 45577 | SS/ACT |
|
$4.10 | $4.00 | 1 | |
| 4 | 36556 | ----SEAL, (.500 Inch Outside Diameter) | ACT |
|
$4.40 | $4.30 | 1 | ||
| 4 | 805344 | ----SEAL, (.625 Outside Diameter) | ACT |
|
$4.00 | $3.91 | 1 | ||
| 5 | 86754T | ----BEARING, Roller | 86754 | SS/ACT |
|
$78.50 | $75.51 | 1 | |
| 6 | 8M0058389 | ----SCREW, Magnetic | 67892 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 7 | 191833 | ----WASHER, Fiber | 19183 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 8 | 76214Q5 | ----TRIM TAB ASSEMBLY | 76214A2 | SS/ACT |
|
$28.75 | $28.23 | 1 | |
| 8A | 806210 | ----LOCKWASHER, (.437), External Tooth | ACT | $1.70 | $1.66 | 1 | |||
| 9 | 8M0204686 | ----SCREW, (.437-14 x 1.750) | 806327 | SS/ACT |
|
$6.70 | $6.54 | 1 | |
| 9A | 8501811 | ----TUBE | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 92914A1 | --SHIM KIT | ACT |
|
$46.33 | $45.50 | AR | ||
| 11 | 8M0103470 | --BEARING ASSEMBLY, Tapered Roller | 66668A1 | SS/ACT |
|
$44.25 | $43.45 | 1 | |
| 12 | 858517A3 | --DRIVESHAFT ASSEMBLY | 41629A2 | SS/ACT |
|
$762.07 | $716.96 | 1 | |
| 13 | 815901 | ----RACE, Bearing | ACT | $61.08 | $58.76 | 1 | |||
| 14 | 8M0103473 | --BEARING ASSEMBLY, Tapered Roller | 86748A1 | SS/ACT |
|
$51.50 | $49.54 | 1 | |
| 15 | 86739 | --TAB WASHER | ACT | $17.50 | $17.07 | 1 | |||
| 16 | 86749A1 | --SHIM KIT | ACT |
|
$44.17 | $43.37 | AR | ||
| 17 | 8M0046302 | --SPACER | ACT | $14.70 | $14.34 | 1 | |||
| 18 | 20826 | --O-RING, (2.230 x .139) | ACT |
|
$5.10 | $4.98 | 1 | ||
| 19 | 88243A3 | --COUPLING ASSEMBLY | ACT |
|
$112.00 | $105.48 | 1 | ||
| 20 | 88242 | ----RING, Retaining | ACT | $1.10 | $1.08 | 1 | |||
| 21 | 14063A1 | --GEAR SET, (15/19) | ACT | $768.29 | $722.81 | 1 | |||
| 22 | 86746 | --WASHER | ACT | $19.50 | $19.02 | 1 | |||
| 23 | 20739 | --NUT, (.750-16) | ACT | $5.70 | $5.56 | 1 | |||
| 24 | 87157A1 | --SHIM KIT | ACT |
|
$62.17 | $59.80 | AR | ||
| 25 | 8M0103471 | --BEARING ASSEMBLY, Tapered Roller | 86752A1 | SS/ACT |
|
$68.17 | $65.57 | 1 | |
| 26 | 41630T | --PROPELLER SHAFT | ACT | $941.36 | $885.63 | 1 | |||
| 27 | 90886 | --WASHER | ACT | $65.67 | $63.16 | 1 | |||
| 28 | 8M0103470 | --BEARING ASSEMBLY, Tapered Roller | 66668A1 | SS/ACT |
|
$44.25 | $43.45 | 1 | |
| 29 | 67440T | --LOAD RING | ACT | $40.17 | $39.44 | 1 | |||
| 30 | 42256 | --THRUST WASHER, (.105 Inch Thick), Use With Load Ring | ACT | $32.33 | $31.75 | 1 | |||
| 30 | 812700 | --THRUST RING, (.200 Inch Thick), Use With Shims | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 42257A1 | SHIM KIT | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 41641A8 | --CARRIER ASSEMBLY, Bearing | SS |
|
$0.00 | $0.00 | 1 | ||
| 32 | 8M0214920 | ----O-RING | 31534 | SS/ACT |
|
$6.10 | $5.95 | 1 | |
| 33 | 8M0204670 | ----SEAL | 76868 | SS/ACT |
|
$18.50 | $18.04 | 2 | |
| 34 | 8M0058389 | ----SCREW | 14834A1 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 35 | 191833 | ----WASHER, Fiber | 19183 | SS/ACT |
|
$1.40 | $1.37 | OPT | |
| 35 | 8M0204684 | O-RING, Rubber | 805726 | SS/ACT |
|
$2.40 | $2.35 | OPT | |
| 35A | 806188Q01 | ----ANODE ASSEMBLY | 806188A1 | SS/ACT |
|
$35.17 | $34.54 | 1 | |
| 35B | 806290 | ------SCREW, (#10-32 x .625) | ACT | $1.20 | $1.18 | 2 | |||
| 35C | 69432 | ------LOCKWASHER, External (#10) | ACT | $1.00 | $0.98 | 2 | |||
| 36 | 18323 | --TAB WASHER | ACT | $23.92 | $23.49 | 1 | |||
| 37 | 8M2011027 | --RETAINER | SS |
|
$0.00 | $0.00 | 1 | ||
| 38 | 835467Q01 | THRUST HUB | ACT | $39.62 | $38.90 | 1 | |||
| 39 | 31211Q03 | WASHER, Splined | 31211A2 | SS/ACT |
|
$14.11 | $13.87 | 1 | |
| 40 | 816629Q | TAB WASHER | 816629 | SS/ACT |
|
$5.62 | $5.52 | 1 | |
| 41 | 52707Q1 | PROP NUT KIT, (.750-16) | 52707A1 | SS/ACT |
|
$15.63 | $15.36 | 1 | |
| 42 | 90084 | SCREW, (.437-14 x 1.500) | ACT | $4.40 | $4.30 | 1 | |||
| 43 | 861854 | WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 2 | |
| 44 | 8M0143423 | NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 2 | |
| 45 | 423511 | LOCKWASHER, Toothed | ACT | $2.83 | $2.77 | 1 | |||
| 47 | 76868A04 | SEAL KIT | 76868A2 | SS/ACT |
|
$145.75 | $137.26 |
