Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

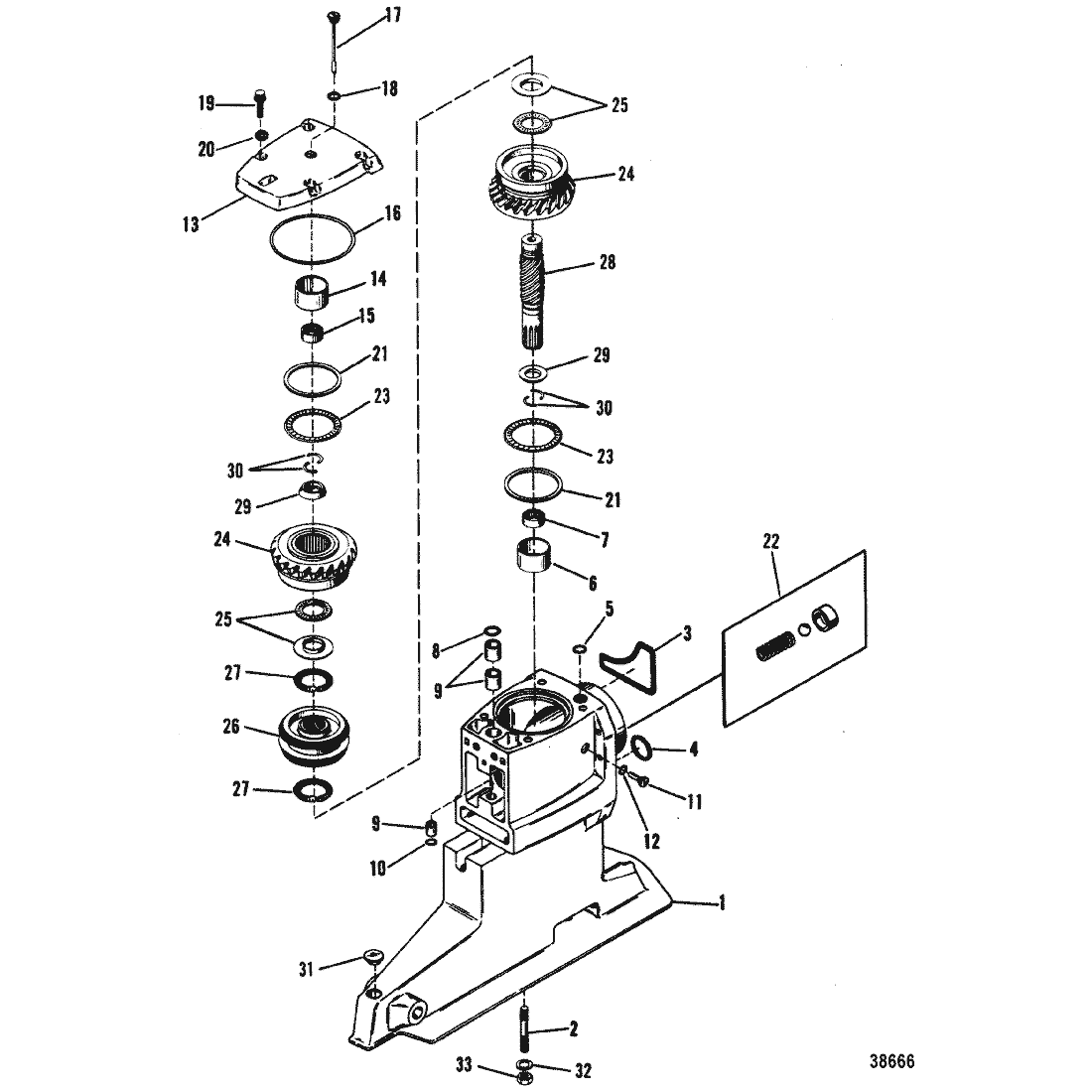

1 8868A15 HOUSING ASSEMBLY, Driveshaft ACT $1,071.43 $982.21 1
1 8868G21 HOUSING ASSEMBLY, Driveshaft 8868A55 SS $2,712.86 $2,486.94 1
2 8M0133358 --STUD, (.437-14/.437-20 x 2.060) 579201 SS $17.29 $16.94 4
3 16755Q1 --SEAL 16755 SS $12.39 $12.10 1
4 8M0204681 --O-RING, (1.424 x .103) 45710 SS $3.79 $3.69 1
5 62706 --O-RING, (.426 x .070) ACT $2.39 $2.33 1
6 815900 --BEARING ACT $65.49 $62.84 1
7 87156 --BEARING ASSEMBLY, Roller ACT $19.49 $19.07 1
8 8M0204667 --O-RING 62705 SS $1.70 $1.66 1
9 861209A1 --BUSHING KIT 12707A1 SS $40.49 $39.77 1
10 127091 ----SEAL, Oil 12709 SS $8.79 $8.59 1
11 8M0058389 --SCREW 14834A1 SS $11.69 $11.41 1
12 8M0187157 --WASHER, Fiber 19183 SS $1.49 $1.46 1
13 92068A2 --TOP COVER, O-Ring on DSH NLA $0.00 $0.00 1
13 92068A6 --TOP COVER, O-Ring on Top Cover ACT $272.99 $256.78 1
14 815900 ----BEARING ACT $65.49 $62.84 1
15 87156 ----BEARING ASSEMBLY, Roller ACT $19.49 $19.07 1
16 97387 ----O-RING ACT $11.39 $11.12 1
17 86774A1 ----DIPSTICK ASSEMBLY NLA $0.00 $0.00 1
18 8M0187157 ------WASHER, Fiber 19183 SS $1.49 $1.46 1
19 8M0113174 --SCREW, (.375-16 x 1.25) 58640 SS $7.29 $7.12 4
21 87560091 --BEARING, Thrust (.091), Red ACT $34.49 $33.83 AR
21 87560094 --BEARING, Thrust (.094), Light Blue ACT $32.99 $32.41 AR
21 87560097 --BEARING, Thrust (.097), Green NLA $0.00 $0.00 AR
22 17997A1 --SPRING KIT ACT $10.39 $10.15 1
23 86771 BEARING, Thrust ACT $30.99 $30.36 2
24 883473A4 GEAR KIT, 32 TEETH:(1.5:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III) 807436A1 SS $3,156.49 $2,893.63 1
24 883476A4 GEAR KIT, 29 TEETH: (1.81:1 - 1.36:1 Ratio) 807438A1 SS $3,075.49 $2,819.25 1
24 883479A4 GEAR KIT, 30 TEETH: (2.20:1 Ratio) (1.65:1 Ratio/BRAVO III) 807437A1 SS $3,075.49 $2,819.25 1
24 883473A3 GEAR, 32 Teeth:(1.50-2.00:1 Ratio) (1.65:1 Ratio Bravo III) 826643A1 SS $2,636.49 $2,416.94 2
24 883476A3 GEAR, 29 Teeth:(1.81:1-1.36.1 Ratio) 815662A3 SS $2,636.49 $2,416.94 2
24 883479A3 GEAR, 30 Teeth:(2.20:1 Ratio) (1.65:1 Ratio Bravo I) 818665A1 SS $2,636.49 $2,416.94 2
25 86768A2 BEARING ASSEMBLY, Thrust ACT $95.99 $92.10 1
26 NSS NOT SOLD SEPARATE, CLUTCH AND CAM KIT $0.00 $0.00 1
26 807375A1 CLUTCH AND CAM KIT, Refer To Service Bulletin 2001-17 For Replacement Parts NLA $0.00 $0.00 1
27 NSS --NOT SOLD SEPARATE, SPRING $0.00 $0.00 2
28 812773T DRIVESHAFT, Upper 96061T SS $428.49 $409.45 1
28 812773T DRIVESHAFT, Upper ACT $428.49 $409.45 1
29 86770 COLLAR ACT $72.99 $70.14 2
29 86770 COLLAR ACT $72.99 $70.14 1
30 8M0204675 KEEPER 97351 SS $11.29 $11.02 2
30 8M0204675 KEEPER 97351 SS $11.29 $11.02 4
31 824928001 PLUG 32297 SS $5.49 $5.37 1
32 861854 WASHER 91964 SS $4.19 $4.10 4
33 8M0143423 NUT, (.437-20) 35053 SS $9.49 $9.27 4
