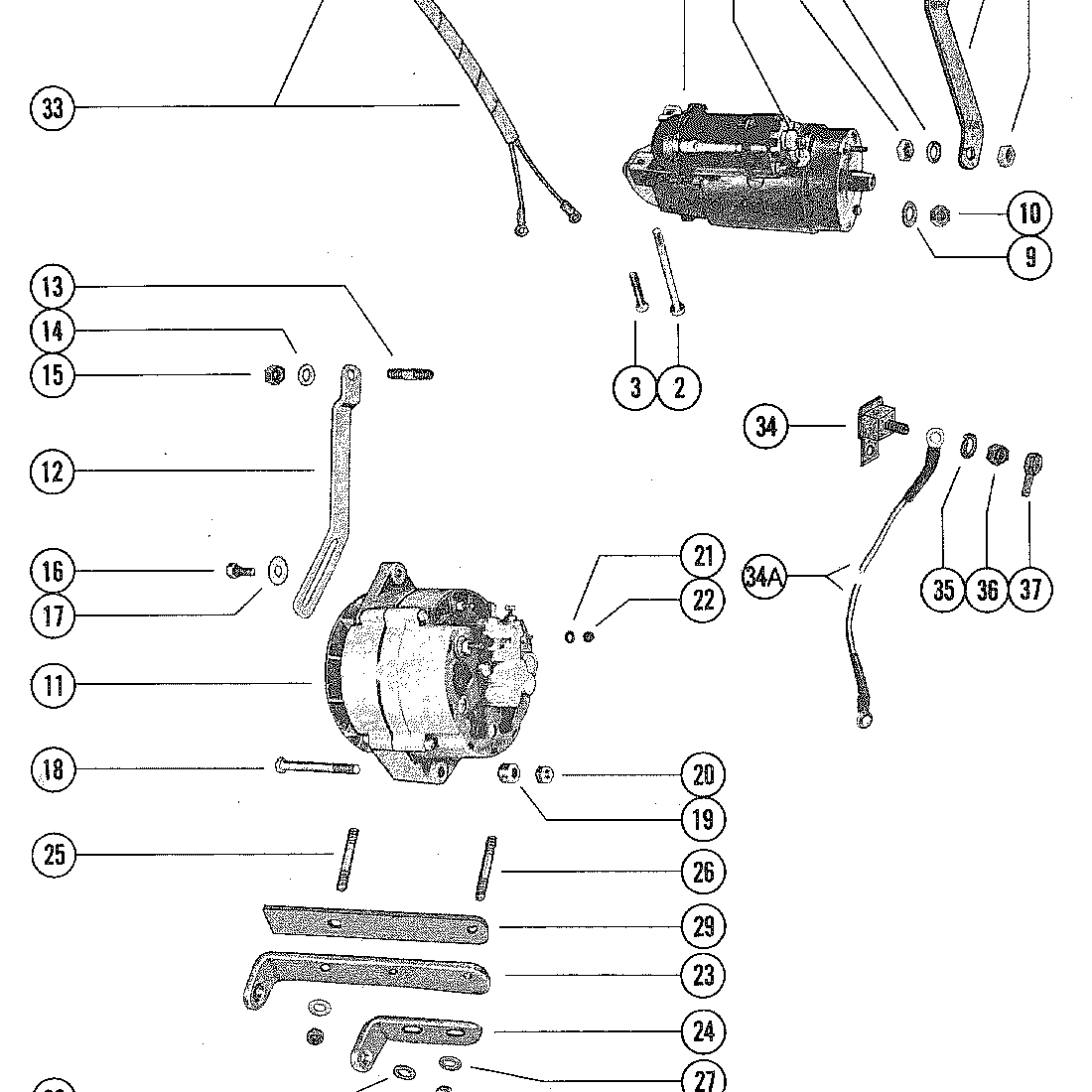

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY(DELCO REMY #1109489) | 79822A2 | SS |
|
$366.99 | $345.22 | 1 | |
| 2 | 94435001 | BOLT, STARTER MOUNTING (421/32") | 34545 | SS |
|
$0.00 | $0.00 | 1 | |
| 3 | 8053433 | BOLT, STARTER MOTOR MOUNTING (1 15/16') | 34544 | SS |
|
$16.19 | $15.80 | 1 | |
| 4 | 88292 | BRACE, STARTER MOTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 88294 | STUD, STARTER MOTOR BRACE TO PUSHROD COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0204649 | WASHER, STARTER MOTOR THRU BOLT NUT | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 7 | 29031 | NUT, STARRTER MOTOR THRU BOLT (1/4X20) | NLA |
|
$3.54 | $3.46 | 1 | ||
| 7 | NSS | NUT, STARTER MOTOR BRACE ATTACHING |
|
$0.00 | $0.00 | 1 | |||
| 8 | 32219 | NUT, SOLENOID SWITCH TERMINAL (3/-16) | ACT | $2.79 | $2.72 | 1 | |||
| 9 | 26995 | LOCKWASHER, STARTER MOTOR TERMINAL (#8) | ACT | $1.10 | $1.08 | 2 | |||
| 10 | 26419 | NUT, STARTER MOTOR TERMINAL (#8-32) | ACT | $1.70 | $1.66 | 2 | |||
| 9 | 26996 | LOCKWASHER, STARTER MOTOR TERMINAL (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 10 | 68219 | NUT, STARTER MOTOR TERMINAL (#10-32) | ACT | $2.99 | $2.92 | 2 | |||
| 10 | 32219 | NUT, STARTER MOROT TERMINAL (3/8-16) | ACT | $2.79 | $2.72 | 1 | |||
| 11 | 78403A2 | ALTERNATOR (MORTOROLA #8MR203F) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 56224 | BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 54177 | STUD, ALTERNATOR BRAVE TO EXHAUST MANIFOLD (1 3/8') | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 20553 | WASHER, ALTERNATOR BRACE STUD | ACT | $1.50 | $1.47 | 1 | |||
| 15 | 23161 | NUT, ALTERNATOR BRACE STUD | ACT | $2.89 | $2.82 | 1 | |||
| 16 | 29198 | SCREW, ALTERNATOR (7/8") | ACT | $4.59 | $4.49 | 1 | |||
| 17 | 26168 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 18 | 48308 | SCREW, ALTERNATOR TO BRACKET (3 3/4") | 56057 | SS |
|
$4.49 | $4.39 | 1 | |
| 19 | 45353 | SPACER , ALTERNATOR SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 23161 | NUT, ALTERNATOR SCREW | ACT | $2.89 | $2.82 | 1 | |||
| 21 | 26991 | LOCKWASHER, ALTERNATOR TERMINAL (12#) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 68531 | NUT, ALTERNATOR TERMINAL (#12-24) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 52817 | BRACKET, ALTERNATOR MOUNTING (SMALL) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 52818 | BRACKET, ALTERANTOR MOUNTING (LARGE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 54177 | STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 54176 | STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8') | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 20553 | WASHER, MOUNTING BRACCKET STUD | ACT | $1.50 | $1.47 | 2 | |||
| 28 | 23161 | NUT, MOUNTING BRACKET STUD | ACT | $2.89 | $2.82 | 2 | |||
| 29 | 53502 | GASKET, ALTERNATOR MOUNTING BRACKET (LARGE BRACKET) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 33524 | SCREW, ALTERNATOR MOUNTING BRACKET TO CYL. BLOCK(5/8') | ACT | $0.20 | $0.20 | 1 | |||
| 31 | 8M0204647 | LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW | 26993 | SS |
|
$1.80 | $1.76 | 1 | |
| 32 | 26825 | WASHER, ALTERNATOR MOUNTING BRACKET SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 33 | 78581A1 | ALTERNATOR HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 79023T90 | FUSE ASSEMBLY, 90 AMP | 79023A90 | SS |
|
$39.49 | $38.60 | 1 | |
| 34A | 79139A6 | JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 24669 | LOCKWASHER , FUSE STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | 21825 | NUT, FUSE STUD | ACT |
|
$1.70 | $1.66 | 1 | ||
| 37 | 79695T | BOOT, INSULATOR-FUSE STUD | 79695 | SS |
|
$5.49 | $5.37 | 1 |
