| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

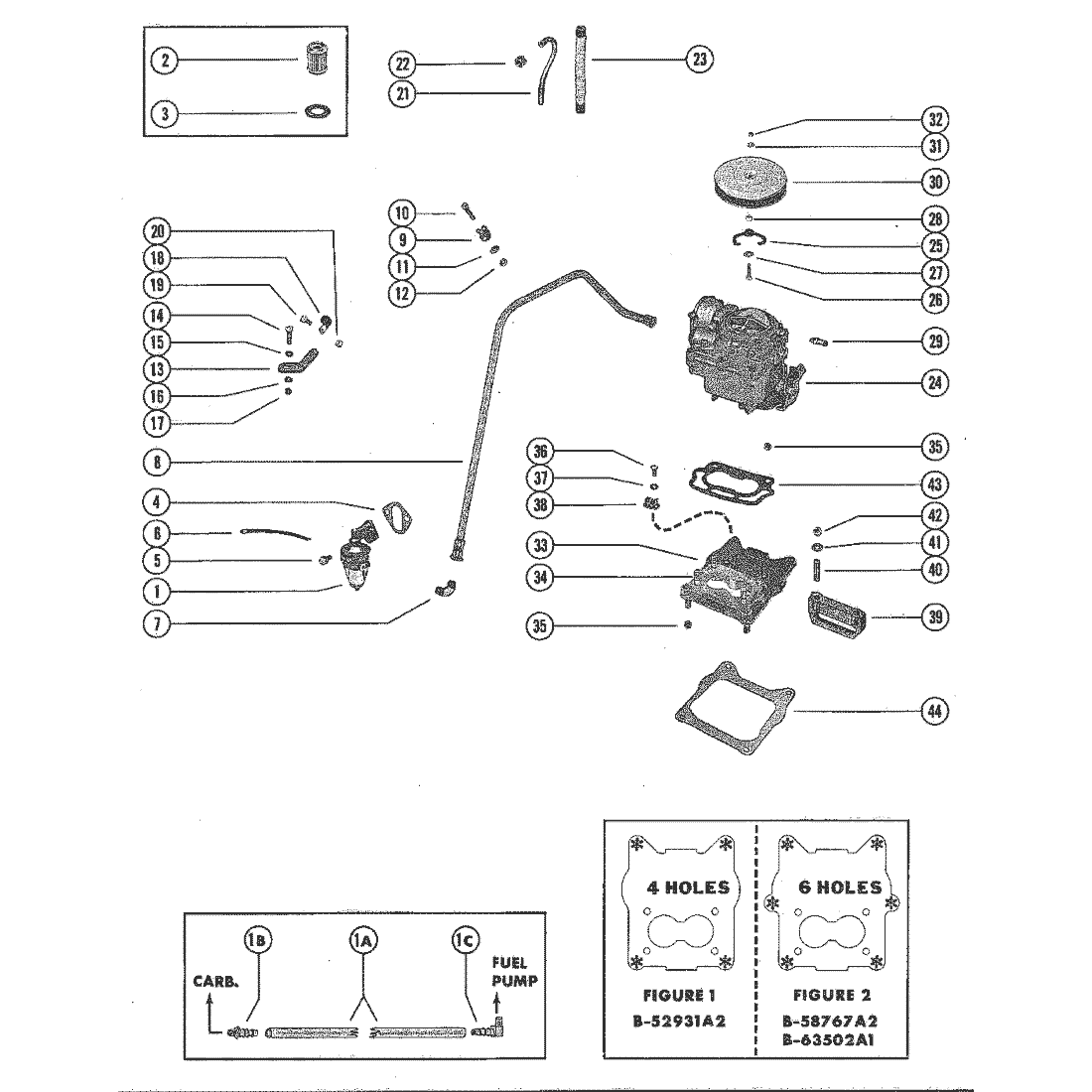

| 1 | 86234A05 | FUEL PUMP ASSEMBLY | 47585 | SS |
|
$590.30 | $555.36 | 1 | |
| 1 | 86234A05 | FUEL PUMP ASSEMBLY( | 71327 | SS |
|
$590.30 | $555.36 | 1 | |
| 1A | NSS | TUBE, VENT |
|
$0.00 | $0.00 | 1 | |||
| 1B | 73816 | CONNECTOR, VENT TUBE TO CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1C | 73817 | CONNECTOR, VENT TUBE TO FUEL PUMP | ACT |
|
$21.79 | $21.36 | 1 | ||
| 1 | NSS | FUEL PUMP ASSEMBLY |
|
$0.00 | $0.00 | 1 | |||
| 2 | 49088Q2 | FILTER, FUEL - FUEL PUMP | 49088 | SS |
|
$17.19 | $16.86 | 1 | |
| 3 | 49089A1 | DIAPHRAGM KIT, FUEL PUMP | 49089 | SS |
|
$0.00 | $0.00 | 1 | |
| 4 | 34213 | GASKET, FUEL PUMP | ACT | $7.09 | $6.93 | 1 | |||
| 5 | 45488 | SCREW, FUEL PUMP TO CYLINDER BLOCK (3/4") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 6 | 17008 | FUEL LINE, FUEL TANK TO FUEL PUMP (13") | 30466 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 49217 | FITTING, FUEL LINE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 17007 | FUEL LINE, FUEL PUMP TO CARBURETOR (33 1/2") | 53824 | SS |
|
$137.56 | $127.27 | 1 | |
| 7 | 64294 | FITTING, FUEL LINE | ACT |
|
$15.59 | $15.22 | 2 | ||
| 8 | 64297A1 | FUEL LINE, FUEL PUMP TO CARBURATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 98646 | FITTING, FUEL LINE | 70584 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 65652T | FUEL LINE, FUEL PUMP TO CARBURETOR | 65652 | SS |
|
$0.00 | $0.00 | 1 | |
| 9 | 28938 | CLAMP, FUEL LINE TO CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 29199 | SCREW, FUEL LINE CLAMP FASTENING (1") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 24662 | WASHER, FUEL LINE CLAMP SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 20890 | NUT, FUEL LINE CLAMP SCREW | ACT |
|
$0.30 | $0.30 | 1 | ||
| 9 | 61001 | CLAMP, FUEL LINE TO LIFTING EYE SERAIL#THRU# | ACT |
|
$8.39 | $8.20 | 1 | ||
| 10 | 33524 | SCREW, FUEL LINE CLAMP FASTENING (1") | ACT |
|
$0.20 | $0.20 | 1 | ||
| 12 | 29250 | NUT, FUEL LINE CLAMP SCREW | 46793 | SS |
|
$2.89 | $2.82 | ||
| 9 | 65653 | CLAMP, FUEL LINE TO ROCKER COVER | ACT |
|
$4.99 | $4.88 | 1 | ||
| 10 | 32079 | SCREW, FUEL LINE CLAMP TO RCOKER COVER (1/2") | NLA |
|
$0.73 | $0.72 | 1 | ||
| 13 | 65406 | BRACKET, FUEL LINE - UPPER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 67450 | SCREW, FUEL LINE BARCKET TO THERMOSTAT COVER (2 1/4") | 52447 | SS |
|
$0.00 | $0.00 | 1 | |
| 15 | 8M0204647 | LOCKWASHER, FUEL LINE BRACKET TO THERMOSTAT COVER SCREW | 26993 | SS |
|
$1.80 | $1.76 | 1 | |
| 16 | 52095 | SPACER, FUEL LINE BRACKET TO THERMOSTAT COVER SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 65411 | BRACKET, FUEL LINE - LOWER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 29199 | SCREW, FUEL LINE BRACKET TO TIMING COVER (1") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 8M0204649 | WASHER, FUEL LINE BRACKET TO TIMING COVER SCREW | 32733 | SS |
|
$1.20 | $1.18 | 1 | |
| 17 | 8267098 | NUT, FUEL LINE BRACKET TO TIMING COVER SCREW | 56374 | SS |
|
$6.89 | $6.73 | 1 | |
| 18 | 64646 | CLAMP, FUEL LINE TO BRACKET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 33524 | SCREW, CLAMP TO FUEL LINE BRACKET (5/8") | ACT |
|
$0.20 | $0.20 | 2 | ||
| 20 | 29250 | NUT, CLAMP TO FUEL LINE BRACKET SCREW | 46793 | SS |
|
$2.89 | $2.82 | 2 | |
| 21 | 55545A1 | PIPE ASSEMBLY, HOKE - CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 70583 | --NUT, COMPRESSION - CHOKE PIPE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 57831 | COVERING, CHOKE PIPE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 818620R02 | CARBURETOR ASSEMBLY | 4282A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 24 | 818620R02 | CARBVURETOR ASSEMBLY | 4871A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 24 | 818620R02 | CARBURETOR ASSEMBLY | 5204A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 25 | 52734 | --BAIL, FLAME ARRESTOR TO CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 22476 | SCREW, FLAME ARRESTOR TO CARBURETOR (7/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 20533 | WASHER, FLAME ARRESTOR SCREW | ACT |
|
$1.50 | $1.47 | 1 | ||
| 28 | 8267139 | NUT, FLAME ARRESTOR SCREW | 28941 | SS |
|
$2.59 | $2.53 | 1 | |
| 29 | 45383 | NIPPLE, VENT HOSE TO CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| .29 | 328022 | NIPPLE, VENT HOSE TO CARBURETOR | 32802 | SS |
|
$7.59 | $7.42 | 1 | |
| 30 | 85786A1 | FLAME ARRESTOR | 53001 | SS |
|
$0.00 | $0.00 | 1 | |
| 30 | 85786A1 | FLAME ARRESTOR | 62264 | SS |
|
$0.00 | $0.00 | 1 | |
| 31 | 22937 | WASHER, FLAME ARRESTOR MOUNTING SCREW | ACT | $3.79 | $3.69 | 1 | |||
| 32 | 826709109 | NUT, FLAME ARRESTOR MOUNTING SCREW (TOP) | 20586 | SS |
|
$3.59 | $3.50 | 1 | |
| 33 | 52931A2 | ADAPTOR ASSEMBLY, CARBURETOR(4 MOUNTING HOLES - SEE FIGURE#1 | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 63502A2 | ADAPTOR ASSEMBLY, CARBURETOR(6 MOUNTING HOLES - SEE FIGURE#2 | 58767A2 | SS |
|
$0.00 | $0.00 | 1 | |
| 33 | 63502A2 | ADAPTOR ASSEMBLY, CARBURETOR(6 MOUNTING HOLES - SEE FIGURE#2 | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 8M0034449 | --STUD, ADAPTOR TO CARBURETOR AND EXHAUST MANIFOLD | 20985 | SS |
|
$12.79 | $12.49 | 6 | |
| 35 | 29250 | NUT, CARBURETOR MOUNTING STUD | ACT | $2.89 | $2.82 | 6 | |||
| 36 | 53576 | SCREW, ADAPOTOR TO EXHAUST MANIFOLD (1 1/8") | 30075 | SS |
|
$1.60 | $1.57 | 2 | |
| 36 | 35386 | SCREW, ADAPOTOR TO EXHAUST MANIFOLD (1") - 6 MOUNTING HOLES | 24234 | SS |
|
$1.10 | $1.08 | 2 | |
| 37 | 39107 | LOCKWASHER, ADAPOTOR SCREW | ACT | $1.50 | $1.47 | 4 | |||
| 38 | 52923 | CLAMP, ADAPOTOR SCREW (INLET HOSE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 55885 | BAFFLE, CARBURETOR ADAPOTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 52387 | STUD, BAFFLE TO CARBURETOR ADAPOTOR (1 1/16") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 41 | 26825 | WASHER, BAFFLE STUD | ACT | $1.50 | $1.47 | 2 | |||
| 42 | 29250 | NUT, BAFLE STUD | 46793 | SS |
|
$2.89 | $2.82 | 2 | |
| 43 | 64692 | GASKET, CARBURETOR | ACT | $3.99 | $3.91 | 1 | |||
| 44 | 58764 | GASKET, ADAPOTOR TO EXHAUST MANIFOLD (4 MOUNTING HOLES) | 52945 | NLA |
|
$0.00 | $0.00 | 1 | |
| 44 | 58764 | GASKET, ADAPOTOR TO EXHAUST MANIFOLD (6 MOUNTING HOLES) | NLA |
|
$0.00 | $0.00 | 1 |
