Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

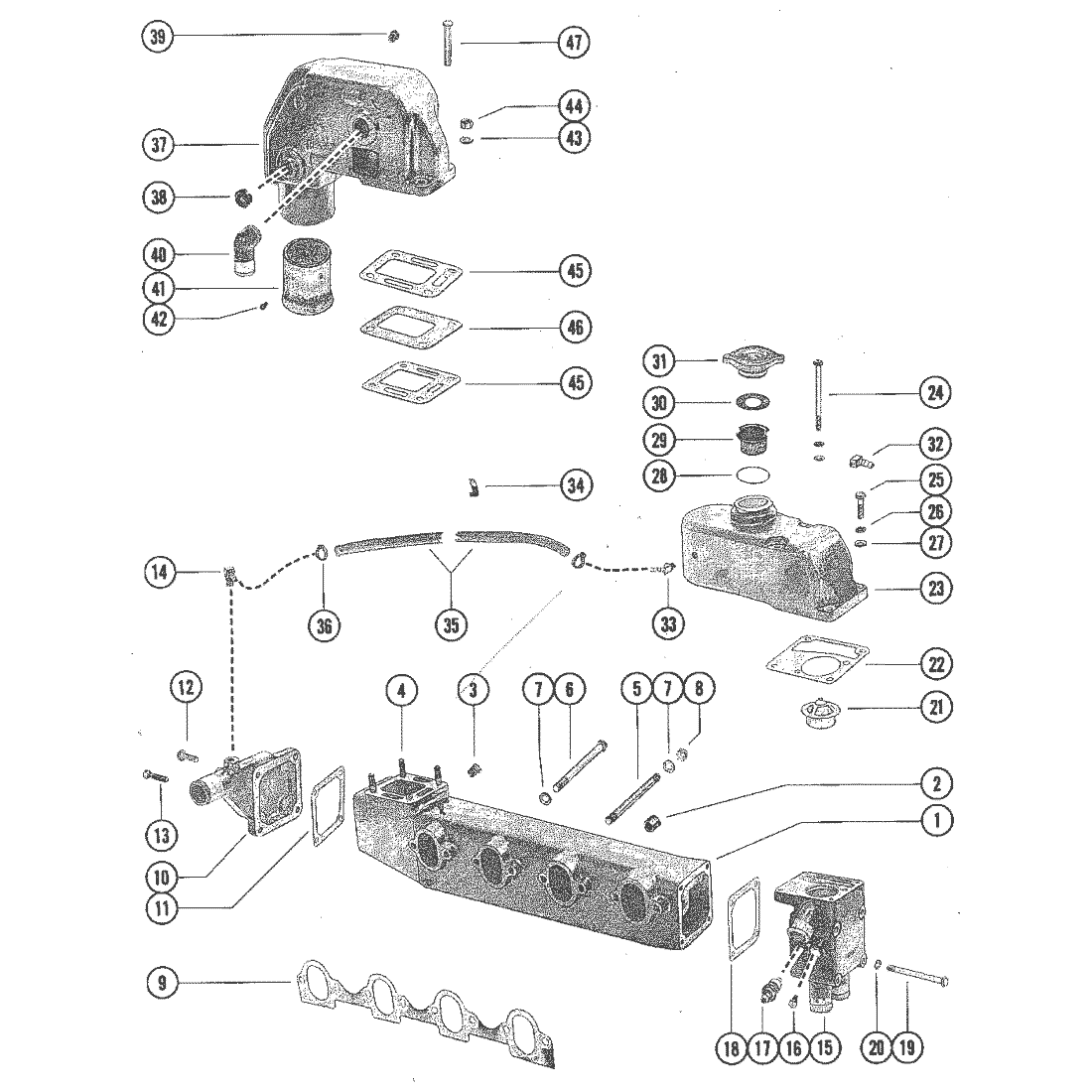

1 71527A17 EXHAUST MANIFOLD ASSEMBLY 71527A8 SS $0.00 $0.00 1
2 416223 --PLUG, CORE (3/4-14) 33198 SS $3.49 $3.40 3
3 36382 --PLUG, DRAIN (1/4-18NPTE ACT $5.49 $5.37 1
4 8M0204664 --STUD, EXHAUST MANIFOLD TO ELBOW (1 3/4") 49545 SS $2.99 $2.92 4
5 71494 STUD, EXHAUST MANIFOLD TO HEAD (6") NLA $0.00 $0.00 1
5 77958 STUD, EXHAUST MANIFOLD TO HEAD (6 1/2") NLA $0.00 $0.00 1
6 36355 SCREW, EXHAUST MANIFOLD TO HEAD (5 1/4") NLA $0.00 $0.00 6
7 35048 LOCKWASHER, EXHAUST MANIFOLD ATTACHING ACT $1.20 $1.18 8
8 32219 NUT, EXHAUST MANIFOLD ATTACHING STUD ACT $2.79 $2.72 2
9 68715 GASKET, EXHAUST MANIFOLD TO HEAD ACT $18.29 $17.92 1
10 71943 END CAP, REAR NLA $0.00 $0.00 1
11 480431 GASKET, END CAP 48043 SS $5.49 $5.37 1
12 35386 SCREW, END CAP TO EXHAUST MANIFOLD (1") 24234 SS $1.10 $1.08 3
13 73657 SCREW, END CAP TO EXHAUST MANIFOLD (1 1/2") 20362 SS $3.39 $3.30 1
14 73817 FITTING, END CAP-BY-PASS HOSE 75188 SS $21.79 $21.36 1
15 41801T THERMOSTATE HOUSING 74009 SS $0.00 $0.00 1
16 8M0180565 PLUG, THERMOSTAT HOUSING 32803 SS $7.99 $7.81 1
17 15995 SENDER, WATER TEMPERATURE 75669 SS $90.99 $85.46 1
18 480431 GASKET, THERMOSTAT HOUSING TO EXHAUST MANIFOLD 48043 SS $5.49 $5.37 1
19 74822 SCREW, THERMOSTAT HOUSING TO EXHAUST MANIFOLD (3 1/2") ACT $1.70 $1.66 4
20 36533 WASHER, COPPER - THERMOSTAT HOUSING ATTACHING SCREW ACT $1.50 $1.47 4
21 76270T THERMOSTAT 76270 SS $36.49 $35.68 1
22 74830 GASKET, THERMOSTAT HOUSING TO RESORVOIR ACT $7.59 $7.42 1
23 74144A2 RESERVOIR 74144 SS $0.00 $0.00 1
24 74826 SCREW, RESERVOIR TO THERMOSTAT HOUSING (4") NLA $2.66 $2.61 2
25 74824 SCREW, RESERVOIR TO THERMOSTAT HOUSING (1 1/4") 53016 SS $1.80 $1.76 2
26 39107 LOCKWASHER, RESERVOIR ATTACHING SCREW ACT $1.50 $1.47 4
27 8M0204690 WASHER, RESERVOIR ATTACHING SCREW 53705 SS $1.80 $1.76 4
28 45257 "O" RING, FILLER BASE ACT $1.80 $1.76 1
28 45257 "O" RING, FILLER BASE ACT $1.80 $1.76 1
29 13234A1 BASE, FILLER HOLE 58471 SS $36.49 $35.85 1
30 71614 GASKET, FILLER HOLE CAP ACT $3.99 $3.91 1
31 55143Q CAP, FILLER HOLE 55143 SS $0.00 $0.00 1
32 74033 ELBWO, OVERFLOW NLA $0.00 $0.00 1
33 76170 FITTING, RESEROIR BY-PASS NLA $0.00 $0.00 1
34 8M0024808 CLAMP, HOSE TO VALVE COVER 642351 SS $8.19 $8.00 1
35 89713 HOSE, BY-PASS-RESERVOIR TO REAR END CAP 75182 SS $0.00 $0.00 1
36 75826 CLAMP, BY-PASS HOSE ATTACHING NLA $0.00 $0.00 2
37 76351A04 EXHAUST ELBOW ASSEMBLY 60426A1 SS $414.49 $383.46 1
37 76325A2 EXHAUST ELBOW ASSEMBLY NLA $0.00 $0.00 1
38 416223 --PLUG, CORE (3/4-14 NPT) 33198 SS $3.49 $3.40 4
39 328022 --PLUG, PIPE (1/8-27 NPT) 32802 SS $7.59 $7.42 1
40 36305T ELBOW, HEAT EXCHANGER HOSE 36305 SS $39.49 $38.63 1
41 58616A2 WATER SEPARATION TUBE ASSEMBLY 58616A1 SS $160.49 $144.40 1
42 47828 ----SCEW, WATER SEPARATION TUBE ATTACHING NLA $0.00 $0.00 3
43 35048 LOCKWASHER, ELBOW TO MANIFOLD ATTACHING 37459 SS $1.20 $1.18 4
44 49838 NUT, ELBOW TO MANIFOLD ATTACHING ACT $1.10 $1.08 4
45 997772 GASKET, ELBOW TO MANIFOLD 52076 SS $4.59 $4.49 2
46 55730 PLATE, ELBOW TO MANIFOLD ACT $24.19 $23.73 1
47 72094 SCREW, EXHAUST MANIFOLD TO ELBOW ACT $5.49 $5.37 2
- 74830A3 ENGINE GASKET SET 74264A1 SS $0.00 $0.00 1
