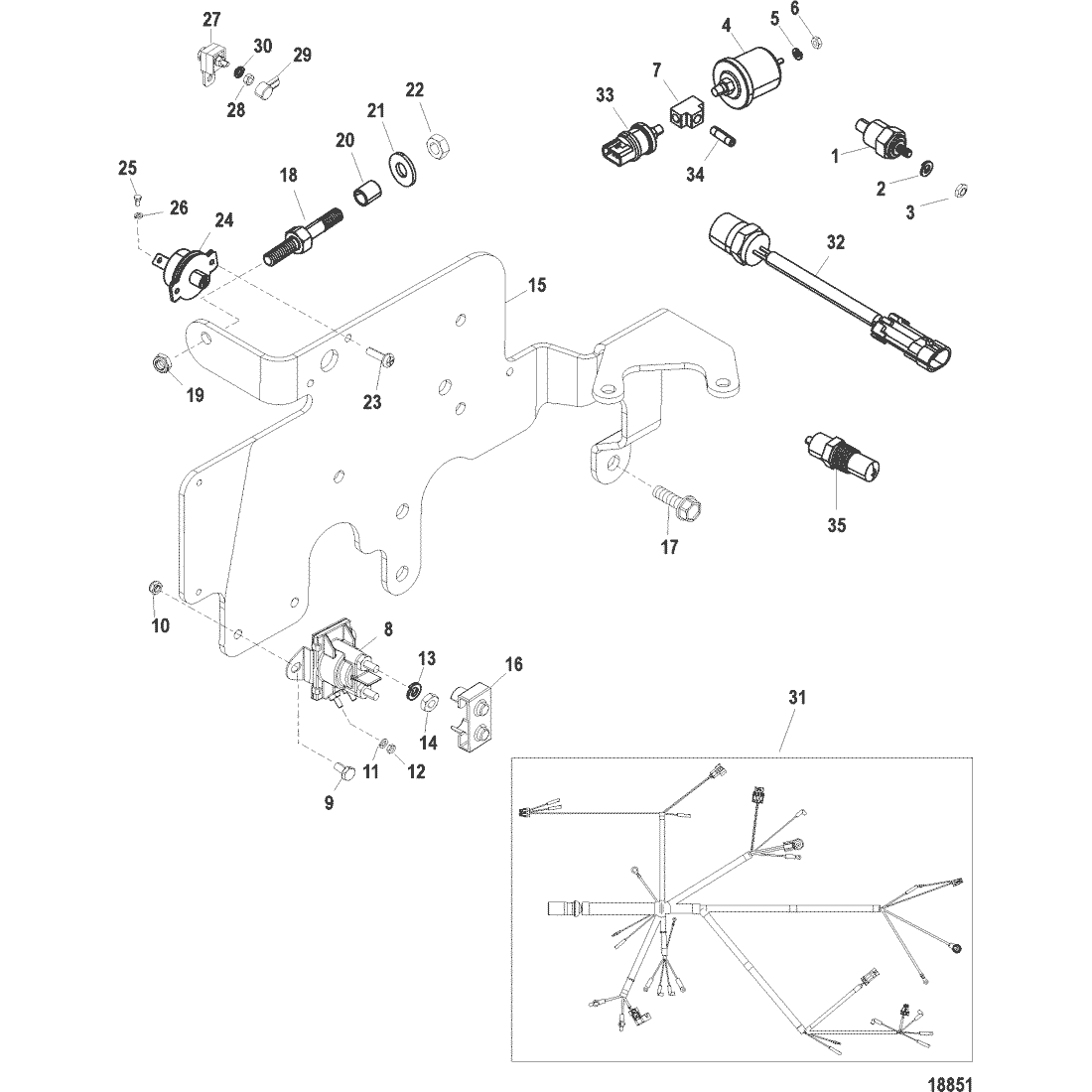

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806490T | SENDER, Water Temperature | ACT | $41.49 | $40.58 | 1 | |||
| 1 | 49734 | SENDER, Water Temperature | ACT |
|
$90.49 | $85.15 | OPT | ||
| 2 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 1 | |||
| 3 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 1 | |||
| 4 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 815425T | SS |
|
$133.49 | $120.13 | 1 | |
| 4 | 37293T | SENDER ASSEMBLY, Oil Pressure | ACT |
|
$205.99 | $185.41 | OPT | ||
| 5 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 1 | |||
| 6 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 1 | |||
| 7 | 52930 | FITTING | ACT | $14.49 | $14.14 | 1 | |||
| 8 | 8M0185622 | SOLENOID, Starter | 96158T | SS |
|
$41.99 | $41.07 | 1 | |
| 9 | 98256 | SCREW, (.250-28 x .500) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.59 | $3.50 | 2 | |||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 12 | 26419 | NUT, (#8-32) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 13 | 26992 | LOCKWASHER, (.250) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 14 | 94330 | NUT, (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 15 | 862080T | BRACKET, Electrical Mounting | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 97861 | INSULATOR | ACT | $5.19 | $5.08 | 1 | |||
| 17 | 8M0113180 | SCREW, (.375-16 x 1.00) | 98794 | SS |
|
$5.09 | $4.98 | 3 | |
| 18 | 8M0113178 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 96112 | SS |
|
$3.09 | $3.01 | 1 | |
| 19 | 8267139 | NUT, (.250-28), Lock | ACT | $2.59 | $2.53 | 1 | |||
| 20 | 31866 | SPACER, (.256 x .313 x .625) | ACT | $5.69 | $5.56 | 1 | |||
| 21 | 20533 | WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 22 | 8267089 | NUT, (.250-28) | ACT | $1.50 | $1.47 | 1 | |||
| 23 | 86025 | SCREW, (#8-32 x .620) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 24 | 11178A01 | BREAKER, Circuit - 50 Ampere | 806950 | NLA |
|
$121.49 | $109.31 | 1 | |
| 25 | 68513 | --SCREW, (#10-32 x .375) Stainless Steel | ACT | $1.40 | $1.37 | 2 | |||
| 26 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 27 | 79023T90 | FUSE ASSEMBLY, 90 Ampere | 79023A90 | SS |
|
$39.49 | $38.60 | 1 | |
| 28 | 21825 | NUT, (.250-28) | ACT | $1.70 | $1.66 | 1 | |||
| 29 | 79695T | BOOT, Insulator - Black | 79695 | SS |
|
$5.49 | $5.37 | 1 | |
| 30 | 400247 | LOCKWASHER, (M8) | ACT | $1.80 | $1.76 | 1 | |||
| 31 | 865931T01 | HARNESS ASSEMBLY, Engine | ACT | $424.99 | $393.32 | 1 | |||
| 32 | 866115 | Temperature Switch, (Normally Open 130-110 degrees), Turn Key Start | ACT | $70.99 | $66.71 | 2 | |||
| 33 | 865934 | Pressure Switch, (SPDT) | ACT | $107.99 | $97.14 | 1 | |||
| 34 | 38992 | FITTING | ACT | $44.99 | $44.04 | 1 | |||
| 35 | 48952 | SWITCH ASSEMBLY | ACT | $137.99 | $124.19 | 1 |
