| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

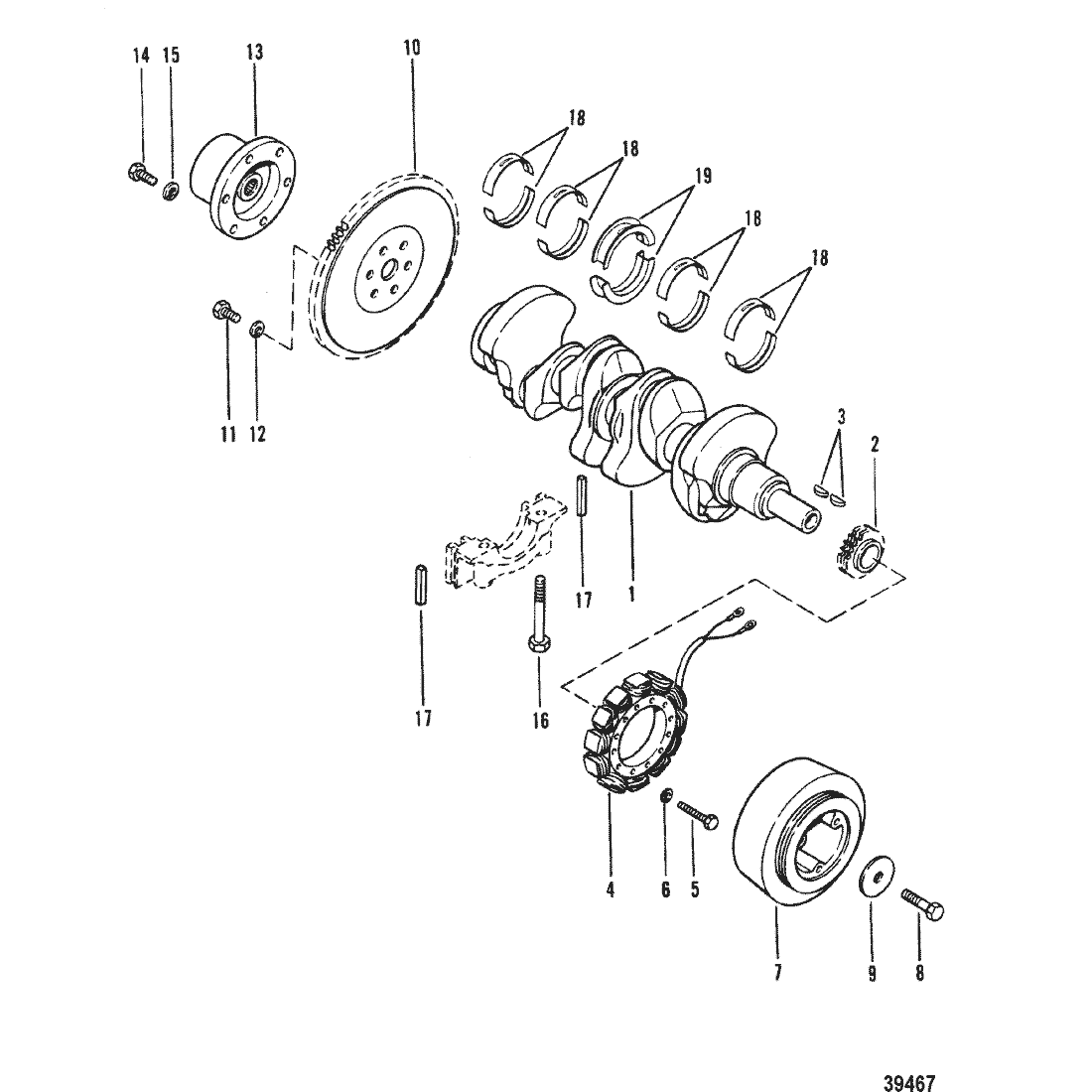

| 1 | 6092A1 | CRANKSHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 68700 | SPROCKET, CRANKSHAFT | 68700A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 3 | 67382 | KEY, SPROCKET AND ALTERNATOR | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 6231A10 | STATOR ASSEMBLY, ALTERNATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 77363 | SCREW, (#10-24 x 1.50), STATOR TO FRONT COVER | NLA |
|
$0.00 | $0.00 | 5 | ||
| 6 | 26996 | LOCKWASHER, (#10) Stainless Steel, STATOR SCREW | ACT | $1.20 | $1.18 | 5 | |||
| 7 | 93009A06 | ALTERNATOR ASSEMBLY, FLYWHEEL | 93009A5 | SS |
|
$637.49 | $599.36 | 1 | |
| 8 | 59644 | SCREW, (.500-20 x 1.380), ALTERNATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 36103 | WASHER, (Steel, 1.75 Inch Outside Diameter), ALTERNATOR SCREW | ACT | $3.99 | $3.91 | 1 | |||
| 10 | 9741A2 | FLYWHEEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 97433A1 | --RING GEAR ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 8M0214958 | SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT | 49845 | SS |
|
$5.89 | $5.76 | 6 | |
| 12 | 39131 | LOCKWASHER, (.437), FLYWHEEL SCREW | ACT | $1.00 | $0.98 | 6 | |||
| 13 | 97432A2 | COUPLING ASSEMBLY, ENGINE | ACT | $721.99 | $679.26 | 1 | |||
| 14 | 37612 | SCREW, (.375-16 x 1.250), COUPLING TO FLYWHEEL | ACT | $2.49 | $2.43 | 6 | |||
| 15 | 35048 | LOCKWASHER, (.375), COUPLING SCREW | ACT | $1.20 | $1.18 | 6 | |||
| 16 | 74335 | SCREW, (.500-13 x 4.00), MAIN BEARING SCREW | NLA |
|
$0.00 | $0.00 | 10 | ||
| 17 | 98421A1 | SEAL, REAR BEARING CAP | ACT | $29.19 | $28.64 | 1 | |||
| 18 | 853849 | BEARING ASSEMBLY, Main | 74313A1 | NLA |
|
$0.00 | $0.00 | 4 | |
| 18 | 74313A2 | BEARING ASSEMBLY, Main | NLA |
|
$0.00 | $0.00 | AR | ||
| 18 | 853851 | BEARING ASSEMBLY, Main | 74313A4 | NLA |
|
$0.00 | $0.00 | AR | |
| 18 | 74313A3 | BEARING ASSEMBLY, Main | NLA |
|
$0.00 | $0.00 | AR | ||
| 19 | 853849 | BEARING ASSEMBLY, Center Main | 15103A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 19 | 15103A2 | BEARING ASSEMBLY, Center Main | 74314A2 | SS |
|
$0.00 | $0.00 | AR | |
| 19 | 853851 | BEARING ASSEMBLY, Center Main | 15103A4 | SS |
|
$0.00 | $0.00 | AR | |
| 19 | 853852 | BEARING ASSEMBLY, Center Main | 74314A3 | SS |
|
$0.00 | $0.00 | AR | |
| - | 883278R5 | SHORT BLOCK | 72775A16 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 43186A1 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
