| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

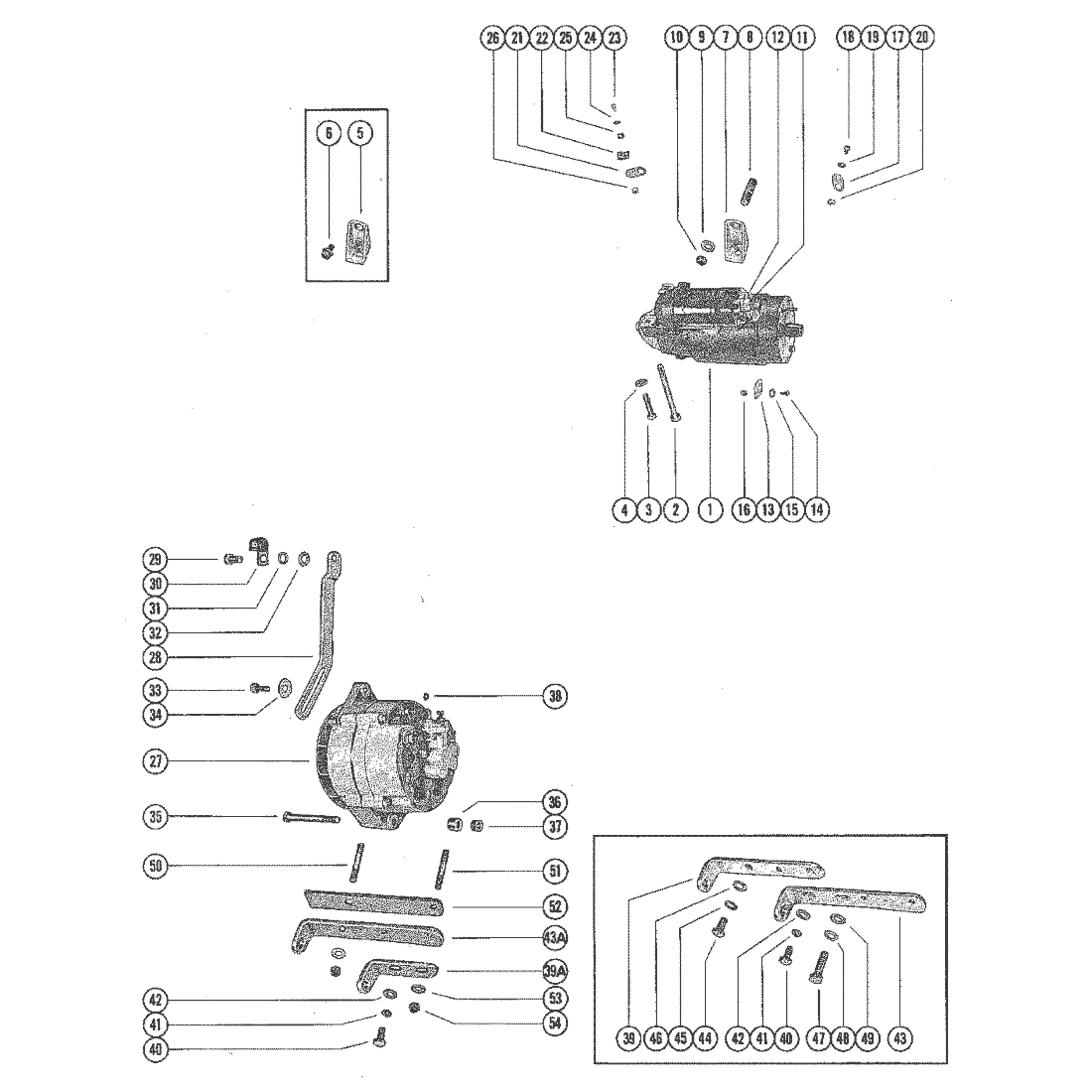

| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 32703 | SS |
|
$366.99 | $330.48 | 1 | |
| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 46282 | SS |
|
$366.99 | $330.48 | 1 | |
| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 59799 | SS |
|
$366.99 | $330.48 | 1 | |
| 2 | 94435001 | BOLT, STARTER MOTOR MOUNTING (4 21/32") | 34545 | SS |
|
$0.00 | $0.00 | 1 | |
| 3 | 8053433 | BOLT, STARTER MOTOR MOUNTING (1 15/16") | 34544 | SS |
|
$16.19 | $15.80 | 1 | |
| 4 | 32648 | WASHER, STARTER MOTOR BOLT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 54671T | BRACE, STARTER MOTOR | 34546 | SS |
|
$0.00 | $0.00 | 1 | |
| 6 | 35765A1 | SCREW, BRACE TO MOTOR AND CYLINDERBLOCK (5/8") | 48543 | SS |
|
$1.50 | $1.47 | 2 | |
| 7 | 54671T | BRACE, STARTER MOTOR | 52250 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 52387 | STUD, BRACE TO MOTOR AND CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 26168 | WASHER, BRACE STUD | 20103 | SS |
|
$1.70 | $1.66 | 2 | |
| 10 | 82670911 | NUT, BRACE STUD | 35814 | SS |
|
$4.99 | $4.88 | 2 | |
| 11 | 32219 | NUT, SOLENOID SWITCH TERMINAL (3/8-16) | 28517 | SS |
|
$2.79 | $2.72 | 1 | |
| 12 | 26419 | NUT, SOLENOID SWITCH TERMINAL (8-32) | ACT | $1.70 | $1.66 | 1 | |||
| 13 | 32786 | TAB, STARTER MOTOR SOLENOID TERMINAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 20191 | SCREW, HARNESS LEAD TO SOLENOID TERMINAL TAB | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 26995 | LOCKWAHSER, WIRING HARNESS LEAD SCREW | ACT |
|
$1.10 | $1.08 | 1 | ||
| 16 | 26419 | NUT, WIRING HARNESS LEAD SCREW | ACT |
|
$1.70 | $1.66 | 1 | ||
| 17 | 32786 | TAB, WIRING HARNESS LEAD TO CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 20191 | SCREW, WIRING HARNESS LEAD TO CYLINDER BLOCK TAB | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 26995 | LOCKWASHER, WIRING HARNESS LEAD SCREW | ACT |
|
$1.10 | $1.08 | 1 | ||
| 20 | 26419 | NUT, WIRING HARNESS LEAD SCREW | ACT |
|
$1.70 | $1.66 | 1 | ||
| 21 | 32786 | TAB, STARTER MOTOR TO CYLINDER BLOCK SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 26550 | CLAMP, WIRING HARNESS TO STARTER MOTOR | ACT |
|
$4.79 | $4.69 | 1 | ||
| 23 | 20191 | SCREW, WIRING HARNESS CLIP TO STARTER MOTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 26995 | LOCKWASHER, WIRING HARNESS CLIP SCREW | ACT |
|
$1.10 | $1.08 | 1 | ||
| 25 | 8M0084613 | "D" WASHER, WIRING HARNESS CLIP SCREW | 22789 | SS |
|
$1.10 | $1.08 | 1 | |
| 26 | 26419 | NUT, WIRING HARNESS CLIP SCREW | ACT |
|
$1.70 | $1.66 | 1 | ||
| 27 | 47456A1 | ALTERNATOR ASSEMBLY | 32701 | SS |
|
$0.00 | $0.00 | 1 | |
| 27 | 47456A1 | ALTERNATOR ASSEMBLY | 37615A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 27 | 78403A2 | ALTERNATOR ASSEMBLY | 56045 | SS |
|
$0.00 | $0.00 | 1 | |
| 27 | 78403A2 | ALTERNATOR ASSEMBLY | 59755 | SS |
|
$0.00 | $0.00 | 1 | |
| 28 | 32754T | BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT) | 32754 | SS |
|
$0.00 | $0.00 | 1 | |
| 29 | 98261 | SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4") | 27165 | SS |
|
$1.20 | $1.18 | 1 | |
| 30 | 54178 | "J" CLIP, WATER TEMPERATURE SENDER LEAD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 35048 | LOCKWASHER, ALTERNATOR BRACE SCREW | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 32 | 20553 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 33 | 29198 | SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8") | ACT | $4.59 | $4.49 | 1 | |||
| 34 | 26168 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 35 | 32775 | SCREW, ALTERNATOR TO BRACKET (3 1/2") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 48308 | SCREW, ALTERNATOR TO BRACKET (3 3/4") | 56057 | SS |
|
$4.49 | $4.39 | 1 | |
| 36 | 32727 | SPACER, ALTERNATOR SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 23161 | NUT, ALTERNATOR SCREW | ACT | $2.89 | $2.82 | 1 | |||
| 38 | 20192 | WASHER, ALTERNATOR GROUND TERMINAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 52818 | BRACKET, ALTERNATOR MOUNTING | 32753 | SS |
|
$0.00 | $0.00 | 1 | |
| 39A | 52817 | BRACKET, ALTERNATOR MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 33524 | SCREW, ALTERNATOR MOUNTING BRACKET TO CYLINDER BLOCK (5/8") | ACT | $0.20 | $0.20 | 1 | |||
| 41 | 8M0204647 | LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW | 26993 | SS |
|
$1.80 | $1.76 | 1 | |
| 42 | 26825 | WASHER, ALTERNATOR MOUNTING BRACKET SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 43 | 32835 | BRACKET, ALTERNATOR MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 52817 | BRACKET, ALTERNATOR MOUNTING | 46475 | SS |
|
$0.00 | $0.00 | 1 | |
| 43A | 52818 | BRACKET, ALTERNATOR M,OUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 44 | 98261 | SCREW, ALTERNATOR MOUNTING BRACKET TO CYLINDER BLOCK (3/4") | 27165 | SS |
|
$1.20 | $1.18 | 1 | |
| 45 | 35048 | LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 46 | 20553 | WASHER, ALTERNATOR MOUNTING BRACKET SCREW | ACT |
|
$1.50 | $1.47 | 1 | ||
| 47 | 37612 | SCREW, ALTERNATOR MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4" | 26632 | SS |
|
$2.49 | $2.43 | 1 | |
| 48 | 35048 | LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 49 | 20553 | WASHER, ALTERNATOR MOUNTING BRACKET SCREW | ACT |
|
$1.50 | $1.47 | 1 | ||
| 50 | 54177 | STUD, MOUNTING BRACKET TO CYKLINDER BLOCK (1 3/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 51 | 54176 | STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 52 | 53502 | GASKET, ALTERNATOR MOUNTING BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 53 | 20553 | WASHER, MOUNTING BRACKET STUD | ACT |
|
$1.50 | $1.47 | 2 | ||
| 54 | 8M0214936 | NUT, MOUNTING BRACKET STUD | 49910 | SS |
|
$5.29 | $5.17 | 2 |
