| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

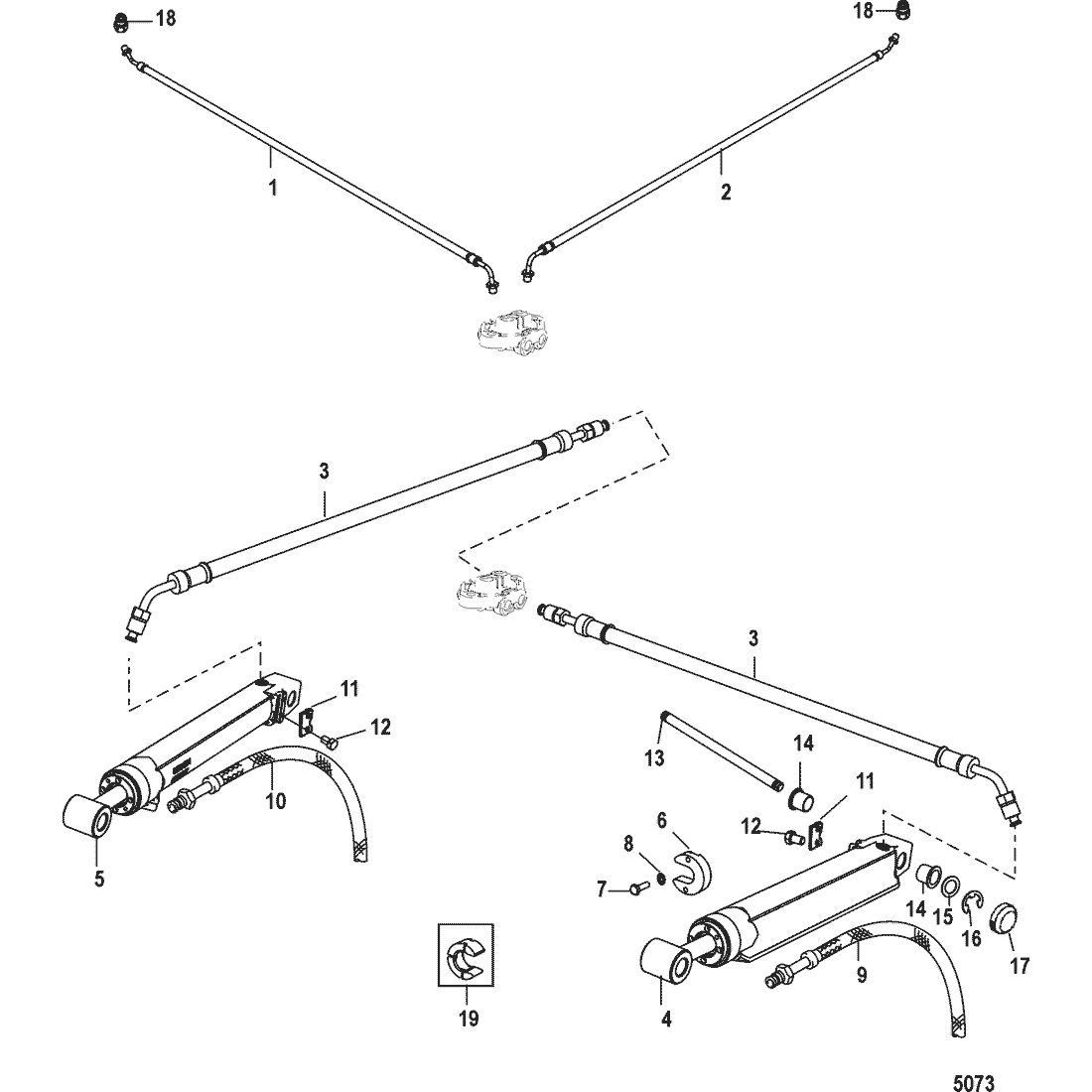

| 1 | 861127 | HOSE, Black, Transom Manifold To Pump | ACT |
|
$94.49 | $89.00 | 1 | ||
| 2 | 861128 | HOSE, Gray, Transom Manifold To Pump | ACT |
|
$96.49 | $90.49 | 1 | ||
| 3 | 99904Q | HOSE, Trim Cylinder To Manifold Assembbly | 99904 | SS |
|
$65.49 | $61.61 | 2 | |
| 4 | 8M0118959 | TRIM CYLINDER ASSEMBLY | 815954A7 | SS |
|
$683.49 | $622.47 | 1 | |
| 5 | 8M0118958 | TRIM CYLINDER ASSEMBLY | 815935A7 | SS |
|
$683.49 | $622.47 | 1 | |
| - | 87399A3 | --OVERHAUL KIT | ACT |
|
$329.99 | $297.42 | 2 | ||
| - | 87400A2 | ----SEAL KIT | ACT | $39.99 | $39.20 | 2 | |||
| 6 | 806189Q1 | --ANODE ASSEMBLY | 806189A1 | SS |
|
$14.49 | $14.14 | 2 | |
| 7 | 806290 | ----SCREW, (#10-32 x .625) | ACT | $1.20 | $1.18 | 4 | |||
| 8 | 69432 | ----LOCKWASHER, External (#10) | ACT | $1.00 | $0.98 | 4 | |||
| 9 | 864960 | HOSE, Trim Cylinder | 999021 | SS |
|
$72.99 | $68.51 | 1 | |
| 10 | 864959 | HOSE, Trim Cylinder | 999031 | SS |
|
$72.99 | $68.51 | 1 | |
| 11 | 85060 | PLATE | ACT | $8.69 | $8.49 | 2 | |||
| 12 | 85486 | SCREW, (.250-20 x .380) Stainless Steel | ACT | $1.80 | $1.76 | 4 | |||
| 13 | 815953A01 | PIN | 815953 | SS |
|
$30.99 | $30.36 | 2 | |
| 14 | 8M0214952 | BUSHING | 815950 | SS |
|
$12.29 | $12.00 | 8 | |
| 15 | 815952 | WASHER | ACT | $1.80 | $1.76 | 4 | |||
| 16 | 8M0214951 | E RING | 815949 | SS |
|
$5.69 | $5.56 | 4 | |
| 17 | 8M0214953 | CAP | 815951 | SS |
|
$6.69 | $6.54 | 4 | |
| 18 | 808727 | CONNECTOR, (.50-20 UNF To .4375-24 Inverted Flare) | ACT | $38.49 | $37.78 | 2 | |||
| 18 | 865590 | CONNECTOR, (.50 UNF To .25 Inverted Flare) | ACT | $49.99 | $49.02 | 2 | |||
| 19 | 15768A3 | SPACER KIT (UP) | ACT | $16.69 | $16.37 | 1 |
