| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

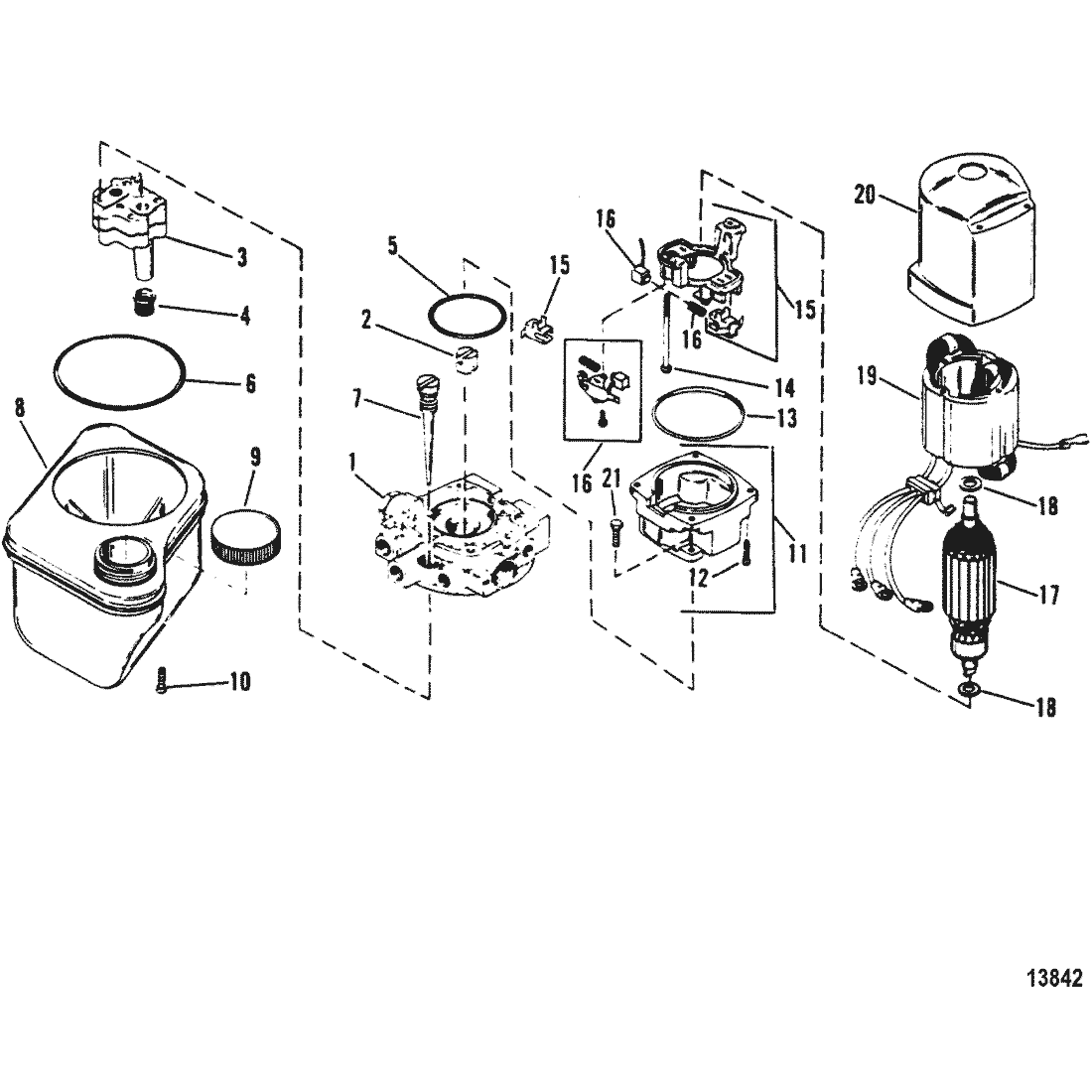

| - | 865380A13 | PUMP/MOTOR ASSEMBLY | 14336A8 | SS |
|
$1,168.49 | $1,070.80 | 1 | |
| 1 | 808728T | --ADAPTOR, With Out Screen Connectors | 18528 | SS |
|
$416.99 | $398.39 | 1 | |
| 1 | 808728T | --ADAPTOR, With Screen Connectors | 808728 | SS |
|
$416.99 | $398.39 | 1 | |
| 2 | 803852 | ----COUPLING | 89493 | SS |
|
$63.99 | $61.40 | 1 | |
| 3 | 18529 | ----PUMP ASSEMBLY, Included Screws | ACT |
|
$417.99 | $399.14 | 1 | ||
| 4 | 89496 | ------FILTER | ACT | $13.09 | $12.78 | 1 | |||
| 5 | 89498 | ----O-RING, Motor End | ACT | $11.39 | $11.12 | 1 | |||
| 6 | 17645 | ----O-RING, Reservoir End | ACT | $19.49 | $19.07 | 1 | |||
| 7 | 41218 | --DIPSTICK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 18525A1 | --RESERVOIR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 8M0188327 | ----CAP, Oil Reservoir, With Vent Holes | 18526 | SS |
|
$8.29 | $8.10 | 1 | |
| 10 | 18527 | ----SCREW, Includes O-Rings | ACT | $7.39 | $7.22 | 1 | |||
| - | 891736T | --MOTOR | 17649 | SS |
|
$378.99 | $362.00 | 1 | |
| 11 | 891736T | ----END CAP ASSEMBLY | 17632 | SS |
|
$378.99 | $362.00 | 1 | |
| 12 | 891736T | ------SCREW | 17626 | NLA |
|
$378.99 | $362.00 | 4 | |
| 13 | 891736T | ----O-RING | 17625 | NLA |
|
$378.99 | $362.00 | 1 | |
| 14 | 891736T | ----SCREW | 17621 | NLA |
|
$378.99 | $362.00 | 2 | |
| 15 | 891736T | ----HOLDER KIT | 17633 | NLA |
|
$378.99 | $362.00 | 1 | |
| 16 | 891736T | ----BRUSH KIT | 17631A1 | NLA |
|
$378.99 | $362.00 | 1 | |
| 17 | 891736T | ----ARMATURE | 17623 | NLA |
|
$378.99 | $362.00 | 1 | |
| 18 | 891736T | ----WASHER | 17653 | NLA |
|
$378.99 | $362.00 | 2 | |
| 19 | 891736T | ----FIELD AND FRAME ASSEMBLY | 17624 | NLA |
|
$378.99 | $362.00 | 1 | |
| 20 | 891736T | ----COVER ASSEMBLY | 17622 | NLA |
|
$378.99 | $362.00 | 1 | |
| 21 | 823444 | --SCREW | ACT | $2.99 | $2.92 | 2 | |||
| - | 812498A1 | --VALVE KIT, Relief | ACT |
|
$107.49 | $101.16 | - | ||
| - | 812499A1 | --VALVE KIT, Relief | ACT |
|
$118.99 | $111.67 | - | ||
| - | 95353A1 | --VALVE KIT, Relief | ACT |
|
$68.99 | $66.37 | - | ||
| - | 18545A1 | --REPAIR KIT | ACT |
|
$174.99 | $164.57 | - |
