| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

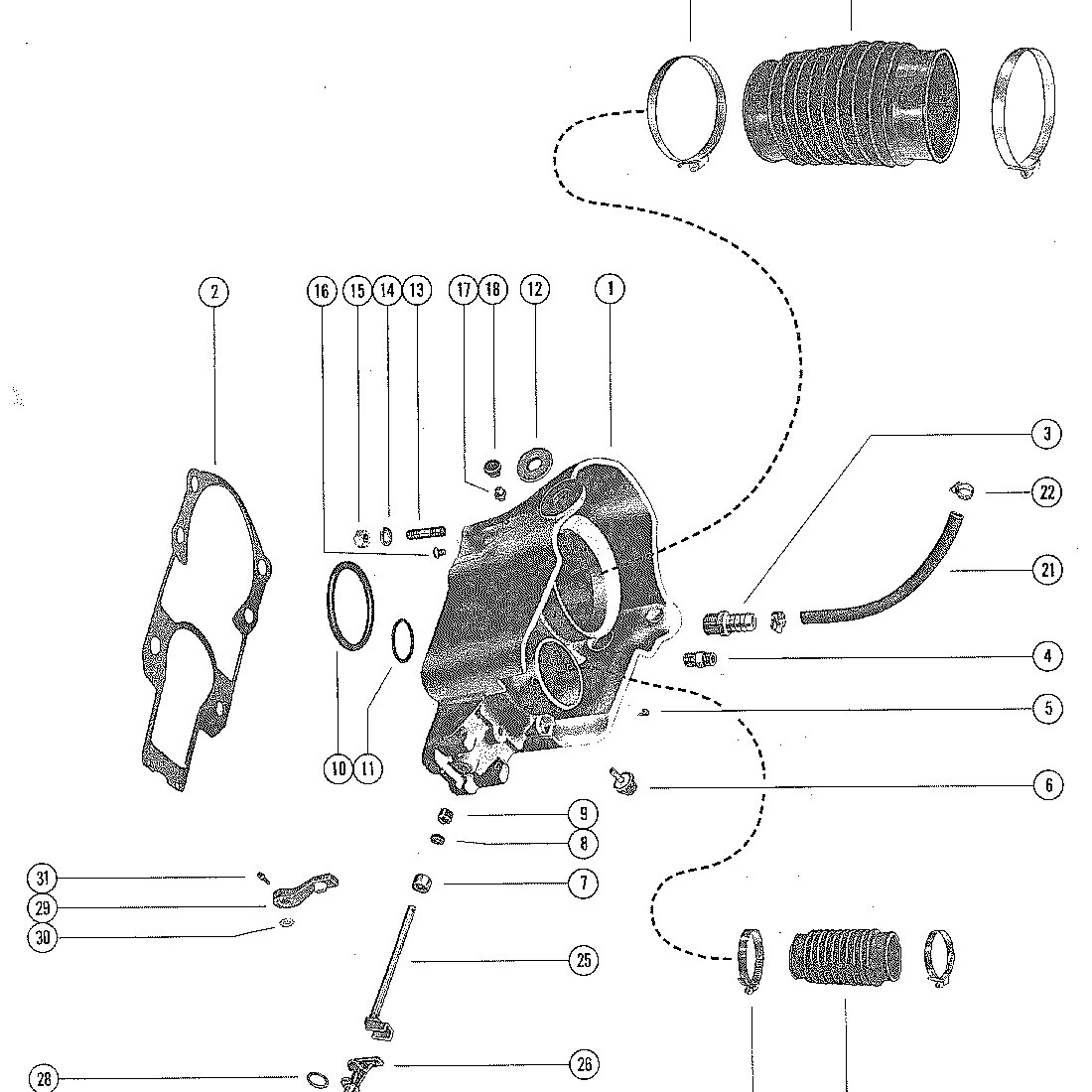

| 1 | 68417A1 | BELL HOUSING ASSEMBLY | 46734A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 68417A1 | BELL HOUSING ASSEMBLY | 63505A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 68417A1 | BELL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER) | 66156A6 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 42815A6 | BELL ASSEMBLY (WITH GIMBAL TRIM SENDER) | 65535A4 | SS |
|
$980.49 | $922.46 | 1 | |
| 2 | 64818Q4 | --GASKET, DRIVE SHAFT HAG. TO BELL HAG.(PART OF DRIVE SHAFT H | 64818 | SS |
|
$15.49 | $15.12 | 1 | |
| 3 | 33066 | --CONNECTOR, WATER HOSE TO BELL HOUSING | ACT | $19.09 | $18.74 | 1 | |||
| 4 | 32125 | --CONNECTOR, SHIFT CABLE - BELL HOUSING (EARLY MODELS) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 25612 | --SCREW, DRIVE - BELL HOUSING FLANGE | NLA |
|
$0.00 | $0.00 | 8 | ||
| 6 | 31014 | --BUMPER, BELL HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 63679 | --BUMPER, BELL HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 814308 | --BUSHING, BELL HOUSING (5/8") | 35088 | SS |
|
$9.69 | $9.46 | 1 | |
| 8 | 45587 | --OIL SEAL, BELL HOUSING | ACT | $16.29 | $15.90 | 1 | |||
| 9 | 805041A2 | --BUSHING, BELL HOUSING (5/16") | 45588 | SS |
|
$62.99 | $60.44 | 1 | |
| 10 | 8M0204656 | --GASKET, RUBBER - BELL HOUSING | 35982 | SS |
|
$5.89 | $5.76 | 1 | |
| 11 | 8M0214926 | --"O" RING, BELL HOUSING | 33504 | SS |
|
$2.89 | $2.82 | 1 | |
| 12 | 38000 | WASHER, SYNTHANE - BELL HOUSING (WITHOUT GIMBAL TRIM SENDER) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 12 | 8M0162651 | WASHER, SYNTHANE - BELL HOUSING (WITH GIMBAL TRIM SENDER) | 72498 | SS |
|
$1.70 | $1.66 | 2 | |
| 13 | 59579 | STUD, BELL HOUSING TO DRIVE SHAFT HOUSING | ACT | $8.69 | $8.49 | 6 | |||
| 14 | 8M0204655 | WASHER, BELL HOUSING STUD | 35935 | SS |
|
$2.69 | $2.62 | 6 | |
| 15 | 8M0204653 | NUT, BELL HOUSING STUD | 34933 | SS |
|
$5.29 | $5.17 | 6 | |
| 16 | 36398 | SCREW, PLUG - BELL HOSUING (1/4") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 17 | 8M0169589 | FITTING, GREASE - BELL HOUSING | 31345 | SS |
|
$4.79 | $4.69 | 2 | |
| 18 | 77633Q | LUBRICAP, BELL HOUSING GREASE FITTING | 29359 | SS |
|
$6.99 | $6.83 | 2 | |
| 19 | 36223A2 | BELLOWS ASSEMBLY, UNIVERSAL JOINT | 36223A1 | SS |
|
$88.49 | $84.96 | 1 | |
| 19 | 60932A4 | BELLOWS ASSEMBLY, UNIVERSAL JOINT | 60932A1 | SS |
|
$88.49 | $84.96 | 1 | |
| 20 | 815504372 | CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING AND GIMBAL HO | 31765 | SS |
|
$16.49 | $16.09 | 2 | |
| 21 | 47642 | HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING | ACT | $28.89 | $28.32 | 1 | |||
| 22 | 815504310 | CLAMP, WATER HOSE ATTACHING | 32523 | SS |
|
$17.99 | $17.56 | 2 | |
| 23 | 8M0124227 | BELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSING | 32734 | SS |
|
$45.99 | $45.02 | 1 | |
| 24 | 815504348 | CLAMP, EXHAUST BELLOWS TO BELL HOUSING AND GIMBAL HOUSING | 32533 | SS |
|
$18.99 | $18.58 | 2 | |
| 25 | 8M0184382 | SHAFT ASSEMBLY, SHIFT - UPPER | 45589A1 | SS |
|
$174.49 | $164.10 | 1 | |
| 26 | 32628T | SHAFT, SHIFT - INTERMEDIATE | 32628 | SS |
|
$0.00 | $0.00 | 1 | |
| 26 | 621041 | SHAFT, SHIFT - INTERMEDIATE | 62104 | SS |
|
$116.99 | $109.79 | 1 | |
| 27 | 32665 | COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING | ACT | $3.69 | $3.59 | 1 | |||
| 28 | 32666 | WASHER, INTERMEDIATE SHIFT SHAFT | ACT | $2.69 | $2.62 | 1 | |||
| 29 | 45518A3 | LEVER ASSEMBLY, UPPER SHIFT SHAFT | 45518A1 | SS |
|
$44.99 | $44.03 | 1 | |
| 30 | 39116 | WASHER, UPPER SHIFT LEVER | ACT | $1.50 | $1.47 | 1 | |||
| 31 | 8M0084649 | SCREW, UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16") | 45590 | SS |
|
$4.59 | $4.49 | 1 |
