Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

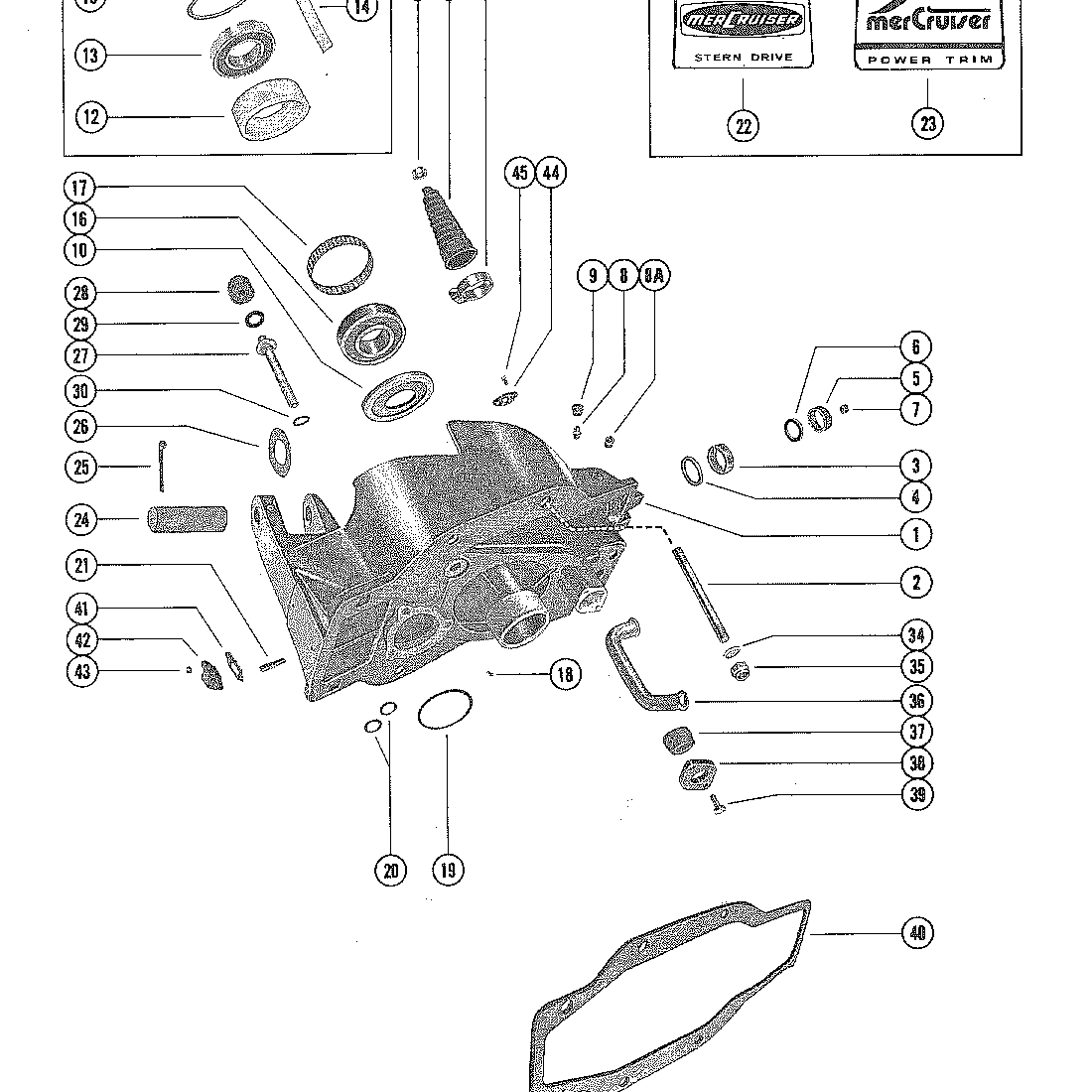

1 63504A1 GIMBAL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER) NLA $0.00 $0.00 1
1 70862A1 GIMBAL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER) NLA $0.00 $0.00 1
3 32536 --BEARING, ROLLER - GIMBAL HOUSING (LOWER) ACT $5.98 $5.84 1
4 32911 --OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING ACT $15.59 $15.22 1
5 39634 --BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER) ACT $21.50 $21.21 1
6 32540 --OIL SEAL, UPPER GIMBAL HOUSING BUSHING NLA $0.00 $0.00 1
5 21145 --ROLLER BEARING, GIMBAL HOUSING (UPPER) ACT $17.29 $16.94 1
6 54925 --OIL SEAL, UPPER GIMBAL HOUSING BEARING ACT $20.29 $19.89 1
7 390721 --PLUG, PIPE - GIMBAL HOUSING 52644 SS $9.29 $9.07 1
8 8M0169589 --FITTING, GREASE - GIMBAL HOUSING 31345 SS $4.79 $4.69 2
8 8M0169589 --FITTING, GREASE - GIMBAL HOUSING (STAINLESS STEEL) 74036 SS $4.79 $4.69 2
8A 8M0204679 --PLUG, PLASTIC - GIMBAL HOUSING 58934 SS $10.99 $10.73 2
9 77633Q --LUBRICAP, GIMBAL HOUSING GREASE FITTING 29359 SS $6.99 $6.83 2
10 88416 --SEAL, GREASE - GIMBAL HOUSING 36143 SS $0.00 $0.00 1
12 35130 --ADAPTOR, BEARING CARRIER NLA $0.00 $0.00 1
13 36418 --BEARING, BALL - GIMBAL HOUSING ACT $174.99 $157.69 1
14 35244A1 --SHIM, GIMBAL HOUSING BEARING (.022 THRU .010) NLA $0.00 $0.00 AR
15 35128 --SNAP RING, BEARING RETAINING ACT $20.69 $20.30 1
16 879194A02 --BEARING ASSEMBLY, BALL - GIMBAL HOUSING 60794A2 SS $138.99 $124.94 1
17 61075 ----TOLERANCE RING, GIMBAL HOUSING BEARING NLA $0.00 $0.00 1
18 25612 --SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE NLA $0.00 $0.00 13
19 20863 --"O" RING, GIMBAL HOUSING ACT $4.59 $4.49 1
20 23145 --"O" RING, GIMBAL HOUSING ACT $1.99 $1.95 2
21 56766 --STUD, HYDRAULIC CONNECTOR TO GIMBAL HOUSING ACT $3.69 $3.59 2
22 87018 --EMBLEM, GIMBAL HOUSING 60884 SS $0.00 $0.00 1
23 87018 --DECAL, GIMBAL HOUSING 76733 SS $0.00 $0.00 1
24 45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER) ACT $0.00 $0.00 1
25 54929 COTTER PIN, RETAINING - LOWER SWIVEL PIN 34212 SS $7.89 $7.71 1
26 32518 WASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN ACT $3.79 $3.69 1
27 8M0030655 BOLT ASSEMBLY, ANONIC - GIMBAL HOUSING TO TRANSOM PLATE 55989A1 SS $72.49 $67.96 2
28 55989Q9 --ANODIC HEAD, BOLT ASSEMBLY 55989 SS $20.09 $19.72 2
29 56085 --WASHER, ANODIC BOLT ASSEMBLY ACT $1.20 $1.18 2
30 32620 WASHER, GIMBAL HOUSING BOLT ACT $1.50 $1.47 2
31 74639A2 BELLOWS, SHIFT ACTUATING CABLE 74639 SS $34.99 $34.29 1
32 8M0204733 CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE 38863 SS $7.49 $7.32 1
33 8M0204716 CLAMP,SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING 31766 SS $11.49 $11.22 1
34 22248 WASHER, GIMBAL HOUSING STUD ACT $1.50 $1.47 2
35 8M0204653 NUT, GIMBAL HOUSING STUD 34933 SS $5.29 $5.17 2
36 8M0171251 TUBE, WATER - GIMBAL HOUSING 60542 SS $44.99 $44.12 1
37 28055 BUSHING, RUBBER - WATER TUBE SEALING NLA $0.00 $0.00 1
38 32517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING NLA $0.00 $0.00 1
39 28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8") ACT $1.80 $1.76 2
40 65373 GASKET, GIMBAL HOUSING TO TRAMSOM (WITHOUT GIMBAL TRIM SENDE ACT $68.49 $64.43 1
40 65533A1 SEAL, GIMBAL HOUSING TO TRANSOM (WITH GIMBAL TRIM SENDER) 65533 SS $21.59 $21.20 1
41 476441 GASKET, HYDRAULIC CONNECTOR 47644 SS $2.69 $2.62 1
42 47347 CONNECTOR, HYDRAULIC - GIMBAL HOUSING NLA $0.00 $0.00 1
43 35888 NUT, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD ACT $6.89 $6.73 2
44 12078 COVER, RETAINING - GIMBAL HOUSING 57322 SS $13.59 $13.27 1
45 28635 SCREW, COVER TO GIMBAL HOUSING (5/8") ACT $1.80 $1.76 2
