Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

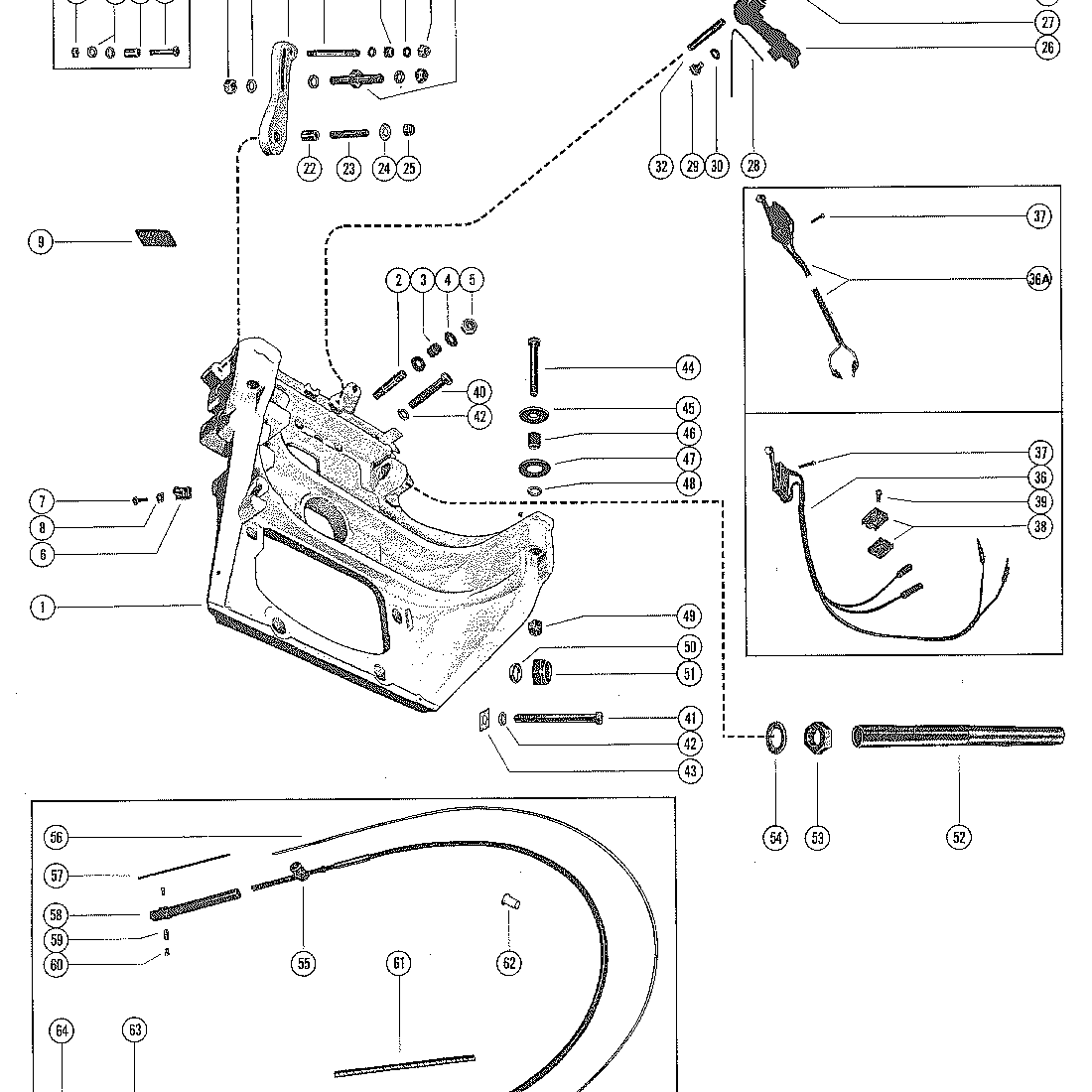

1 73872A1 PLATE, TRANSOM 45516 SS $0.00 $0.00 1
1 73872A1 PLATE, TRANSOM 48290 SS $0.00 $0.00 1
1 73872A1 PLATE ASSEMBLY, TRANSOM 49701A2 SS $0.00 $0.00 1
2 79661 --STUD, SHIFT CABLE TO TRANSOM PLATE 47360 SS $0.00 $0.00 1
3 31866 --SPACER,SHIFT CABLE STUD ACT $5.69 $5.56 1
4 39143 --WASHER, SHIFT CABLE STUD NLA $9.40 $9.17 2
5 8267089 --NUT, SHIFT CABLE STUD 20361 SS $1.50 $1.47 1
6 22740 CLIP, SWITCH LEADS TO TRANSOM PLATE (STANDARD & POWER TILT) ACT $5.09 $4.98 1
6 24836 CLIP, SWITCH LEADS TO TRANSOM PLATE (POWER TRIM) ACT $4.19 $4.10 1
6 24836 CLIP, SWITCH LEADS TO TRANSOM PLATE (POWER TRIM) 23568 SS $4.19 $4.10 2
7 35519 SCREW, SWITCH LEADS CLIP TO TRANSOM PLATE (1/2") NLA $0.00 $0.00 1
7 21643 SCREW, SWITCH LEADS CLIP TO TRASOM PLATE (1/2") NLA $0.00 $0.00 1
8 8M0084613 "D" WASHER, SWITCH LEADS CLIP SCREW 22789 SS $1.10 $1.08 2
9 39395 DECAL, SERIAL NUMBER NLA $0.00 $0.00 1
10 46004 LEVER, SHIFT CONTROL - TRANSOM PLATE( STANDARD & POWER TILT) NLA $0.00 $0.00 1
10 63333A2 LEVER, SHIFT CONTROL - CAM LEVER (POWER TRIM ) 45529 SS $0.00 $0.00 1
10 63333A2 LEVER, ASSEMBLY, SHIFT CONTROL - CAM LEVER POWER TRIM-2 49702A2 SS $0.00 $0.00 1
11 79661 --STUD, SHIFT CABLE TO LEVER POWER TRIM-2 47360 SS $0.00 $0.00 1
12 31866 --SPACER, SHIFT CABLE STUD POWER TRIM-2 ACT $5.69 $5.56 1
13 39143 --WASHER, SHIFT CABLE STUD POWER TRIM-2 NLA $9.40 $9.17 2
14 8267089 --NUT, SHIFT CABLE STUD POWER TRIM-2 20361 SS $1.50 $1.47 1
15 22659 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER (1 5/8") NLA $1.10 $1.08 1
16 31866 SPACER, SHIFT CABLE ASSEMBLY SCREW ACT $5.69 $5.56 1
17 39143 WASHER, SHIFT CABLE ASSEMBLY SCREW NLA $9.40 $9.17 2
18 8267089 NUT,SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER SCREW 20361 SS $1.50 $1.47 1
19 34069 STUD, SHIFT ACTUATIN CABLE TO CONTRL LEVER (2 1/4") NLA $0.00 $0.00 1
20 39143 WASHER, SHIFT ACTUATING CABLE STUD NLA $9.40 $9.17 3
21 8267089 NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER 20361 SS $1.50 $1.47 2
22 46003 SPACER, SHIFT CONTROL LEVER STUD NLA $0.00 $0.00 1
23 38376 STUD, SHIFT CONTROL LEVER TO TRANSOM PLATE (2") NOT USED WI NLA $0.00 $0.00 1
24 26825 WASHER, SHFIT CONTROL LEVER STUD ACT $1.50 $1.47 2
25 82670911 NUT, SHIFT CONTROL LEVER TO TRANSOM PLATE STUD 21528 SS $4.99 $4.88 1
26 13051A4 ARM ASSEMBLY, SWITCH ACTUATING 45517A2 SS $0.00 $0.00 1
27 45600 --SLEEVE, SWITCH ACTUATING ARM STUD NLA $4.80 $4.68 1
28 862850 --SPRING, TENSION - SWITCH ACTUATING RUN 45599 SS $19.69 $19.21 1
29 98257 --SCREW, TENSION SPRING TO ARM 33231 SS $1.10 $1.08 1
30 26825 --WASHER, TENION SPRING SCREW ACT $1.50 $1.47 1
31 8M0214922 --COTTER PIN, SHIFT ACUTUATINE CABLE TO TRANSOM PLATE 32857 SS $3.79 $3.69 1
32 66373 STUD, SWITCH ACCTUATINARM TO TRANSON PAT92 (2 5/16") 32467 SS $0.00 $0.00 1
33 37981 SPACER, SWITCH ACTUATING ARM TO TRANSOM PLOT NLA $11.25 $11.00 1
34 26825 WASHER, SWITCH ACTUATING ARM STUD ACT $1.50 $1.47 2
35 7699 NUT, SWITCH ACTUATING ARM STUD 3514 SS $0.00 $0.00 1
36 39671A3 --SWITCH ASSEMBLY, CUT- OUT - TRANSOM PLATE 39671A1 SS $0.00 $0.00 1
36A 49646A2 SWITCH ASSEMBLY, CUT - OUT - TRANSOM PLATE (POWER TRIM-1) 48496A1 SS $0.00 $0.00 1
36A 49646A2 SWITCH ASSEMBLY, CUT - OUT - TRANSOM PLATE (POWER TRIM-2) 49646A1 SS $0.00 $0.00 1
37 30902 SCREW, SWITCH ASSEMBLY TO TRANSOM PLATE (3/4") NLA $1.21 $1.18 2
38 39974 CONNECTOR, CUT-OUT SWITCH LEADS TO TRANSOM PLATE NLA $0.00 $0.00 2
39 37892 SCREW, CONNECTOR TO TRANSOM PLATE (1") NLA $1.32 $1.29 2
40 37269 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2") ACT $5.29 $5.17 2
41 37268 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 1/4") ACT $14.59 $14.24 2
42 32993 LOCKWASHER, TRANSOM PLATE SCREW 37272 SS $1.70 $1.66 4
43 37271 WASHER, SQUARE - TRANSOM PLATE SCREW ACT $3.69 $3.59 2
44 8M0215010 SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4") 36289 SS $5.99 $5.86 2
45 8M0204648 WASHER, TRANSOM PLATE SCREW 28421 SS $3.99 $3.91 2
46 99299 SPACER, TRANSOM PLATE SCREW 36290 SS $7.49 $7.32 2
47 32834 WASHER, TRANSOM PLATE SCREW ACT $7.09 $6.93 2
48 33734 LOCKWASHER, TRANSOM PLATE SCREW ACT $2.69 $2.62 2
49 82671317 NUT,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW 20220 SS $3.79 $3.69 2
50 21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT ACT $3.39 $3.30 2
52 71565A2 TUBE, STEERING CABLE GUIDE (7/8" O.D.) 35015 SS $61.49 $59.00 1
53 8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE 37984 SS $15.89 $15.51 2
54 37985 WASHER, STEERING CABLE GUIDE TUBE NLA $0.00 $0.00 2
55 73723A01 CABLE ASSEMBLY, SHIFT ACTUATING 49518A1 SS $136.99 $128.86 1
56 38399A2 --CORE WIRE AND ANCHOR ASSEMBLY, INNER SHIFT CABLE NLA $0.00 $0.00 1
57 38377 ----TUBE, SUPPORT - SHIFT ACTUATING CABEL ACT $11.89 $11.61 1
58 8M0204660 GUIDE, SHIFT ACTUATING CABLE END 29880 SS $17.89 $17.46 1
59 20007 ANCHOR, SHIFT ACTUATING CABLE END GUIDE ACT $28.69 $28.15 1
60 8M0204644 SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE 20518 SS $1.80 $1.76 2
61 38473 WRAPPING, SHIFT ACTUATING CABLE ACT $2.69 $2.62 1
62 14705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE 34049 SS $5.49 $5.37 1
63 865436A02 SLIDE, SHIFT ACTUATING CABLE 33981 SS $0.00 $0.00 1
63 865436A02 SLIDE, SHIFT SCUATING CABLE 33981 SS $0.00 $0.00 1
64 8M0214921 SCREW SET - SHIFT ACTUATING CABLE TO SLIDE 31700 SS $2.99 $2.92 1
-- 805475A1 ROD, ALIGMMENT - TRANSOM PLATE TO ENGINE 48247 SS $290.99 $273.96 1
