| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

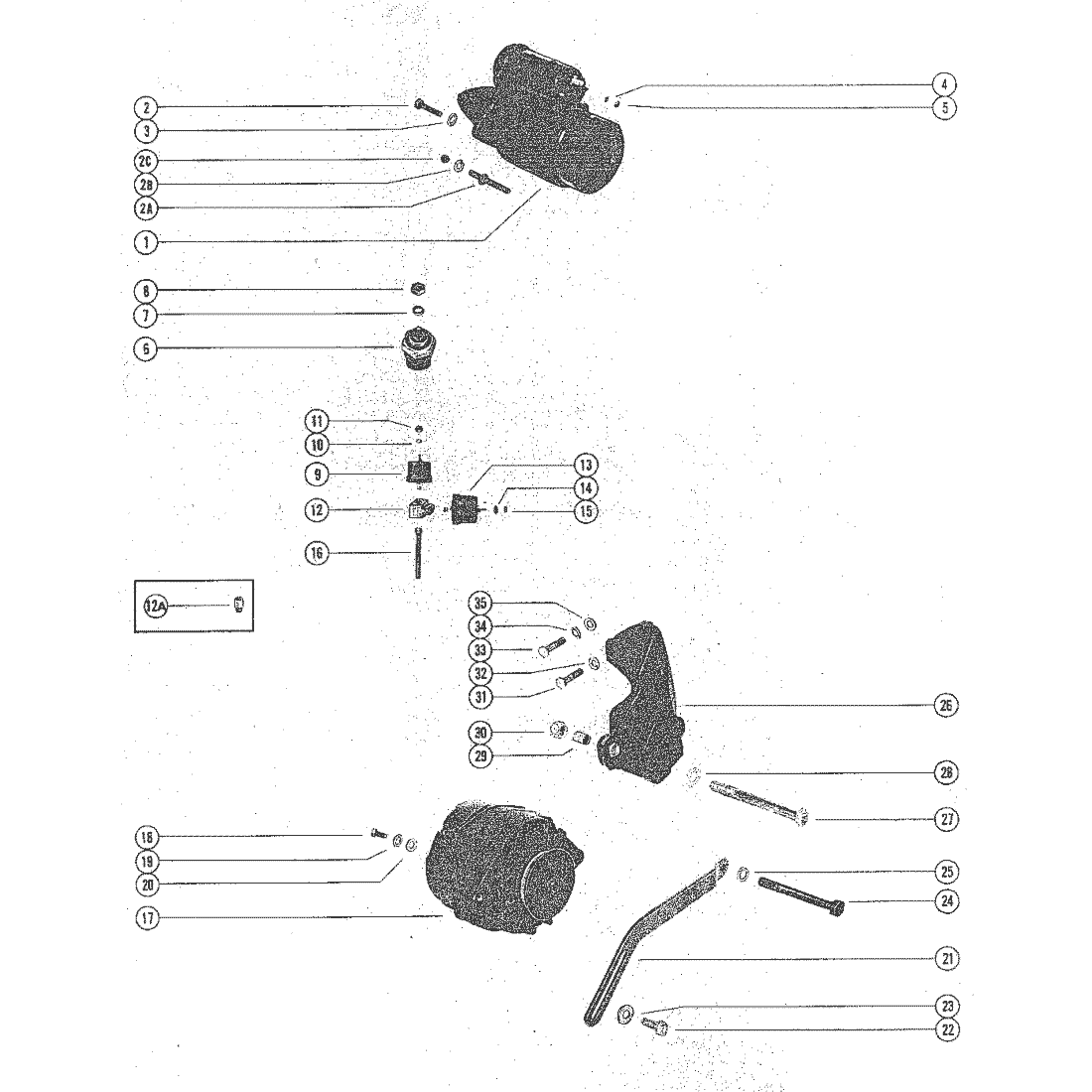

| 1 | 12872 | STARTER MOTOR ASSEMBLY | 56886 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 69865A1 | STARTER MOTOR ASSEMBLY | 69865 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 37612 | SCREW, STARTER MOTOR TO CYL. BLOCK | 26632 | SS |
|
$2.49 | $2.43 | 2 | |
| 2 | 37612 | SCREW STARTER MOTOR TO CYL. BLOCK | 26632 | SS |
|
$2.49 | $2.43 | 1 | |
| 2A | 861316 | STUD, STARTER MOTOR TO CYLINDER BLOCK | 64066 | SS |
|
$15.09 | $14.73 | 1 | |
| 2B | 35048 | LOCKWASHER, STARTER MOTOR STUD | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 2C | 32219 | NUT, STARTER MOTOR STUD | ACT |
|
$2.79 | $2.72 | 1 | ||
| 3 | 35048 | LOCKWASHER, STARTER MOTOR SCREW | 37459 | SS |
|
$1.20 | $1.18 | 2 | |
| 4 | 8M0204647 | LOCKWASHER, STARTER MOTOR TERMINAL (5/16) | 26993 | SS |
|
$1.80 | $1.76 | 1 | |
| 5 | 22053 | NUT, STARTER MOTOR TERMINAL (5/16-24) | ACT | $0.20 | $0.20 | 1 | |||
| 6 | 806490T | WATER TEMPERATURE SENDER ASSEMBLY | 36525 | SS |
|
$41.49 | $40.58 | 1 | |
| 7 | 26996 | LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10) | ACT | $1.20 | $1.18 | 1 | |||
| 8 | 68219 | NUT, WATER TEMPERATURE SENDER TERMINAL (#10) | 20645 | SS |
|
$2.99 | $2.92 | 1 | |
| 9 | 8M0068784 | OIL PRESSURE SENDER ASSEMBLY (FOR GAUGE) | 34623 | SS |
|
$133.49 | $120.13 | 1 | |
| 10 | 26996 | LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10) | ACT | $1.20 | $1.18 | 1 | |||
| 11 | 68219 | NUT, OIL PRESSURE SENDER TERMINAL (#10) | 20645 | SS |
|
$2.99 | $2.92 | 1 | |
| 12A | 56770 | COUPLING, SENDER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 64485 | COUPLING, OIL PRESSURE SENDER SERIAL #THRU | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 805605A1 | SWITCH, OIL PRESSURE(FOR IGNITION LIGHT) | 38559 | SS |
|
$42.49 | $41.65 | 1 | |
| 14 | 20878 | --WASHER, OIL PRESSURE SWITCH | ACT |
|
$0.70 | $0.69 | 1 | ||
| 15 | 68219 | --NUT, OIL PRESSURE SWITCH | 20645 | SS |
|
$2.99 | $2.92 | 1 | |
| 16 | 54522 | NIPPLE, OIL PRESSURE SENDER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 78403A2 | ALTERNATOR ASSEMBLY | 69729 | SS |
|
$0.00 | $0.00 | 1 | |
| 18 | 20055 | SCREW, WIRING HARNESS TO ALTERNATOR (3/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 26996 | LOCKWASHER, WIRING HARNESS SCREW | ACT | $1.20 | $1.18 | 1 | |||
| 20 | 30164 | WASHER, WIRING HARNESS SCREW | ACT | $2.49 | $2.43 | 1 | |||
| 21 | 54479 | BRACE, ALTERNATOR ADJUSTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 29198 | SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8") | ACT | $4.59 | $4.49 | 1 | |||
| 23 | 26168 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 24 | 55300 | SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4") | ACT | $17.19 | $16.78 | 1 | |||
| 25 | 39107 | LOCKWASHER, ALTERNATOR BRACE SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 26 | 61859 | BRACKET, ALTERNATOR MOUNTING | 54464 | SS |
|
$0.00 | $0.00 | 1 | |
| 27 | 48308 | SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4") | ACT | $4.49 | $4.39 | 1 | |||
| 28 | 20553 | WASHER, ALTERNATOR BRACKET SCREW | ACT | $1.50 | $1.47 | 2 | |||
| 29 | 63764 | BUSHING, ALTERNATOR BRACKET SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 23161 | NUT, ALTERNATOR BRACKET SCREW | ACT | $2.89 | $2.82 | 1 | |||
| 31 | 47462 | SCREW, BRACKET TO CYL. BLOCK (1 1/4") | ACT |
|
$1.80 | $1.76 | 1 | ||
| 32 | 32993 | LOCKWASHER, ALTERNATOR BRACKET SCREW | ACT |
|
$1.70 | $1.66 | 1 | ||
| 33 | 37612 | SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4") | ACT | $2.49 | $2.43 | 2 | |||
| 34 | 35048 | LOCKWASHER, ALTERNATOR BRACKET SCREW | 37459 | SS |
|
$1.20 | $1.18 | 2 | |
| 35 | 38344 | WASHER, ALTERNATOR BRACKET SCREW | NLA |
|
$0.00 | $0.00 | 2 |
