| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

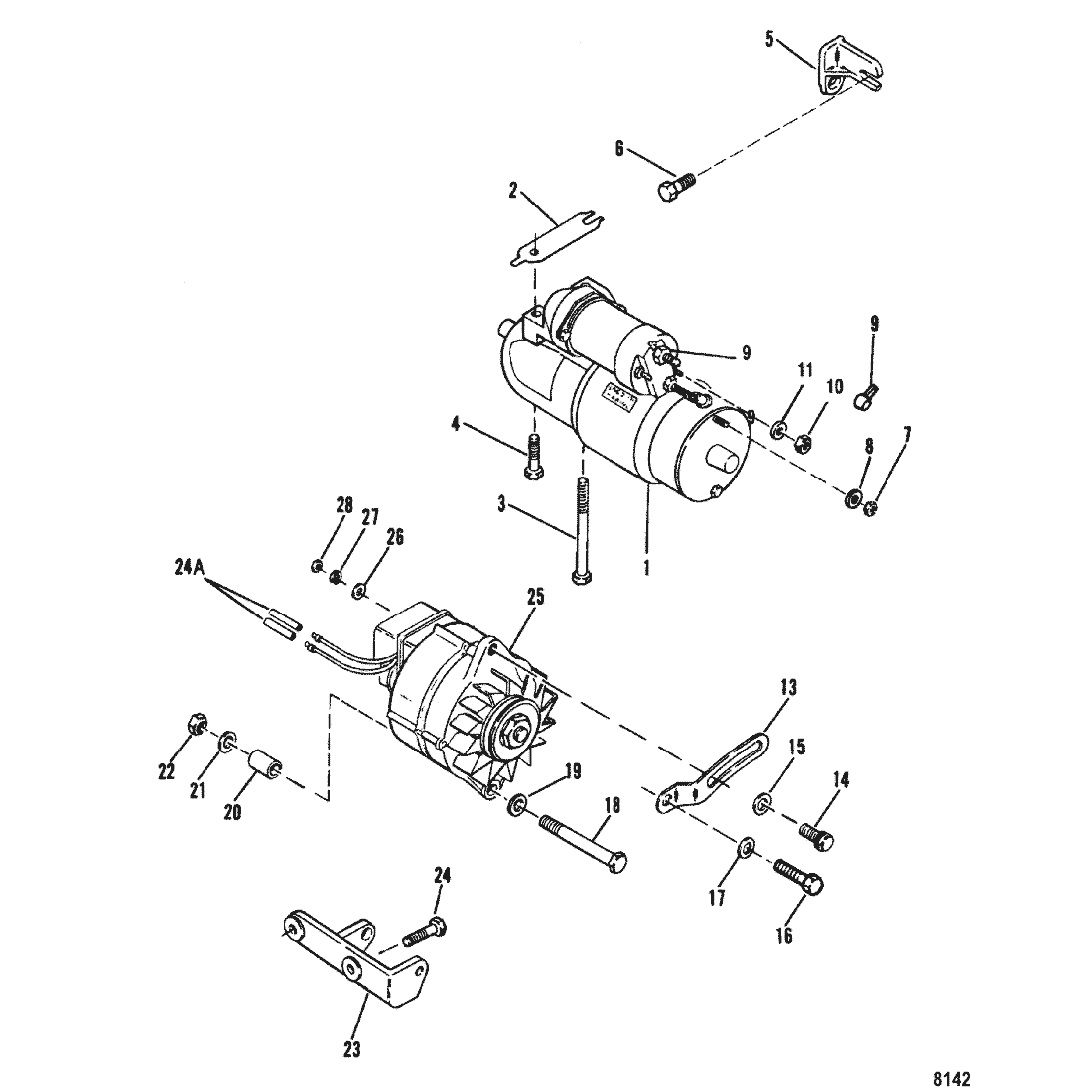

| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 99417A2 | SS |
|
$366.99 | $330.48 | 1 | |
| 2 | 98192 | SHIM | NLA |
|
$0.00 | $0.00 | AR | ||
| 3 | 94435001 | BOLT, (.375-16 x 4.600) | 94435 | SS |
|
$0.00 | $0.00 | 1 | |
| 4 | 8053433 | BOLT, (1.9375) | ACT |
|
$16.19 | $15.80 | 1 | ||
| 5 | 87300T | BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 865982005 | SCREW, (.375-16 x 1.00) | 12244 | SS |
|
$2.59 | $2.53 | 1 | |
| 7 | 8267088 | NUT, (.250-20) | 72008 | SS |
|
$1.70 | $1.66 | 1 | |
| 9 | 15874 | NUT, (M10) | ACT |
|
$2.79 | $2.72 | 1 | ||
| 10 | 400211 | NUT, (M5) Stainless Steel | ACT |
|
$3.59 | $3.50 | 1 | ||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 812429A2 | SS |
|
$366.99 | $330.48 | 1 | |
| 3 | 8053431 | BOLT, (4.6562) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 8053433 | BOLT, (1.9375) | ACT |
|
$16.19 | $15.80 | 1 | ||
| 7 | 8267088 | NUT, (.250-20) | 72008 | SS |
|
$1.70 | $1.66 | 1 | |
| 8 | 97159 | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 15874 | NUT, (M10) | ACT |
|
$2.79 | $2.72 | 1 | ||
| 10 | 400211 | NUT, (M5) Stainless Steel | ACT |
|
$3.59 | $3.50 | 1 | ||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 1 | 8M0090697 | STARTER MOTOR ASSEMBLY | 806963A2 | SS |
|
$366.99 | $330.48 | 1 | |
| 3 | 8053432 | SCREW, (.375-16 x 4.33) | ACT |
|
$17.09 | $16.68 | 1 | ||
| 4 | 8053434 | BOLT, (1.6875) | ACT |
|
$11.89 | $11.61 | 1 | ||
| 9 | 806949 | NUT, (M8-1.5) | ACT |
|
$3.79 | $3.69 | 1 | ||
| 10 | 400211 | NUT, (M5) Stainless Steel | ACT |
|
$3.59 | $3.50 | 1 | ||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 12 | 79695T | BOOT, Insulator - Black | 79695 | SS |
|
$5.49 | $5.37 | 1 | |
| 13 | 58333 | BRACE, Front-Alternator Adjusting | ACT | $41.99 | $41.16 | 1 | |||
| 14 | 29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | ACT | $4.59 | $4.49 | 1 | |||
| 15 | 26168 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 16 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 1 | |||
| 17 | 20553 | WASHER, (.406 x .734 x .063) | ACT | $1.50 | $1.47 | 1 | |||
| 18 | 37626 | SCREW, (.375-24 x 4.250) | ACT | $21.89 | $21.44 | 1 | |||
| 19 | 28105 | WASHER | ACT | $1.80 | $1.76 | 1 | |||
| 20 | 63894 | SPACER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 20553 | WASHER, (.406 x .734 x .063) | ACT | $1.50 | $1.47 | 1 | |||
| 22 | 23161 | NUT, (.375-24) | ACT | $2.89 | $2.82 | 1 | |||
| 23 | 16738A1 | BRACKET | NLA |
|
$179.95 | $169.46 | 1 | ||
| 24 | 865982005 | SCREW, (.375-16 x 1.00) | 12244 | SS |
|
$2.59 | $2.53 | 2 | |
| 24A | 5790811 | SLEEVE, (10.00 Inches Bulk) | ACT | $16.39 | $16.00 | 2 | |||
| 25 | 817119A4 | ALTERNATOR ASSEMBLY, (55 Ampere) | 92497A3 | SS |
|
$351.49 | $316.51 | 1 | |
| 26 | 96457 | WASHER, Phenolic (.27 x .81 x .062) | ACT |
|
$1.70 | $1.66 | 1 | ||
| 27 | 21272 | LOCKWASHER, (.250) | ACT |
|
$1.10 | $1.08 | 1 | ||
| 28 | 64015 | NUT, (.250-20) | ACT |
|
$2.79 | $2.72 | 1 | ||
| 25 | 817119A4 | ALTERNATOR | ACT |
|
$351.49 | $316.51 | 1 | ||
| 26 | 96457 | WASHER, Phenolic (.27 x .81 x .062), Phenolic | ACT |
|
$1.70 | $1.66 | 1 | ||
| 27 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 28 | 79989 | NUT, (#10-24) Stainless Steel | ACT |
|
$2.79 | $2.72 | 1 | ||
| 28 | 94330 | NUT, (.250-20) Brass | ACT |
|
$1.70 | $1.66 | 1 |
