VesselView Mobile

VesselView Mobile - Connects Smartcraft enabled engines to your iOS or Android device via Bluetooth.





You can now have all of the digital data from your SmartCraft engine on your mobile device (iOS or Android) PLUS new features such as mapping, fault code diagnostic information, maintenance reminders, performance summary and more. Be in the know everywhere you go.

BENEFITS:
  • See all the SmartCraft engine parameters: fuel flow, water temperature, oil & water pressures, battery voltage, RPM, etc. (parameters available are specific to each engine family).
  • Get fault code diagnostic information so you know and understand if that fault is something to be addressed when you return back to the dock or it is something more significant.

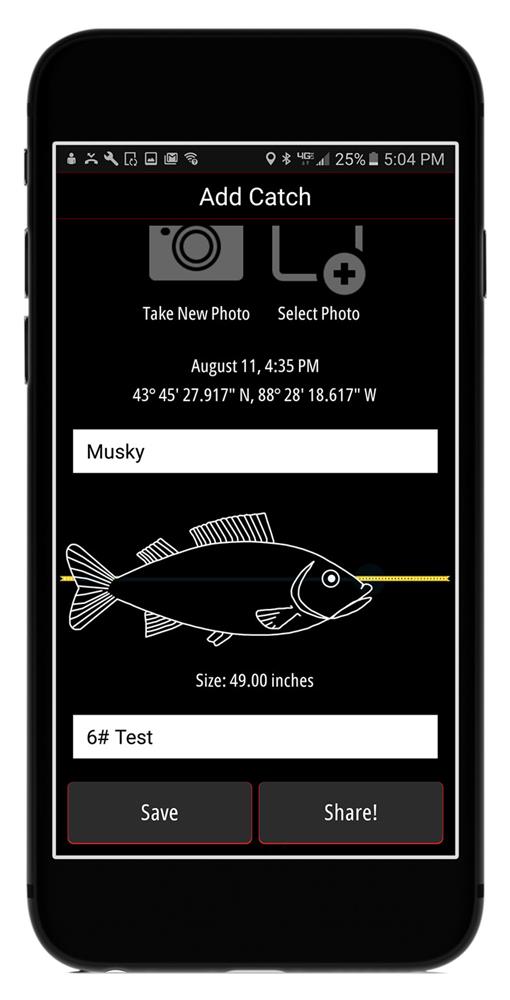

  • Get mapping information for your body of water: Remember where that great restaurant was, fuel, etc. Record a memorable moment on the water, and more
  • Dealer Locator and Primary Dealer selector
  • Checklists associated with your boating lifestyle
  • Maintenance reminders and historical maintenance information logs
  • Web-based account to dive deeper into your connection with your boat – analyze fuel consumption trip to trip and year to year, relive those wonderful family trips or fantastic fishing moments
  • Compatible with most Mercury SmartCraft-capable engines built around 2003 (40 HP and up)
  • Use the Contact Us link with your engine serial number to check compatibility!

BUY VESSELVIEW MOBILE KIT NOW

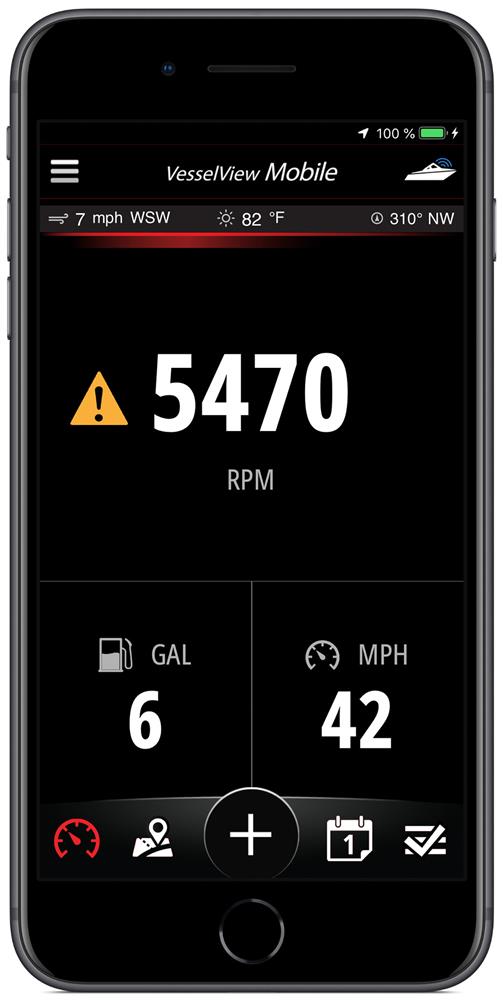

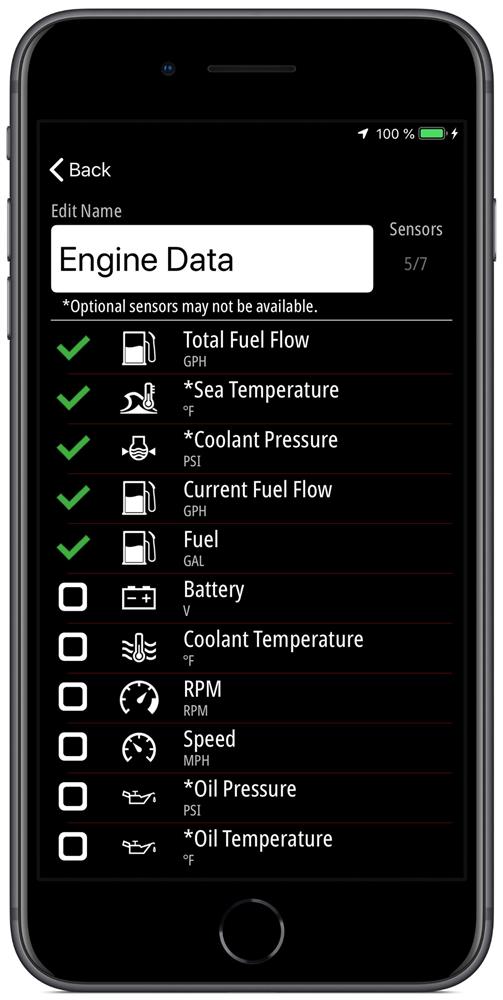

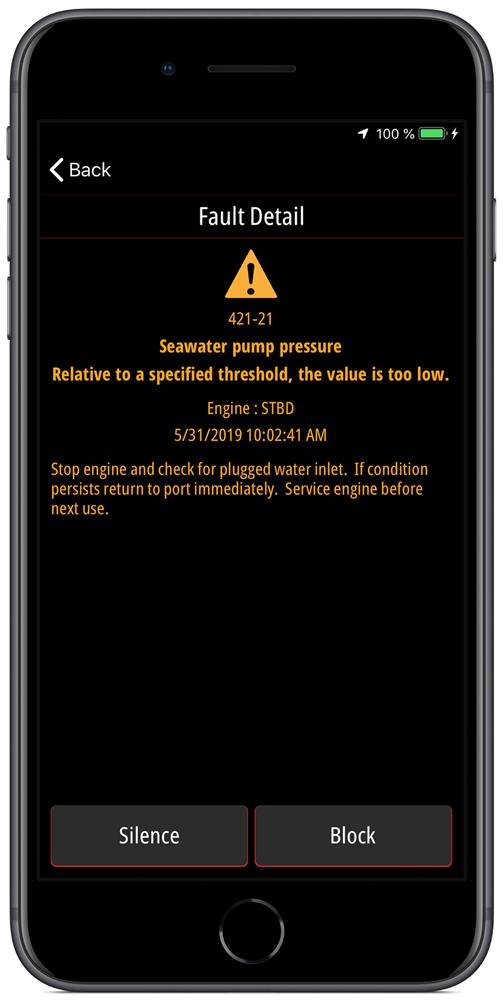

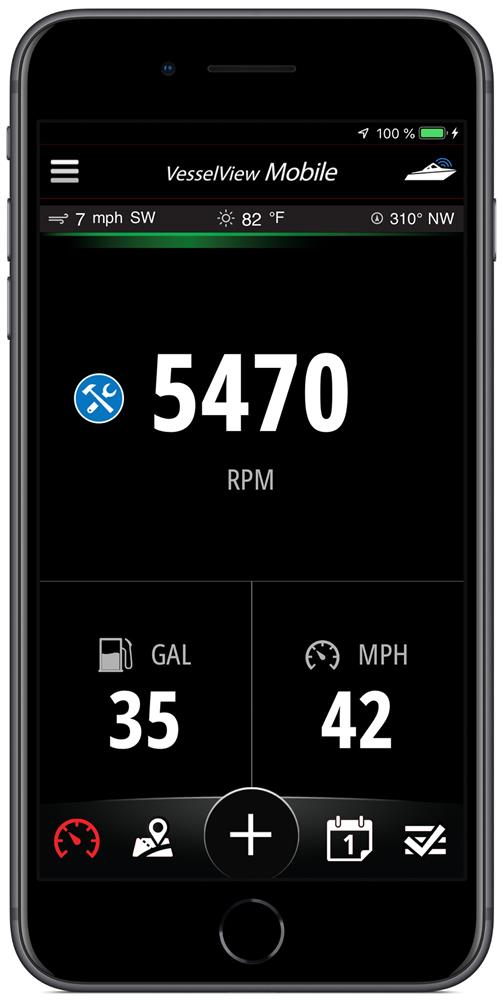

    Engine fault codes on phone   vesselview mobile engine parameters  vesselview mobile maintenance due



Check to see if your engine is compatible with VesselView Mobile.

SUPPORTED MERCURY MARINE ENGINE CONFIGURATIONS ARE BELOW:

OUTBOARD Engine Compatibility
Model Serial Range

30–40 HP (3 cyl) EFI 4 Stroke

 0T409000 and above

40–60 HP (4 cyl) EFI 4 Stroke

 All

75–115 HP EFI 4 Stroke

 1B366823 and above

75–125 HP OptiMax

 All

150 HP 4 Stroke

 All

V6 OptiMax

 0T178500 and above

V6 EFI 2 Stroke

 0T409000 and above

Verado

 All
NOTE: Some 2001 model year engines may require an ECM update.
MERCRUISER Engine Compatibility
Model Serial Range

3.0L MPI

 All

4.3L MPI

 All

4.5L/6.2L - Mercury Built

 All

5.0L/350 MAG/5.7L/377 MAG/6.2L MPI - GM

 0M300000 and above

496/8.1L

 All

8.2L

 All
NOTE: 6.2L Black Scorpion SmartCraft compatible, 0M391777 and above.
MERCURY DIESEL Engine Compatibility
Model Serial Range

2.0L/2.8L I4

 All

3.0L V6 TDI

 All

4.2L I6

 All

4.2L V8 TDI

 0M300000 and above

QSB/QSC/QSM11/QSL Series Cummins

 All
MERCURY RACING Sterndrive Engine Compatibility
Model Serial Range

520/525/540/565 EFI

 All

600/662/700 SCi

 All

850/1025/1075/1200 SCi

 All

QC4v Models

 All
MERCURY RACING OUTBOARD Engine Compatibility
Model Serial Range

2.5 XS

 All

200/225/250/300XS

 All

225/300X Pro Max

 All

350 Sci and 400R Verado

 All










































































































What Mercury engine configurations are supported?  The VesselView Module will work in any of the following configurations:

• For single engine applications that do not have SmartCraft architecture (an available junction box at the helm), you can install the module directly on the engine. This setup does require the 10-pin termination resistor, typically yellow and installed on the engine harness.

• For multi-engine applications that do not have SmartCraft architecture (available junction box under the helm), see your Mercury Marine dealer for assistance with architecture configuration and installation.

• For boats WITH SmartCraft architecture in place, use an open port (remove weather cap) in a junction box or replace your junction box with a higher capacity unit if all ports are already used.


Android® is a registered trademark of Google®, Inc., Bluetooth® is a registered trademark of Bluetooth SIG, Inc., iOS® is a registered trademark of Cisco Systems®, Inc. (used under license by Apple ®, Inc.), SmartCraft® and VesselView® are registered trademarks of Brunswick® Corporation.




Sorry, not found

Memorial Day weekend starts in only 8 shipping days! Get your orders in NOW!



Purchase mercury mercruiser 84 8m0157078 vv mobile kit smartcraft vesselview mobile kit 1 4 engines

Mercury-Mercruiser 84-8M0157078 VesselView Mobile Kit 1-4 Engines

$248.06 $240.63
84-8M0157078 VesselView Mobile Kit
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below. Use the Contact Us form at the bottom of the page for any questions
Genuine OEM Mercury Marine part number 859318T1

Mercury-Mercruiser 859318T1 SmartCraft J-Box Terminator/Resistor 10 Pin

$18.46 $18.12
859318T1 Yellow 10 Pin SmartCraft Terminator/Resistor
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level, product details and order below. Use the Contact Us form at the bottom of the page for any questions
