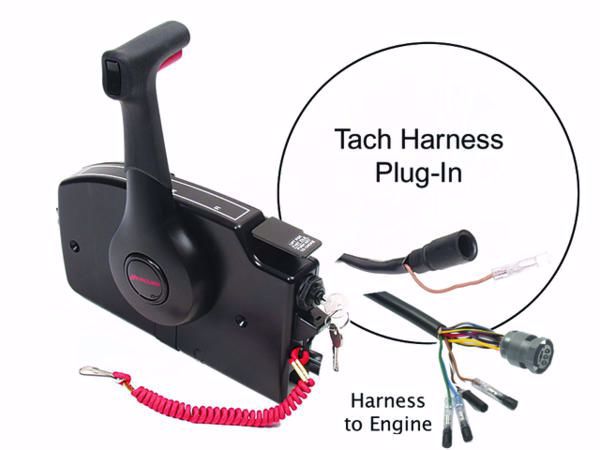

8M0178535 Mechanical Remote Control - Side Mount - Electric Start
This control features a non‑trim handle and a 15 ft. (4.58 M) harness with Amp connector and will direct connect to the engine models below without the use of an Adapter harness.
For model year 2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start and non‑trim.
Model year 2005 and newer 8/9.9 FourStroke Outboards SAE throttle/shift cables must be used.
8/9.9 FourStroke engines generation change above serial number OR192772 and 15/20 FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.
This side mount control can be mounted starboard or port side and is stackable. Offers "push to choke" ignition switch, 8 pin connector wiring harness, lanyard stop switch, separate neutral warm‑up lever and requires Gen I throttle and shift cables. All controls have a 5 pin accessory plug for tachometer and an adjustable throttle friction. These controls are not for use with engines that have counter rotating lower units.
Older engines may require an adapter harness.
Supserseded from part # 881170A12
