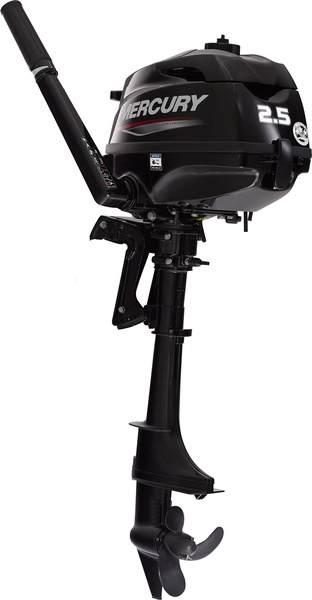

2.5 MH FourStroke Portable Outboard

NEW Mercury 1F02201EK 2.5 HP FourStroke portable, tiller handle, manual start motor. Short (15”/381mm) driveshaft housing. Easily portable at only 54 lbs. See specs below.
Stock status: Not in stock - will be transferred from factory
Manufacturer part number: 1F02201EK
Pickup or normally ships: Available - Next business day
Manufacturer: Mercury Marine
$1,076.25
$929.25
Product Shipping specifications = pounds and inches

New Mercury 2.5 MH FourStroke Portable Outboard Motor

Manual start, short shaft (15”/381 mm) driveshaft housing. Tiller handle steering



HP / kW
  • 2.5 / 1.9
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 5.2 / 85
Full throttle RPM
  • 4500-5500
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87 octane compatible (up to 10% ethanol)
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Over-rev
Starting
  • Manual
Steering
  • Tiller with 360° turning
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 38 lbs / 17 kg
CARB star rating
  • 3
Bore and stroke
  • 2.16 x 1.42" / 55 x 36 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N
Gearcase options
  • Standard
Trim system
  • 4 position
Trim positions
  • 4
Exhaust system
  • Above prop
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Color
  • Phantom Black



New Mercury 2.5 MH FourStroke Portable Outboard Motor

Manual start, short shaft (15”/381 mm) driveshaft housing. Tiller handle steering



HP / kW
  • 2.5 / 1.9
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 5.2 / 85
Full throttle RPM
  • 4500-5500
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87 octane compatible (up to 10% ethanol)
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Over-rev
Starting
  • Manual
Steering
  • Tiller with 360° turning
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 38 lbs / 17 kg
CARB star rating
  • 3
Bore and stroke
  • 2.16 x 1.42" / 55 x 36 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N
Gearcase options
  • Standard
Trim system
  • 4 position
Trim positions
  • 4
Exhaust system
  • Above prop
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Color
  • Phantom Black



Products specifications
Horsepower 2.5
Shaft Length 15
Lower Unit Standard
Controls Tiller handle
Trim Manual Tilt
Starting Manual
*
*
*
*
Products specifications
Horsepower 2.5
Shaft Length 15
Lower Unit Standard
Controls Tiller handle
Trim Manual Tilt
Starting Manual
