| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

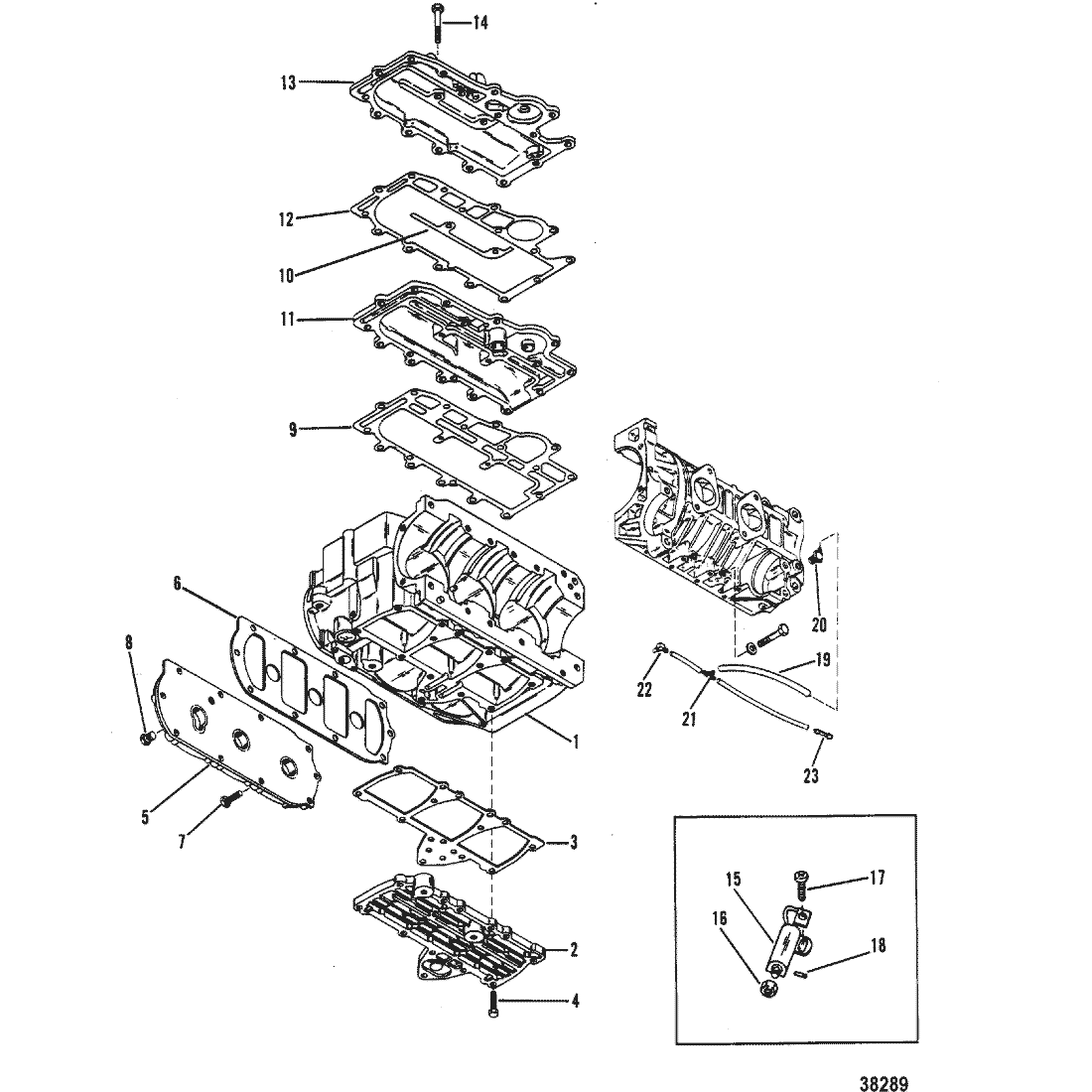

| 1 | 8362A11 | CYLINDER BLOCK ASSEMBLY | 8362A4 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 99523A1 | COVER ASSEMBLY, TRANSFER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 768621 | --GASKET, TRANSFER COVER | 76862 | SS |
|
$9.69 | $9.46 | 1 | |
| 4 | 38837 | SCREW, (.312-18 x 1.12), TRANSFER COVER | ACT | $3.19 | $3.11 | 10 | |||
| 5 | 8364A1 | COVER, CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 437792 | --GASKET, CYLINDER BLOCK COVER | 437791 | SS |
|
$14.59 | $14.24 | 1 | |
| 7 | 8M0214943 | SCREW, CYLINDER BLOCK COVER (1") | 69100 | SS |
|
$1.80 | $1.76 | 4 | |
| 7 | 76596 | SCREW, (.250-20 x 1.250), CYLINDER BLOCK COVER | ACT | $2.49 | $2.43 | 6 | |||
| 8 | 328022 | PLUG, Pipe (.125-27), CYLINDER BLOCK COVER | 32802 | SS |
|
$7.59 | $7.42 | 1 | |
| 9 | 695252 | GASKET, BAFFLE PLATE TO CYLINDER BLOCK | 69525 | SS |
|
$32.59 | $32.00 | 1 | |
| 10 | 703351 | GASKET, BAFFLE PLATE TO COVER | 70335 | SS |
|
$5.09 | $4.98 | 1 | |
| 11 | 69579 | PLATE, BAFFLE - EXHAUST MANIFOLD | ACT | $104.99 | $98.73 | 1 | |||
| 12 | 695242 | GASKET, PLATE TO EXHAUST MANIFOLD COVER | 69524 | SS |
|
$25.79 | $25.29 | 1 | |
| 13 | 78529 | COVER, EXHAUST MANIFOLD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 38837 | SCREW, (.312-18 x 1.12), PLATE AND MANIFOLD COVER | ACT | $3.19 | $3.11 | 1 | |||
| 14 | 74824 | SCREW, (1.25), PLATE AND MANIFOLD COVER (1-1/4") | 53016 | SS |
|
$1.80 | $1.76 | 15 | |
| 14 | 70602 | SCREW, (.250-20 x 2.00), PLATE/MANIFOLD COVER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 15 | 33386A3 | SWITCH ASSEMLBY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 45076 | NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL | ACT | $1.80 | $1.76 | 1 | |||
| 17 | 37655 | SCREW, (#10-32 x .500), MERCURY SWITCH TO CRANKCASE | ACT | $1.80 | $1.76 | 1 | |||
| 18 | 36242 | PIN, Roll, MERCURY SWITCH | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 892024122 | TUBING, (20.00 Feet Bulk), CRANKCASE BLEED | 99130122 | SS |
|
$48.49 | $47.57 | 3 | |
| 20 | 428641 | FITTING, CRANKCASE BLEED | 42864 | SS |
|
$41.49 | $40.75 | 1 | |
| 21 | 59169003 | FITTING, CRANKCASE BLEED HOSE | 59169 | SS |
|
$5.99 | $5.86 | 1 | |
| 22 | 15133 | ELBOW, CRANKCASE (PRESS-IN) | 71191 | SS |
|
$21.19 | $20.79 | 1 | |
| 23 | 428651 | CONNECTOR, ATTENUATOR | 42865 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 88449A32 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
