- For Correct Model Application, Refer to Accessories Guide.
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

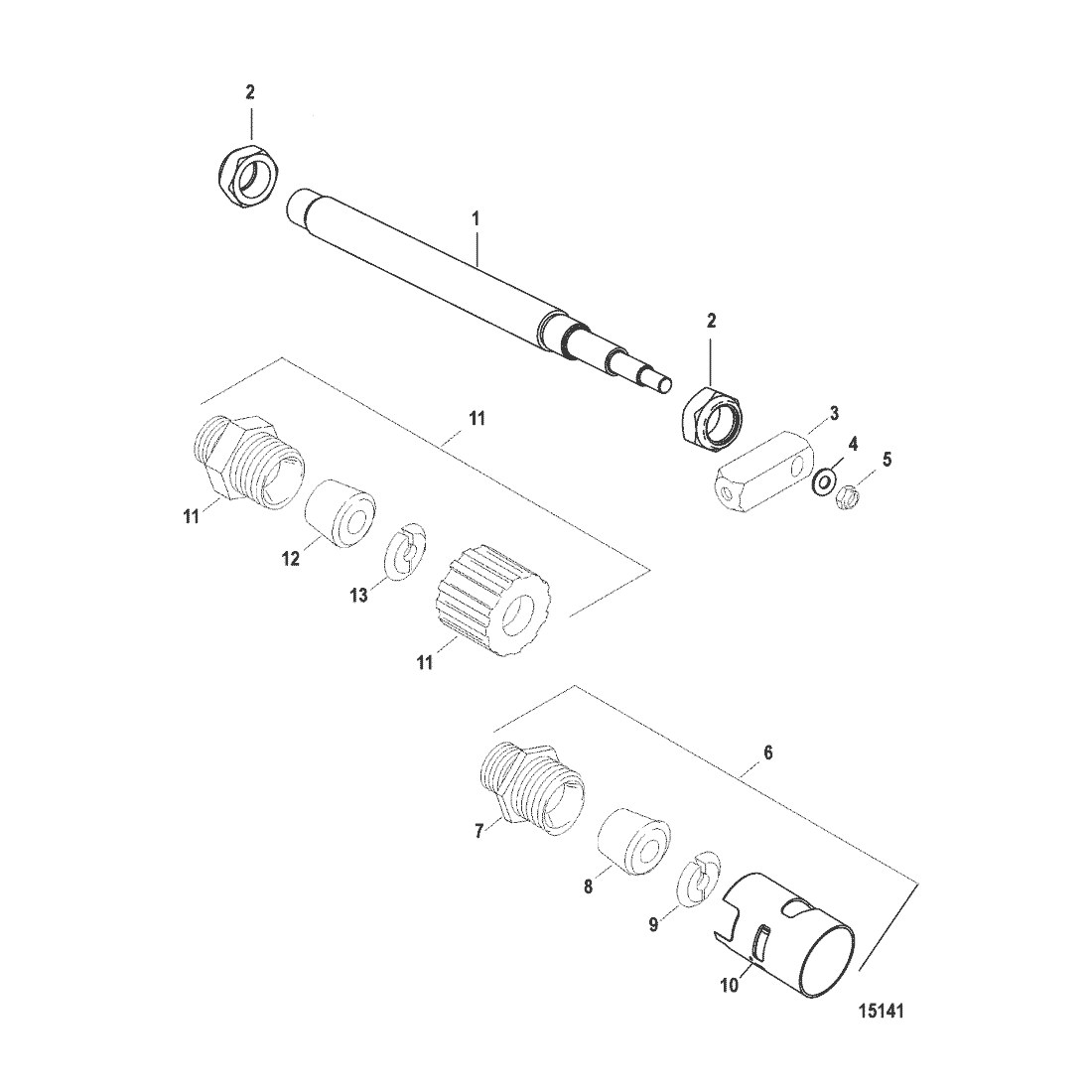

| - | 845532A1 | ACTUATOR KIT (Chrome) | ACT |
 |
$455.09 | $434.88 | 1 | ||
| 1 | 847198 | --PIN, Actuator | ACT | $66.40 | $64.46 | 2 | |||
| 2 | 11-8M0143423 | --NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 4 | |
| 3 | 845154 | --END, Cable | ACT | $17.08 | $16.84 | 2 | |||
| 4 | 12-843486 | --WASHER, (.203 x .438 x .037) Stainless Steel | ACT | $0.65 | $0.64 | 2 | |||
| 5 | 11-8267096 | --NUT, (#10-32) | 34059 | SS/ACT |
|
$3.60 | $3.52 | 2 | |
| 6 | 846991A1 | --GRIP ASSEMBLY, Cable - Stainless Steel | ACT |
|
$222.34 | $212.46 | 2 | ||
| 7 | 846989 | ----BODY, Cable Grip | ACT | $154.05 | $147.22 | 1 | |||
| 8 | 23-845970 | ----BUSHING, Rubber | ACT | $8.96 | $8.84 | 1 | |||
| 9 | 53-845971 | ----RING, Gripper | ACT | $6.70 | $6.61 | 1 | |||
| 10 | 846991A1 | ----CAP, Cable Grip | 846990 | SS/ACT |
|
$222.34 | $212.46 | 1 | |
| - | 845630A1 | ACTUATOR KIT (Plastic) | ACT |
|
$235.33 | $224.88 | 1 | ||
| 1 | 847198 | --PIN, Actuator | ACT | $66.40 | $64.46 | 2 | |||
| 2 | 11-8M0143423 | --NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 4 | |
| 3 | 845154 | --END, Cable | ACT | $17.08 | $16.84 | 2 | |||
| 4 | 12-843486 | --WASHER, (.203 x .438 x .037) Stainless Steel | ACT | $0.65 | $0.64 | 2 | |||
| 5 | 11-8267096 | --NUT, (#10-32) | 34059 | SS/ACT |
|
$3.60 | $3.52 | 2 | |
| 11 | 845629A1 | --GRIP ASSEMBLY, Cable - Plastic | ACT |
|
$40.90 | $40.32 | 2 | ||
| 12 | 23-845970 | ----BUSHING, Rubber | ACT | $8.96 | $8.84 | 1 | |||
| 13 | 53-845971 | ----RING, Gripper | ACT | $6.70 | $6.61 | 1 |
