Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

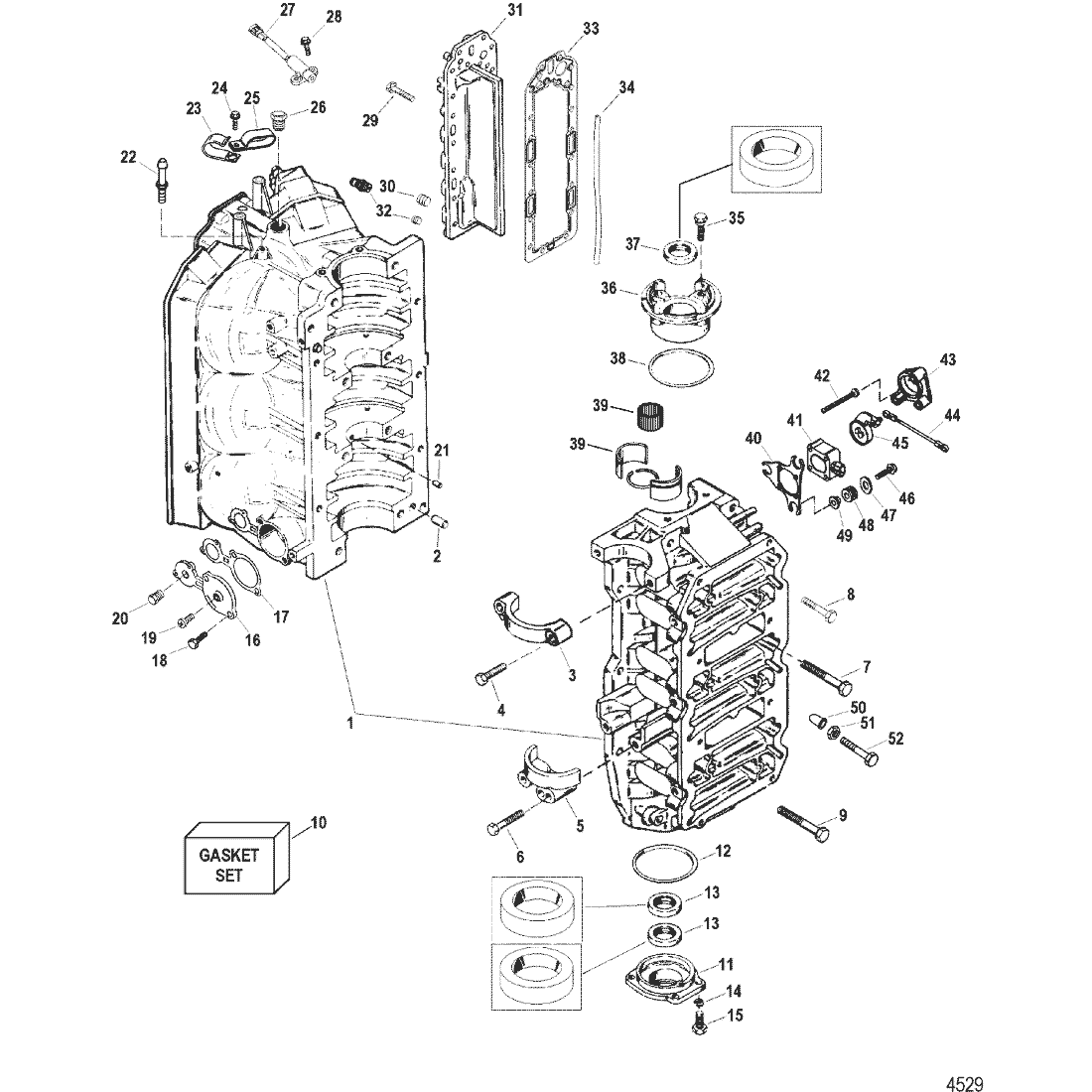

1 858961T30 POWERHEAD ASSEMBLY, Complete 858961A26 SS $0.00 $0.00 1
1 858961T30 POWERHEAD ASSEMBLY, Complete NLA $0.00 $0.00 1
1 858961A28 CYLINDER BLOCK ASSEMBLY NLA $0.00 $0.00 1
2 43044 --PIN, Dowel - Without Hole (.375 x .625), Locating ACT $2.49 $2.43 2
3 8M0111325 --BRACKET, Upper Starter Assembly 8569662 SS $45.99 $45.19 1
4 828213 --SCREW, (.312-18 x 1.500) Hex Flange ACT $1.80 $1.76 2
5 76867 --COVER, Lower Starter Assembly ACT $27.69 $27.17 1
6 828214 --SCREW, (.312-18 x 2.00) Hex Flange ACT $1.80 $1.76 2
7 66717 --SCREW, (.375-16 x 3.250) ACT $5.09 $4.98 1
8 74824 --SCREW, (.312-18 x 1.250) ACT $1.80 $1.76 6
9 66717 --SCREW, (.375-16 x 3.250) ACT $5.09 $4.98 7
10 885214A1 --GASKET/SEAL SET, Powerhead ACT $360.49 $333.54 1
11 7809T1 END CAP ASSEMBLY, Lower ACT $77.99 $73.46 1
12 62700 --O-RING, (3.237 x .103) ACT $3.99 $3.91 1
13 41953 --SEAL, Oil ACT $17.49 $17.19 2
14 26992 LOCKWASHER, (.250) Stainless Steel ACT $1.20 $1.18 4
15 28636 SCREW, (.250-20 x .750) ACT $1.80 $1.76 4
16 8M0039767 COVER 687291 SS $54.99 $51.72 1
17 78690002 GASKET, Cover To Cylinder Block 78690 SS $4.09 $4.00 1
18 28782 SCREW, (.312-18 x .880) Stainless Steel ACT $2.99 $2.92 4
19 358811 SCREW, (#6-32 x .250) ACT $0.90 $0.88 1
20 36382 FITTING, (.250-18 x .62) Brass ACT $5.49 $5.37 1
21 8M0036405 PIN, Dowel - Center Main 67296 SS $4.39 $4.30 2
22 8215832 PIN, Special (1.5 Inches) ACT $17.09 $16.78 1
23 8M0024808 J CLIP, Wire Harness Support 65292 SS $8.19 $8.00 1
24 8248324 SCREW, (M6 x 16) ACT $1.80 $1.76 1
25 28700 CLAMP, Hose Support NLA $0.00 $0.00 1
26 883048 PLUG, (.500-14), Pipe ACT $7.99 $7.81 1
27 8M0082988 SENSOR, Crank Postion 8283582 SS $120.49 $108.64 1
28 40011107 SCREW, (M5 x 16) Stainless Steel ACT $1.80 $1.76 2
29 881190 SCREW, (.312-18 x 1.00) ACT $1.50 $1.47 2
29 8263561 SCREW AND WASHER, (.312-18 x 1.500) ACT $1.90 $1.86 17
29 881892 SCREW, (.312-18 x 1.750) ACT $3.69 $3.59 1
30 8M0204679 FITTING, Pipe - Brass (.750-14), Hex Head 428611 SS $10.99 $10.73 1
31 828343A05 PLATE KIT, Exhaust Divider 828343A4 SS $349.99 $315.45 1
32 328022 --PLUG, Pipe (.125-27) Brass ACT $7.59 $7.42 1
32 881866 FITTING, Straight (.125-27) 859432 SS $7.59 $7.42 1
33 190506 GASKET, Exhaust Divider To Cylinder Block ACT $32.99 $32.33 1
34 814754 SEAL, (12.50 Inches), Exhaust Divider (12.500 Inches) ACT $11.09 $10.83 1
35 881190 SCREW, (.312-18 x 1.00) ACT $1.50 $1.47 4
36 832760T1 END CAP ASSEMBLY, Upper ACT $329.99 $297.42 1
37 41953 --SEAL, Oil ACT $17.49 $17.19 1
38 54029 --O-RING, (2.800 x .103) ACT $4.19 $4.10 1
39 16756A4 --BEARING KIT, Needle Rollers ACT $72.49 $68.28 1
40 8538821 BRACKET, Throttle Position Indicator Mount ACT $25.99 $25.45 1
41 8M6005165 INDICATOR, Throttle Position 83295211 SS $164.99 $148.38 1
42 8508281 SCREW, (#10-32 x 2.00) ACT $2.39 $2.33 3
43 8582261 COVER ACT $25.99 $25.45 1
44 8M0084738 LINK ASSEMBLY, Throttle 878175 SS $21.39 $20.95 1
45 8519371 LEVER, Throttle Position Indicator ACT $21.99 $21.53 1
46 82130025 SCREW, (M6 x 25) ACT $4.09 $4.00 3
47 65567 WASHER, (.265 x .750 x .048) Stainless Steel ACT $2.89 $2.82 3
48 8M0190980 GROMMET 834985 SS $3.89 $3.79 3
49 856954 BUSHING ACT $6.99 $6.83 3
50 26852 CAP, Nylon ACT $3.99 $3.91 1
51 64015 NUT, (.250-20) ACT $2.79 $2.72 1
52 856832 SCREW, (.250-20 x 1.750) ACT $2.39 $2.33 1
