Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

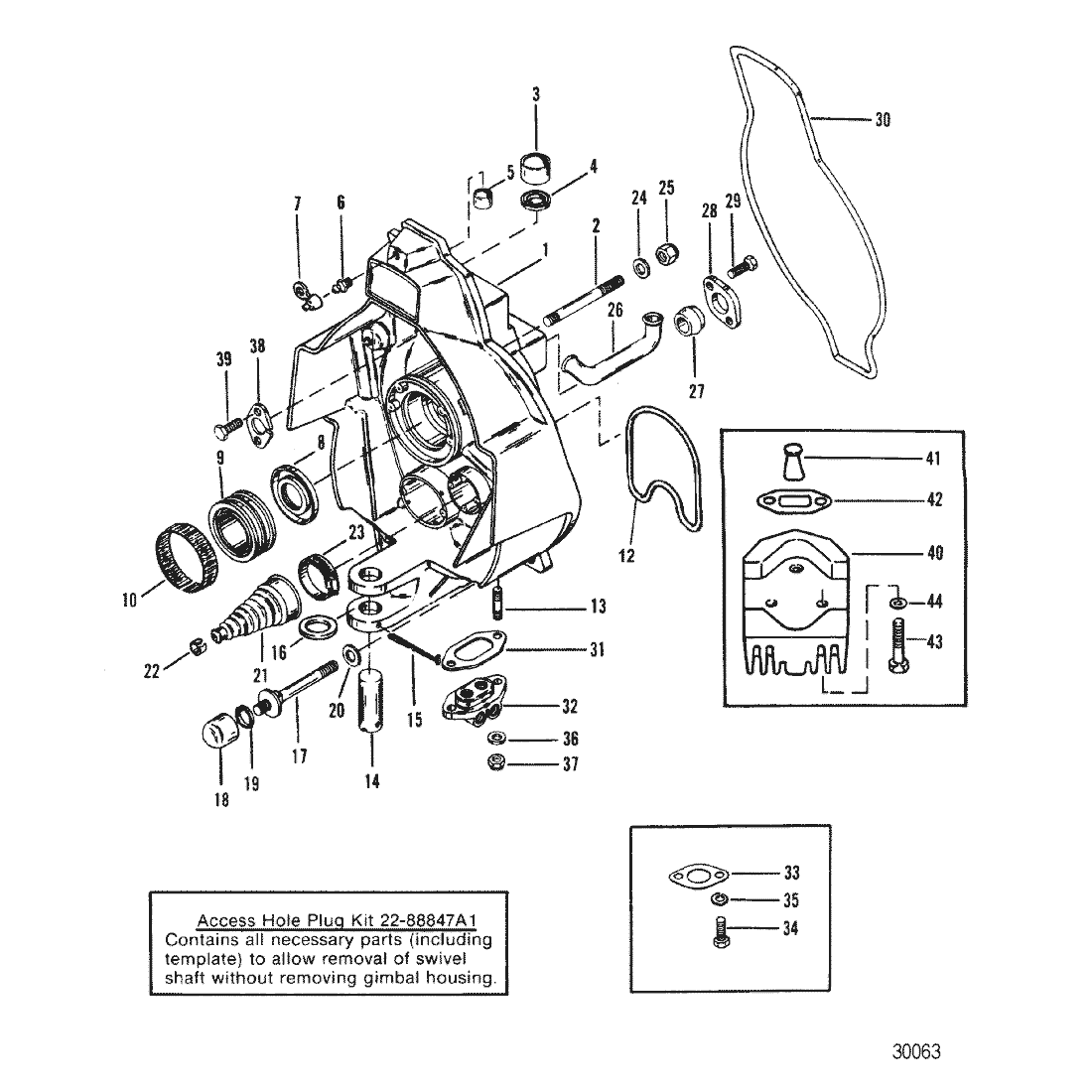

1 8M0163483 GIMBAL HOUSING ASSEMBLY (BLACK) 42260A6 SS $2,078.99 $1,861.68 1
3 983571 --BUSHING, GIMBAL HOUSING (LOWER) ACT $25.49 $24.96 1
4 8M2005029 --SEAL, Oil, LOWER GIMBAL HOUSING BUSHING 416071 NLA $24.99 $24.47 2
5 98356 --BUSHING, GIMBAL HOUSING (UPPER) ACT $17.79 $17.43 1
6 8M0169589 --FITTING, Grease, GIMBAL HOUSING 74036 SS $4.79 $4.69 2
6 8M0204738 --PLUG, (.250-28 x .320) 8M2015913 SS $6.89 $6.73 2
7 77633Q --LUBRICAP, GIMBAL HOUSING GREASE FITTING ACT $6.99 $6.83 2
8 88416 --SEAL, Oil, GIMBAL HOUSING NLA $0.00 $0.00 1
9 879194A02 --BEARING ASSEMBLY, GIMBAL HOUSING 60794A4 SS $138.99 $124.94 1
10 61075 ----TOLERANCE RING, GIMBAL HOUSING BEARING NLA $0.00 $0.00 1
12 41802 --SEAL, Rubber, EXHAUST SEAL ACT $15.99 $15.61 1
13 56766 --STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING ACT $3.69 $3.59 2
14 45212 PIN (LOWER) (STEEL) ACT $0.00 $0.00 1
14 8M0073409 SWIVEL PIN, Lower (ALUMINUM) 99353 SS $59.99 $56.35 1
15 54929 COTTER PIN, LOWER SWIVEL PIN 34212 SS $7.89 $7.71 1
16 32518 WASHER, LOWER SWIVEL PIN ACT $3.79 $3.69 1
17 8M0030655 BOLT ASSEMBLY, ANODIC 55989A8 SS $72.49 $67.96 1
18 55989Q9 --ANODE KIT, BOLT ACT $20.09 $19.72 2
19 56085 --WASHER, ANODIC BOLT ACT $1.20 $1.18 2
20 32620 WASHER, GIMBAL HOUSING BOLT ACT $1.50 $1.47 2
21 74639A2 BELLOWS ASSEMBLY, SHIFT ACTUATING CABLE ACT $34.99 $34.29 1
22 8M0204733 CLAMP, ACTUATING CABLE BELLOWS 38863 SS $7.49 $7.32 1
23 8M0204716 CLAMP, Worm Gear, ACTUATING CABLE BELLOWS 815504320 SS $11.49 $11.22 1
24 34567 WASHER, GIMBAL HOUSING STUD ACT $1.50 $1.47 2
25 8M0204653 NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD 82671015 SS $5.29 $5.17 2
26 8M0171251 TUBE, WATER (5/8 inch I.D. WATER TUBE) 869071 NLA $44.99 $44.12 1
26 8M0171319 TUBE, WATER (METAL) (3/4 inch I.D. WATER TUBE) 41672 SS $34.49 $33.83 1
26 8M0171319 TUBE, Water, WATER (NYLON) (3/4 inch I.D. WATER TUBE) 416721 SS $34.49 $33.83 1
27 28055 BUSHING, RUBBER - WATER TUBE (5/8 inch I.D. WATER TUBE) NLA $0.00 $0.00 1
27 416751 BUSHING, RUBBER - WATER TUBE (3/4 inch I.D. WATER TUBE) ACT $13.99 $13.66 1
28 32517 COVER, WATER TUBE (5/8 inch I.D. WATER TUBE) NLA $0.00 $0.00 1
28 8M0092452 COVER, WATER TUBE (3/4 inch I.D. WATER TUBE) 41673 SS $9.89 $9.66 1
29 28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING ACT $1.80 $1.76 2
30 65533A1 SEAL, GIMBAL HOUSING TO TRANSOM ACT $21.59 $21.20 1
31 988231 GASKET, HYDRAULIC CONNECTOR ACT $3.19 $3.11 1
32 8M0137703 MANIFOLD ASSEMBLY, HYDRAULIC (BLACK) 98825A4 SS $129.99 $117.12 1
33 995061 GASKET, CONNECTOR COVER ACT $2.49 $2.43 1
34 28636 --SCREW, (.250-20 x .750), CONNECTOR COVER ACT $1.80 $1.76 2
35 78968 --LOCKWASHER, Internal (.250), CONNECTOR COVER ACT $1.80 $1.76 2
36 78968 LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR STUD ACT $1.80 $1.76 2
37 8267119 NUT, (.250-28), HYDRAULIC CONNECTOR STUD 13438 SS $2.59 $2.53 2
38 12078 COVER, GIMBAL HOUSING 57322T NLA $13.59 $13.27 1
39 28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING ACT $1.80 $1.76 2
40 821631Q1 PLATE ASSEMBLY, ANODIC ACT $32.89 $32.24 1
41 12077 --SEAL ACT $1.70 $1.66 1
42 995061 --GASKET, ANODIC PLATE ACT $2.49 $2.43 1
43 86885 SCREW, (.250-20 x 1.500) Stainless Steel, ANODIC PLATE ACT $3.19 $3.11 2
44 78968 LOCKWASHER, Internal (.250), ANODIC PLATE SCREW ACT $1.80 $1.76 2
- 8M0176525 CABLE KIT, Shift 19543T1 SS $164.99 $148.68 1
- 803097T1 SEAL KIT, Transom (with Exhaust Bellow) ACT $339.99 $306.21 1
- 803098T1 SEAL KIT, Transom (with Exhaust Tube) ACT $356.99 $321.84 1
