Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
- 3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW 2470A14 SS $0.00 $0.00 1,1,1,
- 2470A15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW NLA $0.00 $0.00 1,,,
- 3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW 2470A21 SS $0.00 $0.00 ,1,1,
- 3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW 3483A3 SS $0.00 $0.00 ,,,1
- 3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW 3483A4 SS $0.00 $0.00 ,,,1
- 3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW NLA $0.00 $0.00 ,,,1
- 3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW NLA $0.00 $0.00 ,,,1

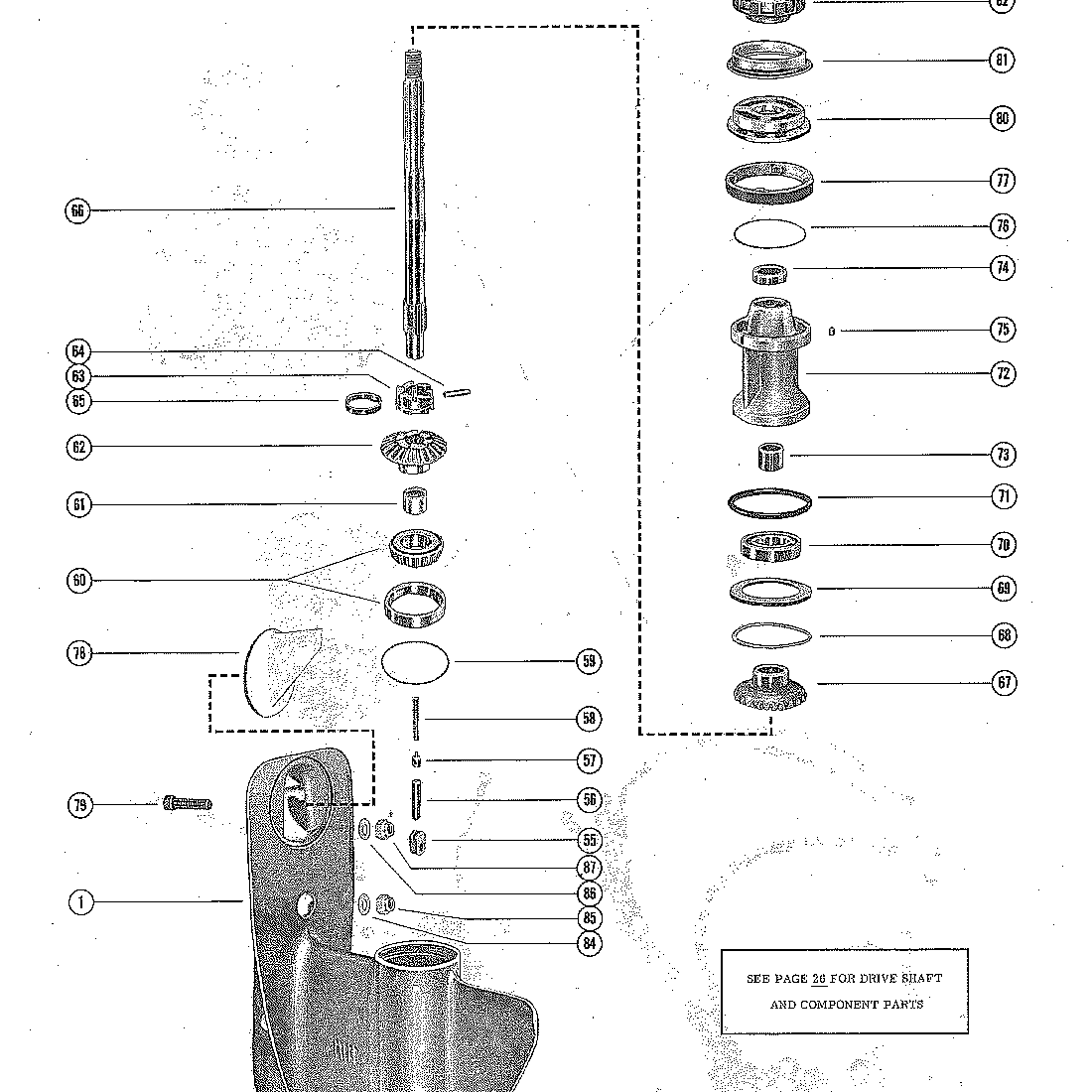

1 2470A16 --GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN NLA $0.00 $0.00 1,1,1,
1 3483A1 --GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN NLA $0.00 $0.00 ,,,1
1 3586A1 --GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN NLA $0.00 $0.00 ,,,1
55 760394 --CAM, SHIFT 36288 SS $38.49 $37.70 1,1,1,1
56 38441 --FOLLOWER, CAM ACT $56.99 $53.60 1,1,1,1
57 20843 --SLIDE, CROSS PIN ACT $24.39 $23.90 1,1,1,1
58 39845 --SPRING, COMPRESSION-CAM FOLLOWER NLA $0.00 $0.00 1,1,1,1
59 31154A1 --SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT NLA $0.00 $0.00 AR,AR,AR,A
59 38374A1 --SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL NLA $0.00 $0.00 1,,,
59 38374A1 --SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL NLA $0.00 $0.00 ,,,AR
60 31215A1 --TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT) NLA $0.00 $0.00 1,1,1,1
60 38356A1 --TAPERED ROLLER BEARING ASSEMBLY (SPIRAL) ACT $95.49 $89.94 ,,,1
61 20249 --BEARING, ROLLER-FORWARD GEAR ACT $35.99 $35.27 1,1,1,1
62 39651A2 --FORWARD GEAR ASSEMBLY (STRAIGHT) 39651 SS $0.00 $0.00 1,1,1,1
62 46376A2 --FORWARD GEAR ASSEMBLY (SPIRAL) 46376 SS $0.00 $0.00 ,,,1
63 92911T --RATCHET, SLIDING CLUTCH 47586 SS $155.49 $140.04 1,1,1,1
64 8M0020942 --PIN, CROSS-RATCHET TO PROPELLER SHAFT 38113 SS $4.49 $4.39 1,1,1,1
65 38114 --SPRING, RETAINING-CROSS PIN ACT $4.49 $4.39 1,1,1,1
66 38127 --SHAFT, PROPELLER NLA $0.00 $0.00 1,1,1,1
67 39652 --REVERSE GEAR ASSEMBLY (STRAIGHT) NLA $0.00 $0.00 1,1,1,1
67 46375 --REVERSE GEAR ASSEMBLY (SPIRAL) NLA $0.00 $0.00 ,,,1
68 20927A1 --SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10) NLA $0.00 $0.00 AR,AR,AR,A
69 32004 --WASHER, THRUST-REVERSE GEAR NLA $0.00 $0.00 1,1,1,1
70 20839T --BEARING, BALL-REVERSE GEAR 20839 SS $79.99 $75.26 1,1,1,1
71 31986 --"O" RING, BEARING CARRIER ACT $4.59 $4.49 1,1,1,1
72 53014T1 --BEARING CARRIER ASSEMBLY 38130A1 SS $0.00 $0.00 1,1,1,
72 53014T1 --BEARING CARRIER ASSEMBLY 53014A1 SS $0.00 $0.00 ,,,1
73 20249 ----BEARING, ROLLER-BEARING CARRIER ACT $35.99 $35.27 1,1,1,1
74 90562 ----OIL SEAL, BEARING CARRIER 23300 SS $18.89 $18.50 1,1,1,1
74 23517 ----OIL SEAL, BEARING CARRIER NLA $0.00 $0.00 1,1,1,1
75 30281 --KEY, LOCATING-BEARING CARRIER ACT $2.99 $2.92 1,1,1,1
76 31993 --WASHER, GEAR HOUSING COVER NLA $0.00 $0.00 1,1,1,
77 87763 --COVER, GEAR HOUSING 32014 SS $11.79 $11.51 1,1,1,
76 53012 --TAB WASHER, GEAR HOUSING COVER ACT $16.69 $16.37 ,,,1
77 87763 --COVER, GEAR HOUSING 53013 SS $11.79 $11.51 ,,,1
78 31640Q4 --TRIM TAB ASSEMBLY, GEAR HOUSING 31640A1 SS $18.69 $18.33 1,1,1,1
79 32470 --SCREW, TRIM TAB TO GEAR HOUSING 47580 SS $4.19 $4.10 1,1,1,1
80 38859A1 THRUST HUB AND WASHER ASSEMBLY ACT $34.85 $34.22 1,1,1,1
81 31992 --WASHER, CUPPED-THRUST HUB ACT $7.59 $7.42 1,1,1,1
82 32007 WASHER, SPLINED-PROPELLER SHAFT NLA $0.00 $0.00 1,1,1,1
83 82671120 NUT, PROPELLER 31990 SS $13.66 $13.41 1,1,1,1
84 45176 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16") ACT $1.50 $1.47 1,1,1,1
85 8M0204653 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16") 34933 SS $5.29 $5.17 1,1,1,1
86 8M0214963 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8") 45175 SS $2.59 $2.53 1,1,1,1
87 8M0204726 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8") 34863 SS $1.80 $1.76 1,1,1,1
