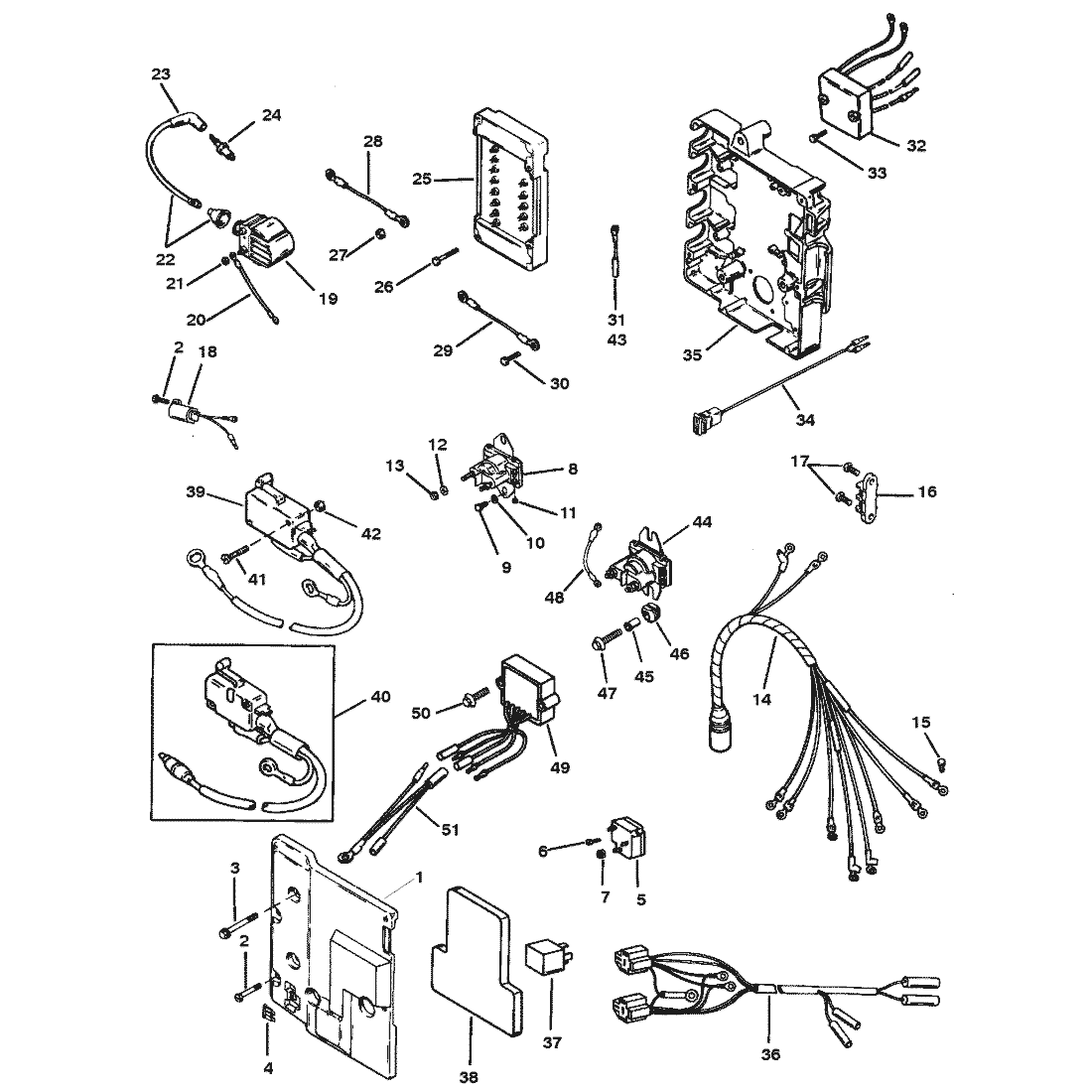

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 19106 | COVER-ELECTRICAL BOX | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 10-418051 | SCREW-MERCURY SWITCH AND COVER | 41805 | SS/ACT |
|
$2.70 | $2.64 | 6 | |
| 3 | 10-19639 | SCREW-COVER AND BOX TO ENGINE | SS |
|
$0.00 | $0.00 | 3 | ||
| 4 | 88-812619 | FUSE | ACT |
|
$4.50 | $4.39 | 2 | ||
| 5 | 8M0058226 | RECTIFIER | 816770 | SS/ACT |
|
$87.42 | $84.08 | 1 | |
| 6 | 10-418051 | SCREW-RECTIFIER | 41805 | SS/ACT |
|
$2.70 | $2.64 | 2 | |
| 7 | 11-45076 | NUT-RECTIFIER TERMINAL | ACT |
|
$1.70 | $1.66 | 3 | ||
| 8 | 89-8M0185149 | STARTER SOLENOID | 96054 | SS/ACT |
|
$37.33 | $36.66 | 1 | |
| 9 | 10-41508 | SCREW-SOLENOID | ACT |
|
$3.70 | $3.61 | 2 | ||
| 10 | 13-26992 | WASHER-STARTER SOLENOID SCREW | ACT |
|
$1.20 | $1.18 | 2 | ||
| 11 | 11-26419 | NUT-SOLENOID TERMINAL (#8-32) | ACT |
|
$1.60 | $1.57 | 2 | ||
| 12 | 13-26992 | LOCKWASHER-SOLENOID TERMINAL | ACT |
|
$1.20 | $1.18 | 2 | ||
| 13 | 11-64015 | NUT-SOLENOID TERMINAL (1/4-20) | ACT |
|
$2.70 | $2.64 | 2 | ||
| 14 | 84-18672A2 | WIRING HARNESS (USE WITH REF. #18) | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 84-18672A6 | HARNESS (GRAY LEAD HAS RING TERMINAL) | ACT |
|
$111.50 | $105.00 | 1 | ||
| 14 | 84-18672A8 | HARNESS (GRAY LEAD HAS BULLET CONNECTOR) | ACT |
|
$508.50 | $478.40 | 1 | ||
| - | 84-88807A14 | CABLE (RING/MALE CONNECTOR) | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 84-88807A15 | CABLE (RING/FEMALE CONNECTOR) | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 10-878608 | SCREW-WIRING HARNESS LEAD | 812832 | SS/ACT |
|
$1.60 | $1.57 | 1 | |
| 16 | 86-638131 | TERMINAL BLOCK | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 10-418051 | SCREW-TERMINAL BLOCK (5/8 IN.) | 41805 | SS/ACT |
|
$2.70 | $2.64 | 2 | |
| 17 | 10-62568 | SCREW-TERMINAL BLOCK (3/8 IN.) | ACT |
|
$1.10 | $1.08 | 2 | ||
| 18 | 16731T01 | MERCURY SWITCH | 16731A1 | SS/ACT |
|
$80.67 | $77.59 | 1 | |
| 19 | 339-832757A4 | IGNITION COIL ASSEMBLY | 7370A13 | SS/ACT |
|
$116.75 | $109.95 | 4 | |
| 20 | 84-60466A19 | GROUND WIRE-COIL TO SWITCH BOX | SS |
|
$0.00 | $0.00 | 4 | ||
| 21 | 11-45076 | NUT-IGNITION COIL TERMINALS | ACT | $1.70 | $1.66 | 8 | |||
| 22 | 84-813715A12 | LEAD ASSEMBLY-SPARK PLUG | ACT | $74.25 | $71.42 | 1 | |||
| 23 | 85-63709A1 | PROTECTOR ASSEMBLY | ACT | $7.90 | $7.71 | 4 | |||
| 24 | 33-896329833 | SPARK PLUG | 97182 | SS/ACT |
|
$13.90 | $13.56 | 4 | |
| 24 | 33-896329898 | SPARK PLUG | ACT |
|
$18.90 | $18.43 | 4 | ||
| 25 | 332-5772A7 | SWITCH BOX ASSEMBLY | 5772A5 | SS/ACT |
|
$443.64 | $443.49 | 1 | |
| 26 | 10-812987 | SCREW-SWITCH BOX | ACT | $9.20 | $8.98 | 4 | |||
| 27 | 11-45076 | NUT-SWITCH BOX TERMINALS | ACT | $1.70 | $1.66 | 13 | |||
| 28 | 84-88818A1 | CABLE (GREEN) | ACT | $3.90 | $3.81 | 1 | |||
| 28 | 84-88819A1 | CABLE (GREEN/WHITE) | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 84-88820A1 | CABLE (GREEN/BLACK) | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 84-88821A1 | CABLE (GREEN/RED) | SS |
|
$0.00 | $0.00 | 1 | ||
| 29 | 84-88807A30 | CABLE (BLACK) | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 10-878608 | SCREW | 812832 | SS/ACT |
|
$1.60 | $1.57 | 1 | |
| 31 | 84-813060A1 | CABLE | SS |
|
$0.00 | $0.00 | 1 | ||
| 32 | 14857A16 | OIL WARNING MODULE | 14857A10 | SS/ACT |
|
$188.17 | $177.20 | 1 | |
| 33 | 10-812987 | SCREW-OIL WARNING MODULE | ACT |
|
$9.20 | $8.98 | 2 | ||
| 34 | 88-19637 | SOCKET-FUSE | ACT |
|
$37.58 | $36.91 | 1 | ||
| 35 | 18758T1 | ELECTRICAL BOX | SS |
|
$0.00 | $0.00 | 1 | ||
| 36 | 84-18895A1 | TRIM HARNESS | ACT |
|
$93.25 | $89.69 | 1 | ||
| 37 | 87-19761 | RELAY SWITCH | ACT |
|
$68.33 | $65.73 | 2 | ||
| 38 | 812850 | SUPPORT-RELAY | ACT |
|
$9.60 | $9.37 | 1 | ||
| 39 | 87-88890A2 | SWITCH ASSEMBLY | ACT |
|
$97.58 | $93.86 | 1 | ||
| 40 | 87-74605A8 | SWITCH ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 41 | 10-90342 | SCREW | SS |
|
$0.00 | $0.00 | 2 | ||
| 42 | 11-24832 | NUT | SS |
|
$0.00 | $0.00 | 2 | ||
| 43 | 84-11149A1 | CABLE | ACT |
|
$4.57 | $4.49 | 1 | ||
| 44 | 89-818999A2 | SOLENOID | ACT |
|
$62.67 | $60.28 | 1 | ||
| 45 | 23-818968 | --BUSHING | ACT |
|
$2.80 | $2.74 | 2 | ||
| 46 | 25-818967 | --GROMMET | ACT |
|
$3.10 | $3.03 | 2 | ||
| 47 | 10-28667 | SCREW (1 IN.) | ACT |
|
$1.40 | $1.37 | 2 | ||
| 48 | 84-88439A11 | CABLE (BLACK) | SS |
|
$0.00 | $0.00 | 1 | ||
| 49 | 8M0084173 | VOLTAGE REGULATOR | 815279T | SS/ACT |
|
$274.58 | $258.58 | 1 | |
| 50 | 10-822970 | SCREW | ACT |
|
$1.70 | $1.66 | 2 | ||
| 51 | 84-813524A2 | CABLE | ACT |
|
$24.50 | $24.06 | 1 |
