| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

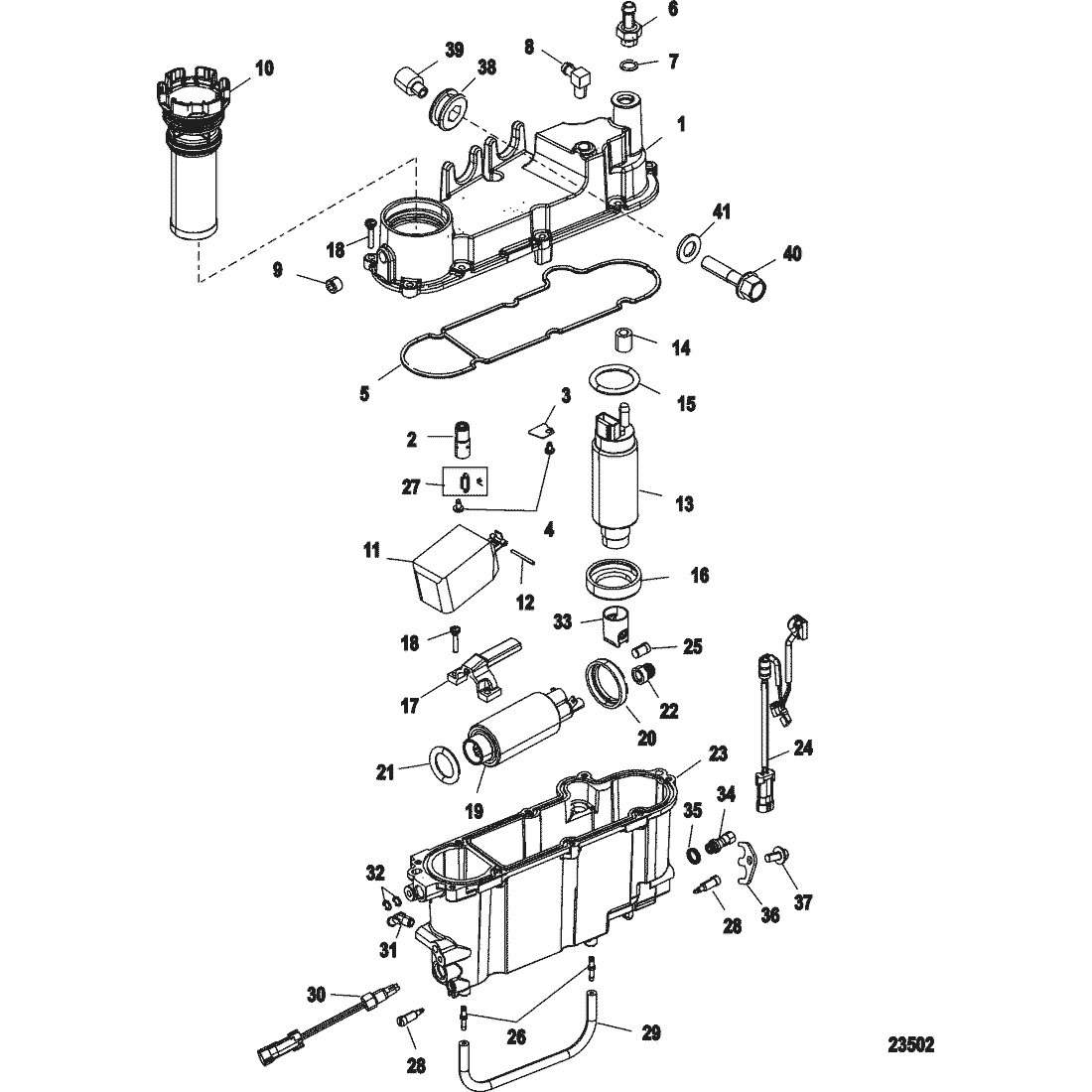

| - | 880133T12 | VAPOR SEPARATOR ASSEMBLY | ACT |
 |
$1,557.14 | $1,427.47 | 1 | ||
| 1 | 889317T1 | --COVER KIT | ACT |
|
$359.43 | $343.56 | 1 | ||
| 2 | NSS | ----NOT SOLD SEPARATE, Seat |
|
$0.00 | $0.00 | 1 | |||
| 3 | 889318001 | ----PLATE, Baffle | ACT | $28.00 | $27.50 | 1 | |||
| 4 | 10-883223 | ----SCREW, (M6 x 16) | ACT | $5.00 | $4.88 | 2 | |||
| 5 | 27-889319 | ----GASKET | ACT | $42.83 | $42.06 | 1 | |||
| 6 | 22-883556 | --FITTING | ACT | $24.00 | $23.57 | 1 | |||
| 7 | 25-8M0062785 | --O-RING | 883209 | SS/ACT |
|
$5.90 | $5.76 | 1 | |
| 8 | 22-889329 | --FITTING | ACT | $4.90 | $4.78 | 1 | |||
| 9 | 19-883208 | --PLUG | ACT | $5.50 | $5.37 | 1 | |||
| 10 | 35-8M0122423 | --FILTER, Fuel | 8M0060041 | SS/ACT |
|
$40.08 | $40.99 | 1 | |
| 11 | 889320A1 | --FLOAT KIT | ACT |
|
$126.50 | $119.13 | 1 | ||
| 12 | F10064 | ----SHAFT | ACT | $4.40 | $4.30 | 1 | |||
| 13 | 888725T02 | --PUMP ASSEMBLY, Fuel - High Pressure | ACT |
|
$543.57 | $511.40 | 1 | ||
| 14 | 8M6000589 | ----SLEEVE | ACT | $22.58 | $22.18 | 1 | |||
| 15 | 25-8893162 | ----O-RING | ACT |
|
$6.80 | $6.64 | 1 | ||
| 16 | 26-889321 | ----SEAL | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 889328 | --RETAINER | ACT | $9.00 | $8.78 | 1 | |||
| 18 | 1395-9643 | --SCREW | ACT | $4.80 | $4.69 | 11 | |||
| 19 | 888733T02 | --PUMP ASSEMBLY, Boost | ACT |
|
$444.29 | $444.29 | 1 | ||
| 20 | 25-889322 | ----GROMMET | ACT | $9.50 | $9.27 | 1 | |||
| 21 | 25-889316 | ----O-RING | ACT |
|
$5.20 | $5.08 | 1 | ||
| 22 | 26-8M6001413 | ----SEAL | 889323 | SS/ACT |
|
$12.20 | $11.90 | 1 | |
| 23 | 889324T03 | --BOWL KIT | ACT |
|
$962.07 | $905.12 | 1 | ||
| 24 | 84-889325A02 | ----WIRE | ACT | $321.50 | $302.76 | 1 | |||
| 25 | NSS | ----NOT SOLD SEPARATE, Check Valve |
|
$0.00 | $0.00 | 1 | |||
| 26 | 22-855424011 | ----FITTING | ACT | $14.40 | $14.05 | 2 | |||
| 27 | 889326A1 | --VALVE KIT, Inlet | ACT | $37.00 | $36.34 | 1 | |||
| 28 | 10-889327002 | --SCREW, Drain | ACT | $15.90 | $15.51 | 2 | |||
| 29 | 32-883545002 | --HOSE | ACT | $14.80 | $14.44 | 1 | |||
| 30 | 8M0214989 | --SENSOR ASSEMBLY, Fuel and Water | ACT | $48.33 | $47.46 | 1 | |||
| 31 | 22-782792 | --FITTING, Elbow 45 Degree (1.25) | ACT |
|
$6.80 | $6.64 | 1 | ||
| 32 | 25-627021 | ----O-RING, (.301 x .070) | ACT |
|
$1.60 | $1.57 | 2 | ||
| 33 | 889430 | --INSERT | ACT | $6.50 | $6.34 | 1 | |||
| 34 | 884820 | SHRADER VALVE | ACT |
|
$17.33 | $17.02 | 1 | ||
| 35 | 25-891778 | --O-RING | ACT | $6.20 | $6.05 | 1 | |||
| 36 | 54-884819 | CLIP | ACT | $6.50 | $6.34 | 1 | |||
| 37 | 10-40011126 | SCREW, (M6 x 13) Stainless Steel | ACT | $3.60 | $3.52 | 1 | |||
| 38 | 25-855362001 | GROMMET | ACT | $3.10 | $3.03 | 3 | |||
| 39 | 23-883050 | SPACER | ACT | $16.20 | $15.80 | 3 | |||
| 40 | 10-81893460 | SCREW, (M8 x 60) | ACT | $5.20 | $5.08 | 3 | |||
| 41 | 12-4002318 | WASHER | ACT | $2.90 | $2.83 | 3 | |||
| - | 25-889316A1 | O-RING KIT, Vapor Seperator | ACT | $23.33 | $22.92 | 1 |
